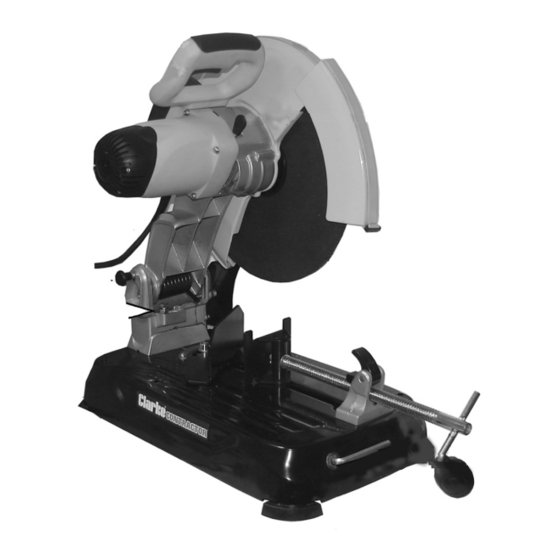

- Page 1 ABRASIVE CUT-OFF SAW MODEL NO: CON14 PART NO: 6470168 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0118 -ISS 1...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Abrasive Cut-Off Saw which is suitable for cutting ferrous metals compatible with the type of abrasive wheel fitted. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS TO YOUR SAW. 1) WORK AREA SAFETY a. - Page 4 under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, gloves, non-skid safety shoes, hard hat, protective apron and hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 5: Additional Warnings For Cut-Off Saws
Never use a toothed saw blade in a machine designed to use a cutting disc. Metal cutting & masonry cutting discs are available from your Clarke dealer. NEVER cut magnesium, wood, or non-ferrous metals. 11. Do not perform cutting in explosive atmospheres and environments where sparks could cause fire or explosion. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. -
Page 7: Unpacking And Assembly
Hex Wrench 8 mm Unpack the machine carefully and ensure that all items are accounted for according to the above list. In the event of any deficiencies contact your Clarke dealer immediately. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: Before Cutting
BEFORE CUTTING LOCKING THE ARM To unlock the saw and raise the motor arm. 1. Push down on the handle. 2. Pull the locking pin out slightly to unlock the motor arm. 3. Release the pressure on the handle. • The motor arm will then raise into position. -
Page 9: Bevel Cutting
4. A long workpiece must be supported by a block that is level with the top of the base. The cut-off end should be free to fall downward to avoid binding against the cutting disc. BEVEL CUTTING The vice fence may be adjusted up to 45°... - Page 10 Take care to keep the ventilation openings clear when working in dusty conditions. Always disconnect the machine from the power supply before cleaning the openings using a soft brush if necessary. Refer to your CLARKE dealer if internal maintenance is required.
- Page 11 CHANGING THE CUTTING DISC Replacement 355 mm cutting discs part no: 6470800 (for metal) are available from your Clarke dealer. Discs for cutting stone are part no: 6470760. IMPORTANT: Ensure the disc is rated above the rated speed of the machine.
-
Page 12: Specifications
Store in a dry area. When selecting racks, bins, boxes or drawers for storage consider the size and type of cutting discs to be stored: for example, lay thin bonded cutting discs flat and support larger cutting discs in racks. Always follow the manufacturer's instructions. -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List And Diagram
PARTS LIST & DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 Bolt M8x35 Nameplate Rotor Rear Guard Replacement 350mm cutting discs part No: 6470800 (for metal) are available from your Clarke dealer. Discs for cutting stone are part No: 6470760. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
