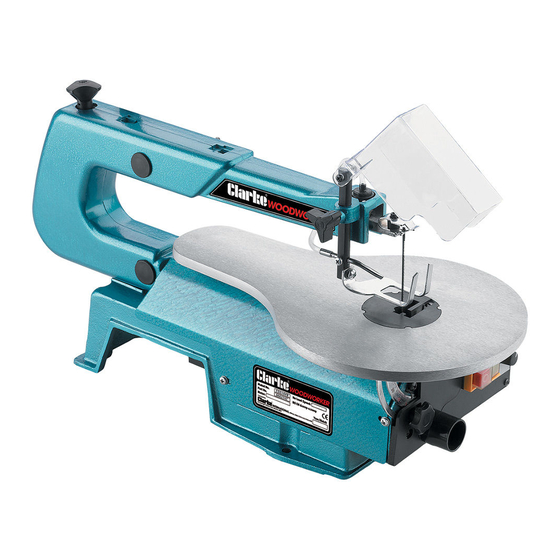

- Page 1 VARIABLE SPEED SCROLL SAW MODEL NO: CSS16VB PART NO: 6462147 OPERATION & MAINTENANCE INSTRUCTIONS LS0216...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE Variable Speed Scroll Saw. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS 1. Keep work area clear - Cluttered areas and benches invite injuries. 2. Consider work area environment • Do not expose tools to rain. • Do not use tools in damp or wet locations. • Keep work area well lit. •... - Page 4 14. Maintain tools with care • Keep cutting tools sharp and clean for better and safer performance. • Follow instruction for lubricating and changing accessories. • Inspect tool cords periodically and if damaged have them repaired by an authorized service facility. •...
-
Page 5: Scroll Saw Safety Instructions
18. Be sure to use the correct blade size and type. 19. Use ONLY approved replacement saw blades. Contact your local CLARKE dealer for advice. The use of inferior blades may increase the risk of injury. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 7 OVERVIEW DESCRIPTION DESCRIPTION Blade guard Dust extraction outlet Top blade holder Table tilt lock knob Workpiece pressure plate Angle adjustment scale Sawdust blower nozzle Saw table Blade Blade tension knob Table insert Hose (sawdust blower) Blade speed regulator Pinless Blade Adaptor On/Off switch Parts &...
-
Page 8: Mounting The Scroll Saw
13 mm (maximum) is fixed between the workbench and scroll saw to help minimise vibrations and noise. This mat is not supplied. • Suitable rubber matting of various thicknesses is available from your Clarke dealer. NOTE: Do not over-tighten the screws. Leave enough give for the rubber mat to absorb any vibration. -
Page 9: Before Connecting To The Electrical Supply
BEFORE CONNECTING TO THE ELECTRICAL SUPPLY CHOOSING THE RIGHT BLADE NOTE: As a rule, select narrow blades for intricate curve cutting and wide blades for straight and large curve cutting. Scroll saw blades wear out and must be replaced frequently for optimum cutting results. -
Page 10: Blade Tension
3. Place the blade and adaptors into the gauge on top of the machine to set the blade to the proper length. CUTTING AT RIGHT ANGLES TO THE UPPER ARM WHEN USING PINLESS BLADES • Cutting from the side of the saw will be necessary when your workpiece exceeds 405mm in length. -
Page 11: Installing Blades
(if fitted). • The following replacement blades are available from your Clarke Dealer, : 15TPI (Part No: AWNCSS400C035A) 18TPI (Part No AWNCSS400C035B) 4. Press down the upper arm and hook the blade to the blade holder. -
Page 12: Removing Blades
REMOVING BLADES 1. Turn off the saw and unplug it from the power source. 2. Remove the table insert. 3. Turn the blade tension knob anticlockwise to remove the tension from the saw blade. 4. Press down on the top blade holder and remove the blade. - Page 13 SQUARING THE SAW TABLE TO THE BLADE WARNING: TO AVOID ACCIDENTAL STARTING WHICH COULD RESULT IN SERIOUS INJURY, TURN THE SAW OFF, AND UNPLUG THE SAW FROM THE POWER SOURCE. 1. Loosen the pressure plate adjustment knob. 2. Raise the pressure plate and lock it in the raised position.
-
Page 14: On/Off Switch
ON / OFF SWITCH To start the saw, press the ON button (I). To stop, press the OFF button (O). NOTE: The machine is equipped with a magnetic switch to prevent it being switched on again accidentally after a power failure. SPEED SETTING The speed regulator allows you to set the blade speed appropriate to the... -
Page 15: Operation
OPERATION Before starting a cut, turn the saw on and listen to the sound it makes. If you notice excessive vibration or an unusual noise, stop the saw immediately and unplug it. Do not restart the saw until you have corrected the problem. •... -
Page 16: Stack Cutting
STACK CUTTING Stack cutting may be used when several identical shapes need to be cut. Several workpieces may be stacked one on top of the other and secured to each other before cutting. Pieces of wood may be joined together by placing double sided tape between each piece or by wrapping tape around the corners or ends of the stacked wood. -
Page 17: General Maintenance
MAINTENANCE WARNING: TURN OFF AND UNPLUG THE SAW BEFORE CARRYING OUT ANY MAINTENANCE WORK ON YOUR SCROLL SAW. GENERAL MAINTENANCE • Keep your scroll saw clean. • Do not allow pitch to accumulate on the saw table. Clean it with gum and pitch remover. -
Page 18: Replace Carbon Brushes
1/4 in. (6 mm), replace both brushes as a pair. 4. Make sure the brush cap is positioned correctly (straight). Tighten the carbon brush cap using a hand screwdriver only. Do not overtighten. SPECIFICATIONS Model Number CSS16VB Rated Voltage (V) 230 V Input Power 90 W... -
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
