Summary of Contents for Clarke CAT114

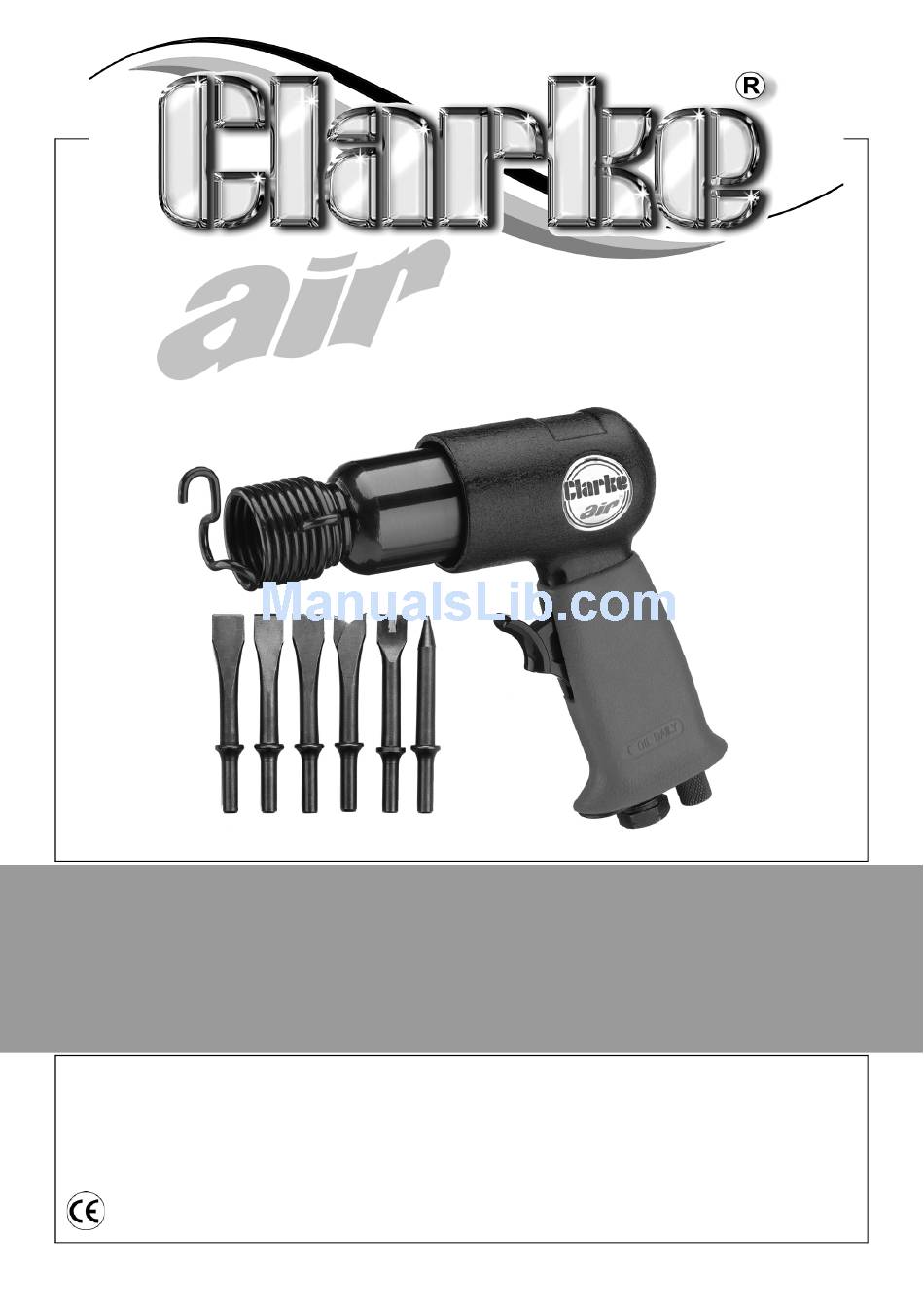

- Page 1 AIR HAMMER WITH CHISEL SET MODEL NO: CAT114 PART NO: 3110870 OPERATION & MAINTENANCE INSTRUCTIONS LS0810...
-
Page 2: Environmental Protection
A wide range of accessories are available, including Filter/Regulators, Lubricators, High Pressure Hoses (5 to 100 Metres), etc. Contact your CLARKE dealer for further information, or CLARKE International Sales Department on 01992 565 333. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 11. Always disconnect from the air supply when: • Performing any maintenance • The Air Hammer is not in use. • The Air Hammer will be left unattended. • Moving to another work area. • Passing the Air Hammer to another person. 12.
- Page 5 OVERVIEW DESCRIPTION NO DESCRIPTION Retaining spring Speed controller / Air regulator Main body Outboard lug Trigger Inboard lug 1/4” BSP (Female Air Inlet) Chisel set Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Air Supply
AIR SUPPLY WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source for the Air Hammer. •... -
Page 7: Before Use
COMPRESSORS AND COMPRESSED AIR SUPPLY. 1. Remove the travel plug from the bottom of the tool as shown. 2. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done regardless of whether or not a lubricated air supply is to be used. -
Page 8: Adjusting The Force
ADJUSTING THE FORCE Chisel force may be adjusted by turning the speed controler/air regulator knob, located at the base of the handle grip. • Turn anticlockwise to increase force. • Turn clockwise to reduce.the force. USING THE AIR HAMMER 1. Hold the tool with one hand around the handle and one hand around the barrel, then bring the tool towards the work at an angle... -
Page 9: Maintenance
DAILY • Drain water from air tank, air line and compressor. • Pour a few drops of CLARKE Air Line Oil, into the air inlet. This should be carried out regardless of whether or not the inline mini oiler is used. -
Page 10: Specifications
1.3 kg Please note that the details and specifications contained herein, are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate... -
Page 11: Vibration Emissions
‘K’, which represents the uncertainty factor, i.e. a value in excess of ‘a’, to which the tool could vibrate under normal conditions. These values appear in the specification panel below. Model Number CAT114 Description Air Hammer Declared vibration emission value in accordance with EN12096 Measured vibration emission value - a: 14.6 m/s... - Page 12 The graph on the right shows the vibration value against the maximum time the respective tool may be used, per day. The uncertainty factor should also be taken into account when assessing a risk. The two figures ‘a’ and ‘K’ may be added together and the resultant value used to assess the risk.
-
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 14 NOTES Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 15 NOTES Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
