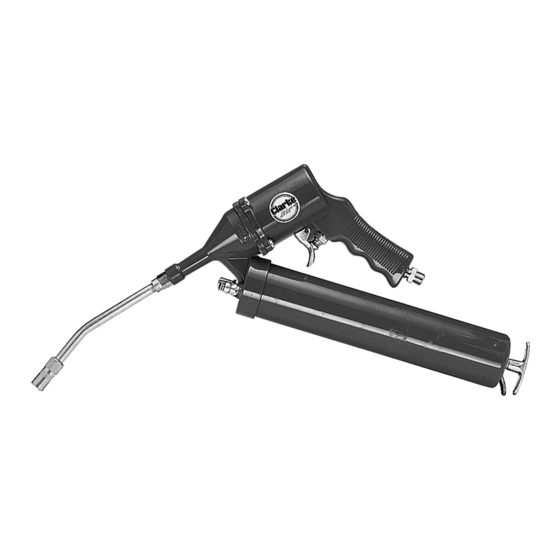

- Page 1 GREASE GUN MODEL NO: CAT33B PART NO: 3110433 OPERATING & MAINTENANCE INSTRUCTIONS GC04/15...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE Grease Gun. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • Passing the tool to another person. • Never use the tool if it is defective or operating abnormally. 11. This tool should be serviced regularly by qualified service personnel. 12. Avoid damaging the tool for example by applying excessive force. 13.
-
Page 5: Compressed Air Requirements
• A typical air line layout is shown above. If an automatic in-line filter/ regulator is used, it will keep the tool in good condition, but should be regularly checked & topped up with oil. Clarke air-line oil should be used, and the lubricator adjusted to approx 2 drops per minute. -
Page 6: Before Use
6. Your air tool is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer). LOADING WITH GREASE This air driven grease gun is designed to be loaded in one of three ways: •... -
Page 7: Disconnecting The Air Supply
5. Re-fit the container to the head of the grease gun. 6. Press the handle release tab to release the plunger handle. 7. Press the air vent valve to release any excess air trapped inside the gun. LOADING USING A FILLER PUMP (IF AVAILABLE) 1. -
Page 8: Maintenance
2. This air tool should be lubricated before use. Turn the tool upside down and pour 1-2 drops of Clarke air-line oil into the air inlet. This should be carried out regardless of whether or not an in-line mini oiler is used. If an in-line mini oiler is not used, this procedure should be repeated after every two to three hours of constant use. -
Page 9: Troubleshooting
3050875 is available from your Clarke dealer. A wide range of airline accessories is available including filter/regulators, lubricators, high-pressure hoses (5 to 50 metres) etc. Contact your Clarke dealer for further information or Clarke International Service Department on 01992 565333. TROUBLESHOOTING... -
Page 10: Parts List And Diagram
PARTS LIST & DIAGRAM Description No Description Gun Body Gasket Air Connector Trigger Flat Washer Screw Piston Air Plunger Piston Support Short Spring Kit Long Spring Kit Body Cap Grease Chamber Adaptor Piston Rod Extension with nozzle Plunger Handle Air Vent Valve Plate Plug Parts &... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
