Summary of Contents for Clarke CAT138

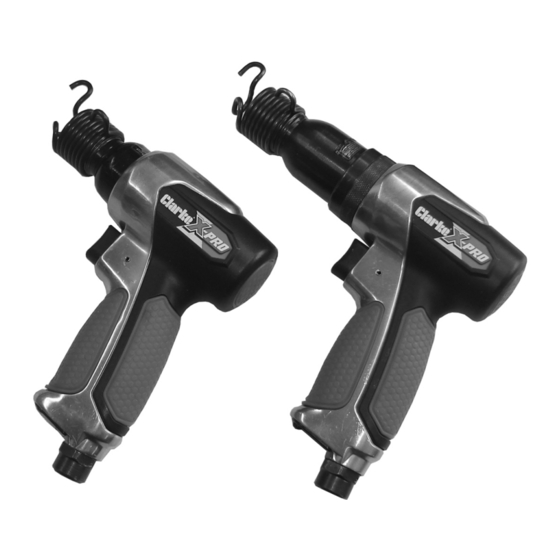

- Page 1 AIR HAMMERS MODEL NO: CAT138/CAT139 PART NO: 3120152 /3120153 OPERATING & MAINTENANCE INSTRUCTIONS GC064...
-
Page 2: Specifications
2.2 kg Please note that the details and specifications contained herein are correct at the time of going to print. However Clarke International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. -
Page 4: Air Hammer Specific Hazards
• Moving to another work area. • Passing the tool to another person. 14. This tool should be serviced at regular intervals by qualified personnel. 15. Avoid damaging the tool by applying excessive force of any kind. 16. Always maintain the tool with care. Keep it clean for the best and safest performance. -
Page 5: Compressed Air Requirements
• A typical air line layout is shown above. If an automatic in-line filter/ regulator is used, it will keep the tool in good condition, but should be regularly checked & topped up with oil. Clarke air-line oil should be used, and the lubricator adjusted to approx 2 drops per minute. -
Page 6: Operation
NO DESCRIPTION NO DESCRIPTION Retaining spring Air Inlet Trigger Chisel Set (CAT138-5 chisels/ CAT139-4 chisels) OPERATION NOTE: Ensure the compressed air supply is turned off. 1. If required, connect an in-line mini oiler to the tool. • A mini oiler helps to prolong the life of the air tool. Read the instructions supplied with the mini-oiler before use. -
Page 7: Fitting The Chisel
2. Connect a suitable hose as shown. 3. Connect the other end of the hose to the compressed air supply. 4. Turn on the air supply and check for air leaks. Rectify any found before proceeding. • PTFE tape may be helpful for sealing threaded connections. -
Page 8: Disconnecting The Air Supply
A wide range of airline accessories is available including filter/regulators, lubricators, high-pressure hoses (5 to 50 metres) etc. Contact your Clarke dealer or Clarke International Service Department for further information. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 9: Maintenance
If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air-line oil into the air inlet and run the tool in order to lubricate the internal parts. When not in use, disconnect the tool from the air supply, clean and store in a safe, dry place. -
Page 10: Parts List And Diagram
PARTS LIST & DIAGRAM Description No Description Housing Trigger Housing Cover Roll Pin Screw Plug End Cover OIl Seal Washer Rear Plate Pin Cover Valve Spring Set Pin O-Ring Front Plate Air Inlet Piston Muffler Cylinder Screw Retaining Spring Soft Grip-Front Trigger Sleeve Soft Grip-Rear Spring... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
