Summary of Contents for Clarke CAT218

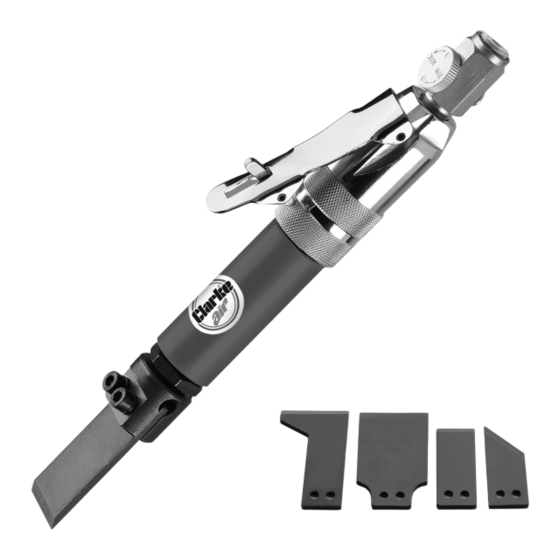

- Page 1 6PC AIR SCRAPER TOOL SET MODEL NO: CAT218 PART NO: 3110472 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC 04-22...
-
Page 2: Specifications
Uncertainty Factor Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - DO NOT wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 8. DO NOT carry out any alterations or modifications to the tool. 9. ALWAYS disconnect from the air supply when: • Performing any maintenance. • The tool is not in use. • The tool will be left unattended. • Moving to another work area. •...
-
Page 5: Transportation And Storage
3. Use clamps, or vices to hold a loose workpiece. Failure to secure the workpiece could result in personal injury. 4. Inspect the blades before use. DO NOT use if damaged. 5. ALWAYS wear a face mask when using the tool as protection from airbourne particles. - Page 6 The air hose must be rated at least 150% of the maximum operating pressure of the tool. Never exceed the maximum operating pressure for the tool. It is recommended that air pressure to this tool does not exceed 90 psi at the tool when running.
- Page 7 OVERVIEW NO DESCRIPTION NO DESCRIPTION Blade Locking screws Allen (hex) Key ” Trigger 1¾ Wide Curved Blade ” Speed Regulator 1¾ Offset Blade Air Inlet Port (with travel plug) 1” Flat Blade (one shown fitted) Inlet hose adaptor 10 1” 45 degree Angled Blade Parts &...
-
Page 8: Before Use
Your air tool is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer). FITTING THE BLADES CAUTION: THE BLADES ARE SHARP AND MAY CUT YOU IF BADLY HANDLED. -
Page 9: Operation
4. Remove the current blade by sliding it out of the blade holder (B). Be careful of the sharp edge. 5. Hold the blade only by the flat surfaces. Insert the selected blade into the blade holder's slot and align the blade bolt holes with the screw holes. Make sure the bevel is facing upward (same facing as the screws). -
Page 10: Disconnecting The Air Supply
1. Before use, drain water from the air tank, air line and compressor. 2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be carried out regardless of whether or not an in-line mini oiler is used. If an in- line mini oiler is not used, this procedure should be repeated after every two to three hours of use. -
Page 11: Service And Repair
If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air line oil into the air inlet and run the tool for 5 seconds in order to lubricate the internal parts. -
Page 12: Troubleshooting
2. Motor parts worn. 2. Return to your CLARKE dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant. -
Page 13: Component Parts
COMPONENT PARTS Description No Description Handle Cylinder Valve stem Locknut O-ring Blade holder Spring Cap head screw Plug screw Blade - flat (25mm) Trigger Assembly Blade - L-shaped (45mm) Bolt Blade - bent (45mm) Air regulator Blade - angled (35mm) Upper valve Hex wrench Piston... -
Page 14: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
