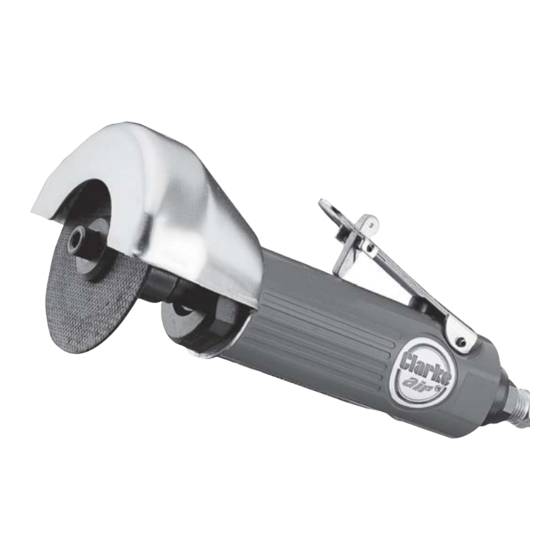

- Page 1 3” CUT-OFF TOOL Model No: CAT66 & CAT99 Model Nos: 3110730 & 3110855 OPERATING & MAINTENANCE INSTRUCTIONS GC08/13...
-
Page 2: Environmental Protection
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair out of the way. 3. Keep children and visitors away - do not let children handle the tool. Make sure that any other persons in the work area are suitably dressed and are wearing eye and ear protection. - Page 4 17. Never attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 18. This product vibrates during use. Vibration may be harmful to your hands or arms. Stop using the cut-off tool if discomfort, a tingling feeling or pain occurs and seek medical advice before resuming use.
-
Page 5: Air Supply Requirements
AIR SUPPLY REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •... -
Page 6: Before Use
1. Remove the plastic blanking plug from the connection port of the tool as shown. 2. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done regardless of whether or not a lubricated air supply is to be used. -
Page 7: Adjusting The Speed
Replacement cutting discs are available from your Clarke dealer. Part no 3110731. DISCONNECTING THE AIR SUPPLY 1. Do not disconnect the air supply hose until the compressor has been shut down and the compressed air pressure released. -
Page 8: Service And Repairs
3. For lubricating the air motor, an air line lubricator should be used, containing Clarke Air Line Oil, adjusted to 2 drops per minute. If this is not possible, run a few drops of oil through the tool. It may be entered into the tool air inlet, (ensuring the strainer is clear), or into the hose at the nearest connection to the air supply. -
Page 9: Troubleshooting
2. If the tool is not to be used for longer than 24 hours, run a few drops of CLARKE airline oil into the air inlet and run the tool for a few seconds to ensure that the oil has been well distributed throughout the tool. -
Page 10: Technical Specification
" 6 Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Vibration Emissions
‘a’, to which the tool could vibrate under normal conditions. These values appear in the specification panel below. MODEL Nos: CAT66 & CAT99 DESCRIPTION: 3” CUT-OFF TOOL Declared vibration emission value in accordance with EN12096 Measured vibration emission value - a: <2.5m/s... - Page 12 You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
-
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
I The above parts list apply equally to the CAT66 and CAT99. The only differ- ence is that the external parts of the CAT99 are highly pollished and include rubber grips. Should these parts be required, please contact your nearest Clarke dealer, while referring to the parts list above. -
Page 15: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
