- Page 1 GREASE GUN MODEL NO: CAT125 PART NO: 3120137 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC04/20 - ISS 2...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Grease Gun. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • Moving to another work area. • Passing the tool to another person. • Never use the tool if it is defective or operating abnormally. 11. This tool should be serviced at regular intervals by qualified service personnel. 12. Avoid damaging the tool for example by applying excessive force of any kind.

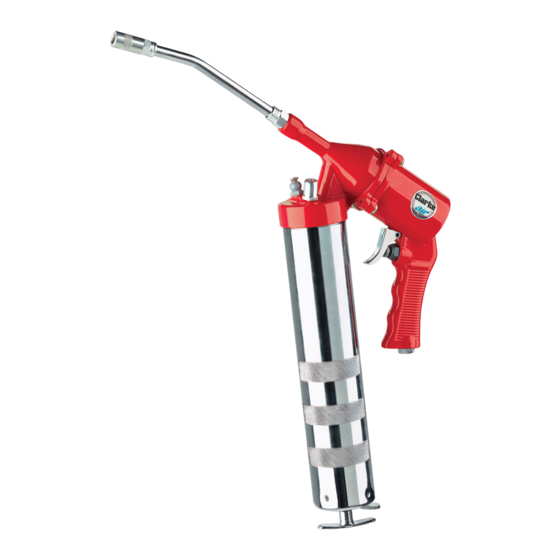

- Page 5 OVERVIEW NO DESCRIPTION NO DESCRIPTION Nozzle Air Inlet Air Vent Valve Plunger Handle Grease Inlet Valve Plunger Release Tab Trigger Grease Container Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND A COMPRESSED AIR SUPPLY. A typical air line layout is shown below. If an automatic in-line filter/regulator is used it will keep the tool in good condition, but should be regularly checked and topped up with oil. -
Page 7: Before Use
6. Your air tool is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer). Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: Operation
OPERATION LOADING WITH GREASE This air driven grease gun is designed to be loaded in one of three ways: • Using a standard 400 gram grease cartridge. • Loading the container with a filler pump. • Loading the container by bulk filling. WARNING: MAKE SURE THE AIR SUPPLY IS DISCONNECTED BEFORE FILLING THE GREASE CHAMBER. -
Page 9: Disconnecting The Air Supply
BULK FILL LOADING 1. Remove the container from the head of the grease gun. 2. Pull the plunger handle on the container completely out. 3. Fill the container with bulk grease. 4. Re-fit the container to the grease gun. 5. Press the handle release tab to release the plunger handle. 6. -
Page 10: Maintenance
2. This air tool should be lubricated before use. Turn the tool upside down and pour 1-2 drops of Clarke air-line oil into the air inlet. This should be carried out regardless of whether or not an in-line mini oiler is used. If an in-line mini oiler is not used, this procedure should be repeated after every two to three hours of constant use. - Page 11 A wide range of airline accessories is available including filter/regulators, lubricators, high-pressure hoses (5 to 50 metres) etc. Contact your Clarke dealer for further information or Clarke International Service Department on 01992 565333. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 12: Troubleshooting
Grease gun is too cold. The gun needs to be at room temperature(65-80 Gun will not shut off. O-rings damaged or ill- Return to Clarke dealer for fitting in seat. repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Parts List And Diagram
PARTS LIST & DIAGRAM Description No Description Gun Body Spring Machine screw M4 x 12 Spring Seat Washer Trigger Piston Pin 3*14 WAsher Washer Piston Seat Nut M8 O-ring 6*1 Washer Connector Spring Seat Spring Spring Cylinder Gun Head Lock Spring Seat Snap Retainer Steel Ball... -
Page 14: Specification
1.57 kg Please note that the details and specifications contained herein are correct at the time of going to print. However Clarke International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
