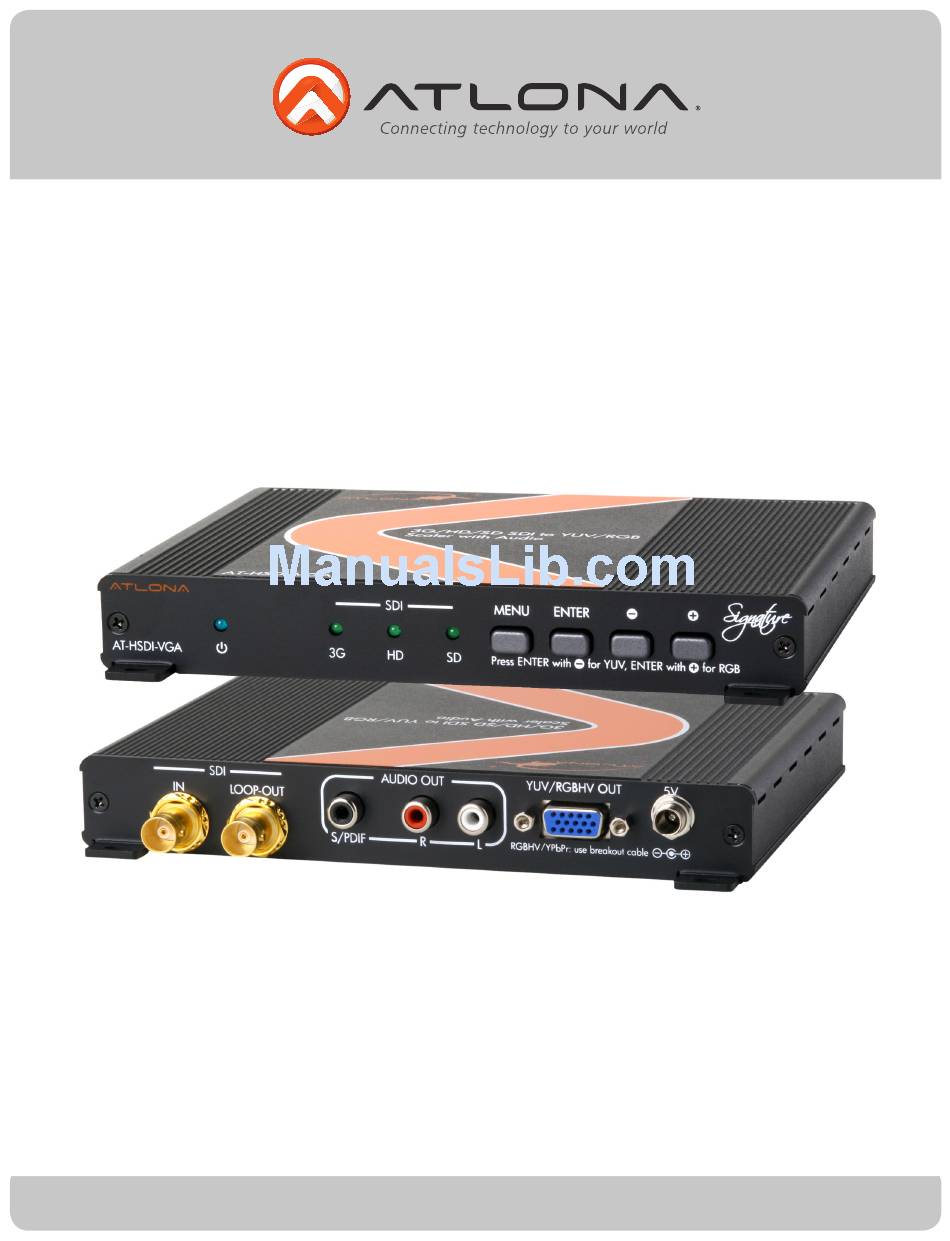

- Page 1 Atlona SDI to PC/HD Scaler with Audio AT-HSDI-VGA User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..................4 b. Rear Panel ..................4 6. On Screen Display ..................5-6 7. Connection and Installation ..................7 8. Safety Information ..................8 9. Warranty ..................9 10. Atlona Product Registration ..................10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction With built in scaling the Atlona SDI to PC/HD Scaler w/Audio takes SD, HD, and 3G SDI signals and adapts them to component or VGA video formats with resolutions up to 1080p on component or 1920x1200 on VGA. The AT-HSDI-VGA also has re-clocking technology which allows you to extend your SDI signals up to 330ft (100M) with 3G, 660ft (200M) with HD, and 1000ft (300M) with SD. -
Page 4: Panel Description

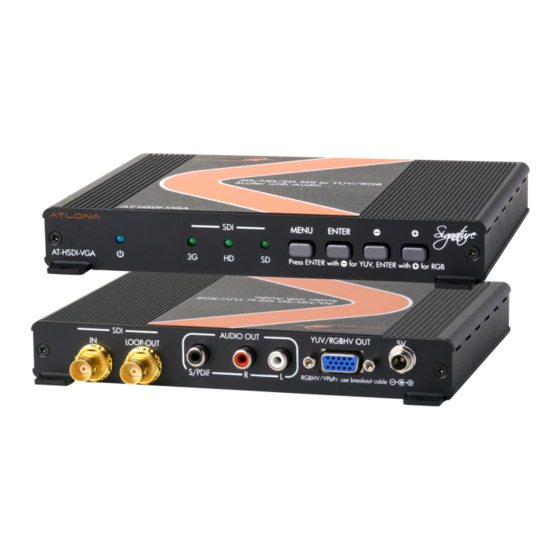

Panel Description Front Panel 1. Power indicator, the LED will glow blue when the AT-HSDI-VGA is plugged into the power outlet. 2. SDI signal detection will light up the green LED that corresponds with the signal quality that is being received. -
Page 5: On Screen Display
0 - 192 (96) 0 - 255 (128) 0 - 255 (128) 0 - 255 (128) R Offset 0 - 64 (32) G Offset 0 - 64 (32) B Offset 0 - 64 (32) Exit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 Group 4 will be determined by the user and can encompass any other audio group needed. Auto defaults to the first available group of audio that the AT-HSDI-VGA receives. Selecting ‘factory reset’ will return the settings to output timing 1024x768@60Hz, size full screen, Color will return to the values in the brackets of the color table, and SDI Audio will reset to Auto.
-
Page 7: Connection And Installation
Connections and Installation SDI Camcorder SDI Display PC/HD Display Use cable D-Sub 15pin for PCs and HD15 cable for HD displays AT-PA100 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your AT-HSDI-VGA. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 10: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
