  • Page 1 Atlona Manuals AT-HDR-M2C Audio...
  • Page 2 Version Information Version Release Date Notes 04/17 Initial release AT-HDR-M2C...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

  • Page 6: Important Safety Information

    Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-HDR-M2C...

  • Page 7: Table Of Contents

    Buttons Info page System Info Video Info Audio Info A/V Settings page Video Audio Config page Configuration System page Network System Commands Appendix Updating the Firmware Using the Web GUI Using USB Mounting Instructions Default Settings Troubleshooting Specifications Index AT-HDR-M2C...

  • Page 8: Introduction

    @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system.

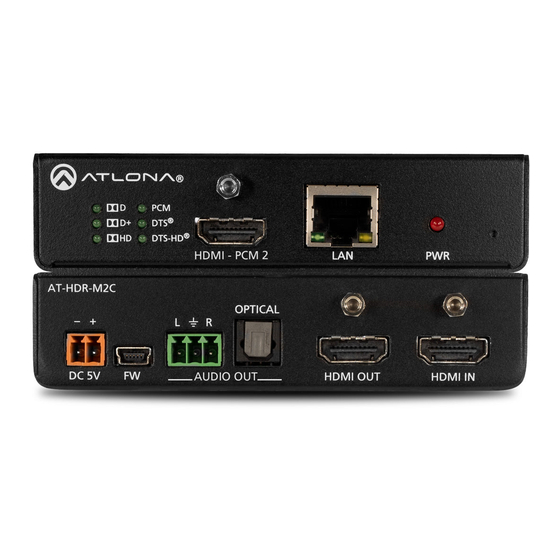

  • Page 9: Panel Description

    Connect an HDMI cable from the source to this port. static IP and DHCP mode. Refer to Toggling the IP Mode (page 12) for more information. DC 5V Connect the included 5V DC power supply to this power receptacle. AT-HDR-M2C...

  • Page 10: Installation

    Installation Audio Connector The AT-HDR-M2C provides analog audio output of two-channel audio, using the included 3-pin Phoenix terminal block. 1. Use wire strippers to remove a portion of the cable jacket. 2. Remove at least 3/16” (5 mm) from the insulation of each wire.

  • Page 11: Connection Instructions

    • Two-channel audio Connect an HDMI cable from the HDMI - PCM 2 port, on the AT-HDR-M2C, to a display or other sink device. Audio output is limited to two-channels. IMPORTANT: The AT-HDR-M2C is a High Dynamic Range (HDR) device. For best performance, use premium HDMI cables that are HDR-certified.

  • Page 12: Basic Operation

    Toggling the IP Mode The recessed button on the front panel of the AT-HDR-M2C is used to toggle between DHCP and static IP mode. The factory-default setting for the AT-HDR-M2C is DHCP mode, which allows the device to be automatically assigned an IP address by the DHCP server (if present), after it is connected to a Local Area Network (LAN).

  • Page 13: The Web Gui

    The AT-HDR-M2C is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-HDR-M2C. If a DHCP server is not available or if a static IP address is desired, it can be assigned using the...

  • Page 14: Menu Bar

    Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu. Menu bar In this example, clicking A/V Settings, in the menu bar, will display the A/V Settings page. AT-HDR-M2C...

  • Page 15: Toggles

    Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDR-M2C to factory-default settings. AT-HDR-M2C...

  • Page 16: Info Page

    After logging in, the Info page will be displayed. The Info page is divided into three sections: System Info, Video Info, and Audio Info. The System Info section displays general information about the AT-HDR-M2C, such as the model name, software, and boot loader version. The Video Info section displays information about the input video signal.

  • Page 17: Audio Info

    Click this toggle to report HDCP compliance or non-compliance to the source device. • ON - Reports to the source device that the AT-HDR-M2C is an HDCP-compliant sink. • OFF - Reports to the source device that the AT-HDR-M2C is a non-HDCP-compliant sink.

  • Page 18: Audio

    Old Password Confirm New Password Enter the current password for the “root” username in Verify the new password by retyping it in this field. this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes.

  • Page 19: System Page

    Click this toggle to set the AT-HDR-M2C to DHCP or static mode. By default, the AT-HDR-M2C is in DHCP mode. Enter the IP address of the AT-HDR-M2C in this field. This field will only be available when the IP Mode is set to Static.

  • Page 20: System

    Broadcast Click this toggle to set the Broadcast mode ON or OFF. System Factory Default Click this button to reset the AT-HDR-M2C to factory-default settings. Choose File Click this button to select the firmware file. Update Click this button to begin the firmware update procedure.

  • Page 21: Commands

    Commands The following tables provide an alphabetical list of commands available on the AT-HDR-M2C. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is “Command FAILED”. IMPORTANT: Each command is terminated with a carriage-return (0x0d )and the feedback is terminated with a carriage-return and line-feed (0x0a).
  • Page 22 GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature off. on = enables broadcast mode; off = disables broadcast mode; sta = displays the current Broadcast setting. Syntax Broadcast X Parameter Description Range Value on, off, sta Example Feedback Broadcast on Broadcast on AT-HDR-M2C...
  • Page 23 Description Range Value on, off, sta Example Feedback HDMIAud off HDMIAud off Help Displays a list of all available commands. Syntax Help This command does not require any parameters Example Feedback Help Command List ----------------- Help IPCFG IPDHCP TREBLE1 AT-HDR-M2C...
  • Page 24 20 characters (max) Example Feedback IPAddUser BigBoss b055man IPAddUser BigBoss b055man TCP/IP user was added IPCFG Displays the current network settings for the AT-HDR-M2C. Syntax IPCFG This command does not require any parameters Example Feedback IPCFG IP Addr : 192.168.1.38 Netmask : 255.255.255.0...
  • Page 25 IPLogin Enables / disables the use of login credentials when starting a Telnet session on the AT-HDR-M2C. If this feature is set to on, then the AT-HDR-M2C will prompt for both the username and password. Use the same credentials as the web GUI.
  • Page 26 Feedback IPQuit IPQuit IPStatic Sets the static IP address, subnet mask, and gateway (router) address of the AT-HDR-M2C. Before using this command, DHCP must be disabled on the AT-HDR-M2C. Refer to the IPDHCP command for more information. Each argument must be entered in dot-decimal notation and separated by a space. The default static IP address is 192.168.1.254.
  • Page 27 4 = 1920 x 1200 10 = 3840 x 2160 @ 60 Hz Example Feedback PrefTimg 2 PrefTimg 2 RAtlMac Displays the MAC address of the AT-HDR-M2C. Syntax RAtlMac This command does not require any parameters Example Feedback RAtlMac b8-98-b0-00-00-c6...
  • Page 28 UARTPara Sets the baud rate, data bits, parity bit, and stop bits for the AT-HDR-M2C. All arguments must be separated by a comma. The data bits, parity bit, and stop bits for this product must be 8, 0, and 1, respectively.
  • Page 29 Commands Version Displays the current firmware version of the AT-HDR-M2C. Syntax Version This command does not require any parameters Example Feedback Version 0.2.05 VOUT1 Increases / decreases the audio volume HDMI - PCM 2, OPTICAL, and analog output port. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the volume by 1 value, respectively.

  • Page 30: Appendix

    Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, If a network connection is not available, the AT-HDR-M2C firmware can be updated using a USB-A to USB mini-B cable.

  • Page 31: Using Usb

    7. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process. 8. The update process will take approximately 60 seconds and will automatically reboot the AT-HDR-M2C. 9. After the firmware update process is complete, the Login screen will be displayed.
  • Page 32 4. Delete all files from the USB UPDATE drive, if any are present. 5. Drag-and-drop the firmware file to the drive. 6. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDR-M2C. 7. The AT-HDR-M2C will automatically reboot, completing the firmware update process.

  • Page 33: Mounting Instructions

    Appendix Mounting Instructions The AT-HDR-M2C includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. 1. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure.

  • Page 34: Default Settings

    IP Mode DHCP 192.168.1.254 Netmask 255.255.255.0 Gateway 192.168.1.1 Telnet Port Telnet Login Mode Telnet Timeout (seconds) Broadcast NOTE: When the AT-HDR-M2C is set to static IP mode, then the IP, Netmask, and Gateway settings will be used by default. AT-HDR-M2C...

  • Page 35: Troubleshooting

    1080p - Feet / Meters length HDMI @ 60 Hz HDMI @ 24 Hz Signal Bandwidth 18 Gbps HDCP Temperature Fahrenheit Celsius Operating 32 to 122 0 to 50 Storage -4 to 140 -20 to 60 Humidity (RH) 20% to 90%, non-condensing AT-HDR-M2C...
  • Page 36 26 x 109 x 89 H x W x D (w/ ears) 1.02 x 5.00 x 3.74 26 x 127 x 95 Weight Pounds Kilograms Device 0.27 Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC AT-HDR-M2C...

  • Page 37: Index

    VOUT1 Mounting instructions VOUTMute1 Muting Connection Warranty audio 18, 29 diagram Web GUI instructions Contents package Operating notes Customer support Output volume adjusting Default setttings DHCP Panel descriptions setting 12, 25 Password setting Power connector FCC statement Features AT-HDR-M2C...
