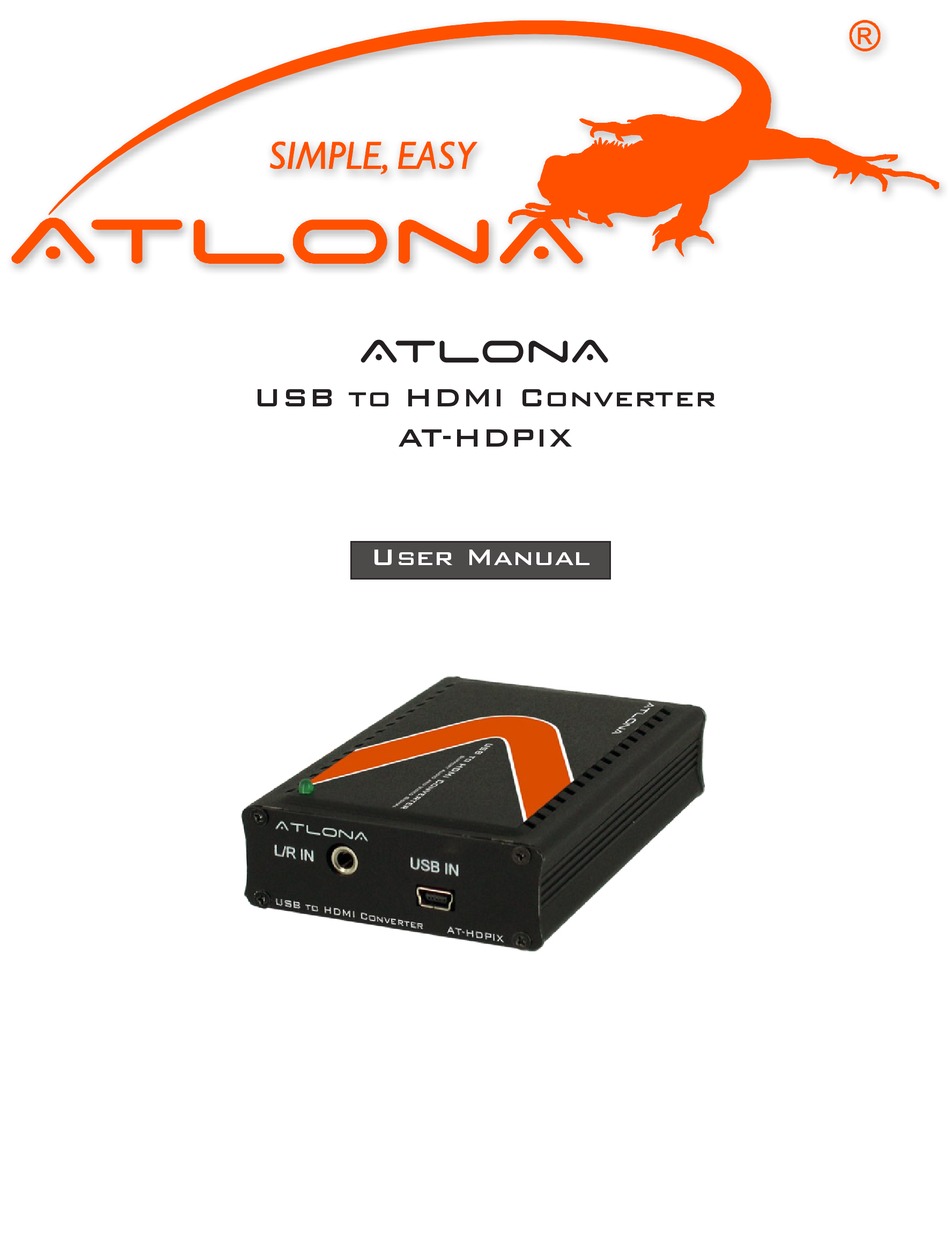

- Page 1 AtlonA USB to HDMI Converter AT-HDPIX User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. PC Requirements ..........3.1 Mac Requirements ..........4. Installation ..........5.0 Updates ..........5.1 Screen Resolution ..........5.2 Color Quality ..........5.3 Screen Rotation ..........5.4 Extend To ..........5.5 Extend .......... -
Page 3: Introduction
Introduction Atlona Technologies presents the all new USB to HDMI adaptor, the HDPiX. This new solution is designed to add a HDMI port to any computer (Mac or PC) and has limitless applications in both consumer and commercial environments. From digital... -
Page 4: Installation
Installation Insert CD into CD-ROM drive Run the SETUP.EXE file and select language to install Connections: Options # 1 Extended Screen Options # 2 Mirror Screen Updates From this menu the software can be updated online, or configured for automatic updates... -
Page 5: Screen Resolution
Screen Resolution Screen Resolution for extended display or mirrored display. To change the resolution, you have to be in extended mode. Color Quality Color Quality can be selected to 16 bit or 32 bit... -
Page 6: Screen Rotation
Screen Rotation Normal - screen is in normal position Rotated left - Rotates screen to the left Rotated right - Rotates screen to the right Upside-Down - Rotates screen upside down Extend To When multiple displays are connected the image can be extended separately to different monitors. -
Page 7: Extend
Extend Extends the desktop to second display Mirror Mirros desktop to second display. When connecting to computer LCD the PC and the MAC display settings are unchanged. The max resolution that can be displayed on the mirror display is 1600x1200. If connecting to a LCD or Plasma TV the PC display settings need to be set at 1024x768 the MAC display settings are unchanged... -
Page 8: Off
Turns off software. Advanced Windows Display Settings... -
Page 9: Technical Specifications
Technical Specifications * Compatible with Windows 2000, XP and Vista * Compatible with Mac OS 10.4.1 or higher * Audio connector: 3.5mm stereo jack (1/8) * USB connector: mini-USB female * HDMI connector: Standard HDMI 19-pin female * Dimensions: 3.2” W x 0.8” H x 2.2” D * Gross Weight: 1lb 3.5mm stereo jack (1/8) mini-USB female... -
Page 10: Hdpix Troubleshooting Guide
HDPiX Troubleshooting guide Problem Solution If your HDPiX doesn’t turn a. Turn of all Programs that are running (i.e. Internet Explorer, Microsoft Word) and re- on after being plugged in connect the HDPiX try the following: b. If you have an Antivirus running, disable it and reconnect the HDPix. Once the HDPiX connects turn the Antivirus program back on. -
Page 11: Safety Information
It may also cause damage to your AT- HDPIX. * Use only accessories recommended by ATLONA to * Opening the product will void the warranty. Do not avoid fire, shock or other hazards. -
Page 12: Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
