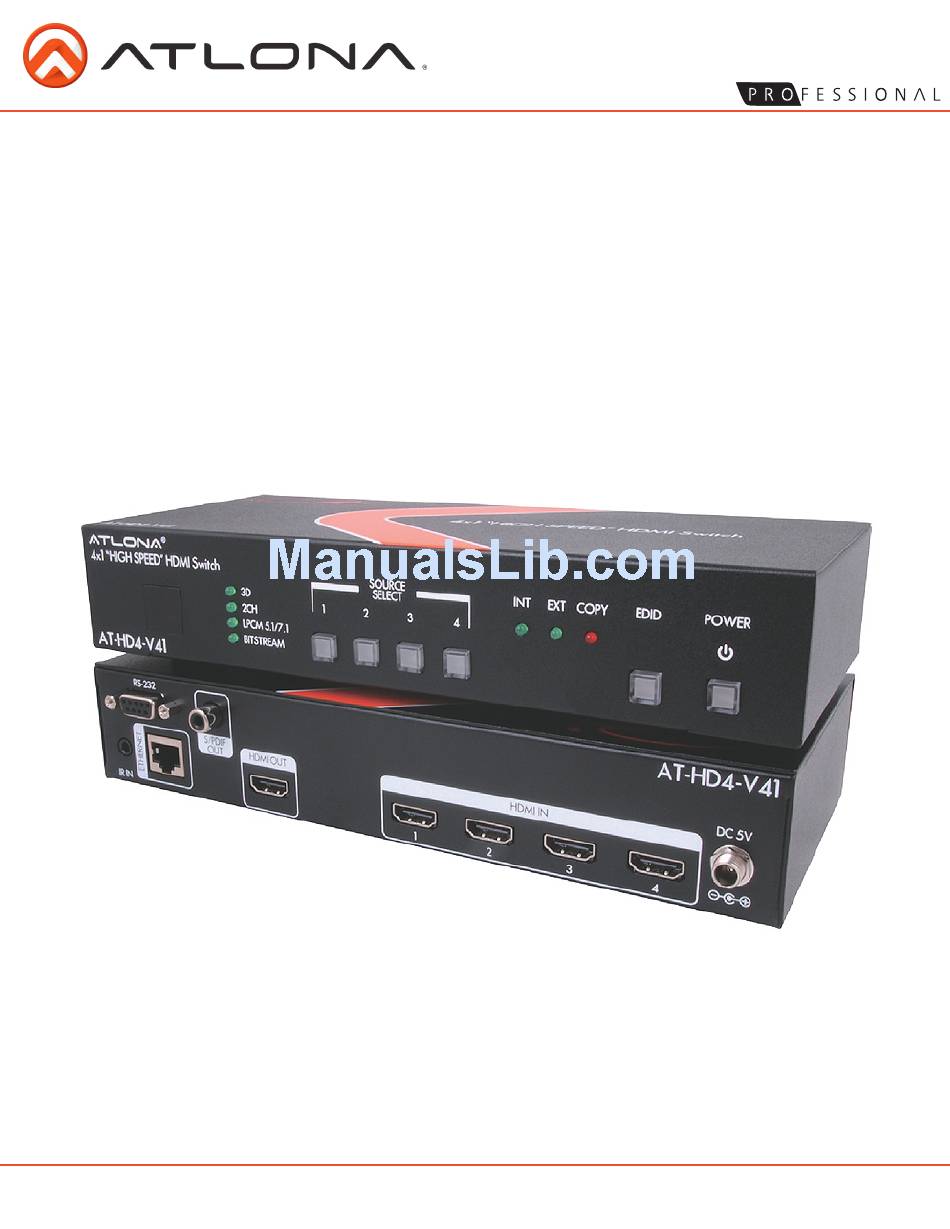

    Atlona HDMI 4 by 1 Switcher AT-HD4-V41 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    Step by Step guide -------------------------------------------------------------------- 7 7. RS-232 a. Hyperterminal -------------------------------------------------------------------- 8 a. Connection -------------------------------------------------------------------- 8 b. Command -------------------------------------------------------------------- 8 8. EDID -------------------------------------------------------------------- 9 9. Safety Information -------------------------------------------------------------------- 10 10. Warranty -------------------------------------------------------------------- 11 11. Registration -------------------------------------------------------------------- 12 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 3: Introduction

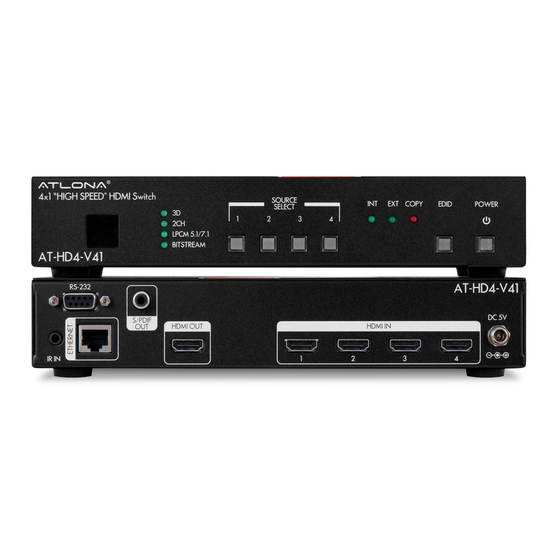

    Introduction The Atlona HDMI 4 by 1 Switcher is a great product for homes with multimedia systems and not enough source input options. The Atlona switcher supports an Audio Return Channel and an HDMI 100Mbps Ethernet port for HDMI Ethernet Channel (HEC) feature, reducing the amount of wires necessary for compatible systems.

  • Page 4: Front

    3. Ethernet port for HDMI Ethernet Channel (HEC) capable devices. 4. Digital (S/PDIF) output for digital audio. 5. HDMI output to display. 6. HDMI input for source components such as: DVD, PS3, Xbox360, or computer. 7. Power supply input. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 5: Remote Control

    A. On and Off Button B. Source selection. Press the number that matches the source you wish to use Connections and Installation A/V Receiver Computer HDTV Camera Satelite Receiver Internet Router XBox360 Blu-Ray Player Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Step By Step Guide

    2. Connect the HDMI cables to your sources and the switcher’s inputs labelled HDMI IN. a. If the auto switching feature is turned on (through RS-232) the AT-HD4-V41 will change inputs to the source that was powered on last. The source will switch to the previously turned on device when the current input is turned off.

  • Page 7: Rs-232

    RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used 9 8 7 6 ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 8: Command

    It is useful for devices with uncommon resolutions that are not stored internally. When switching from internal to external EDID modes, press the EDID button so the external LED illuminates, then power cycle the unit. When the AT-HD4-V41 is turned back on it will sync with the display and determine the EDID.

  • Page 9: Safety Information

    It may also cause damage to your AT-HD4-V41. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

  • Page 10: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.

  • Page 11: Atlona Product Registration

    Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
