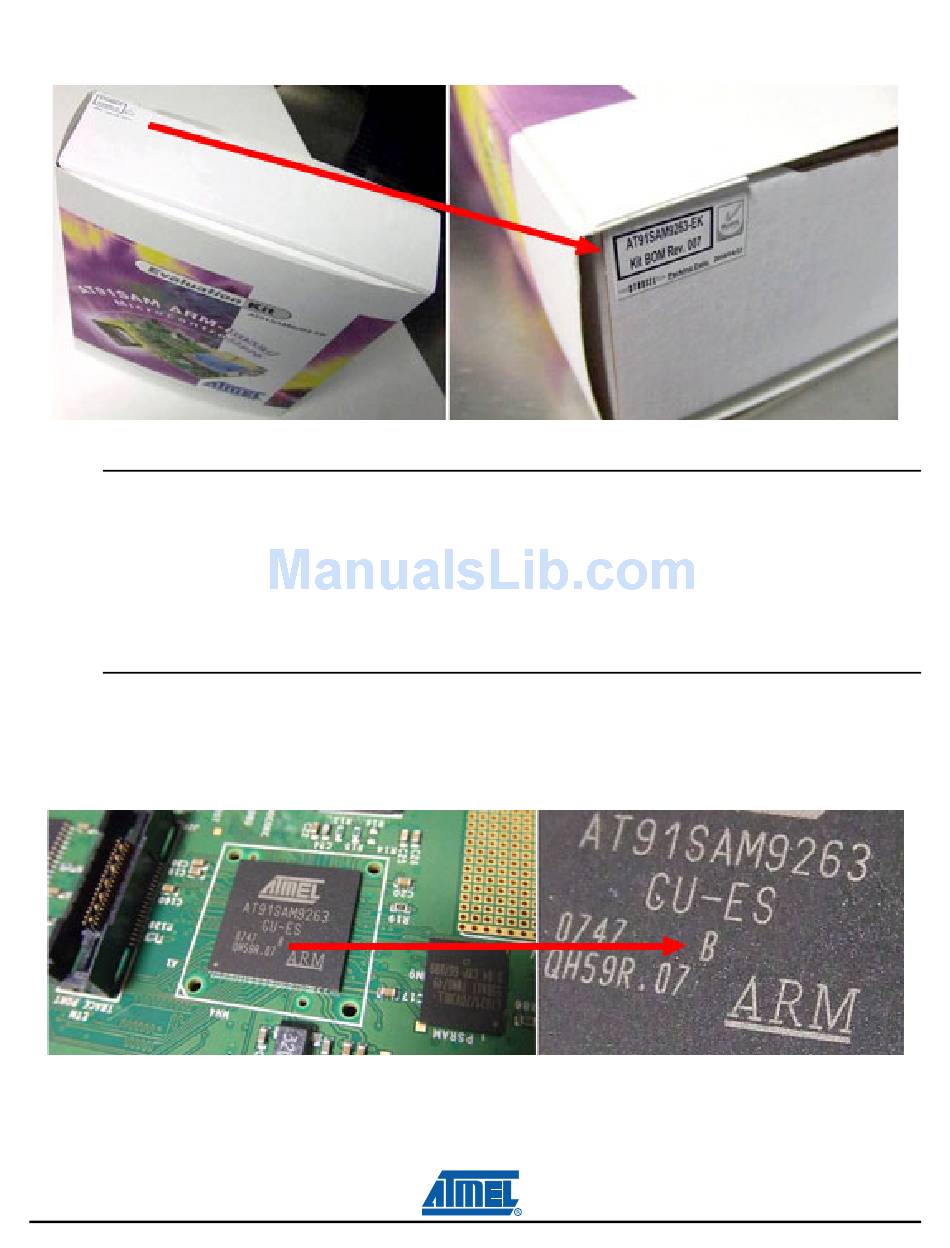

Figure 1-1.

AT91SAM9263-E Kit BOM

1.3

How to Identify the PCB Revision

The PCB revision can be clearly identified by looking at the board copper marking on the bottom side.

The last character of the series indicates the revision. Thus, If the series of characters ends with the let-

ter "B" (e.g. 63PC0608021B), your board is Rev. B.

For technical information on Revision A boards, refer to the corresponding

number

1.4

The AT91SAM9263 MRL B (Marketing Revision Level B) parts are identified with a letter "B" on top of

the package as shown below:

Figure 1-2.

AT91SAM92639263 MRL B

1-2

6341B–ATARM–17-Sep-08

6279, available on the Atmel web site.

AT91SAM9263-EK Evaluation Board Rev. B User Guide

User Guide, Atmel literature
