Section
3
3.1

Adjusting the display

The VT084 Series display has an embedded microprocessor in the converter card. Once you
have the unit to display VGA do the following:
In order to navigate to the appropriate adjustments, press Menu and the OSD layout chart will
appear as indicated in Fig. 1 from left to right.
If you press the "MENU" the new settings are saved and the OSM appear and your setting will
be stored in the unit's non volatile memory.
Definition of OSD (on screen display) Adjustments
3.2
OSD Layout

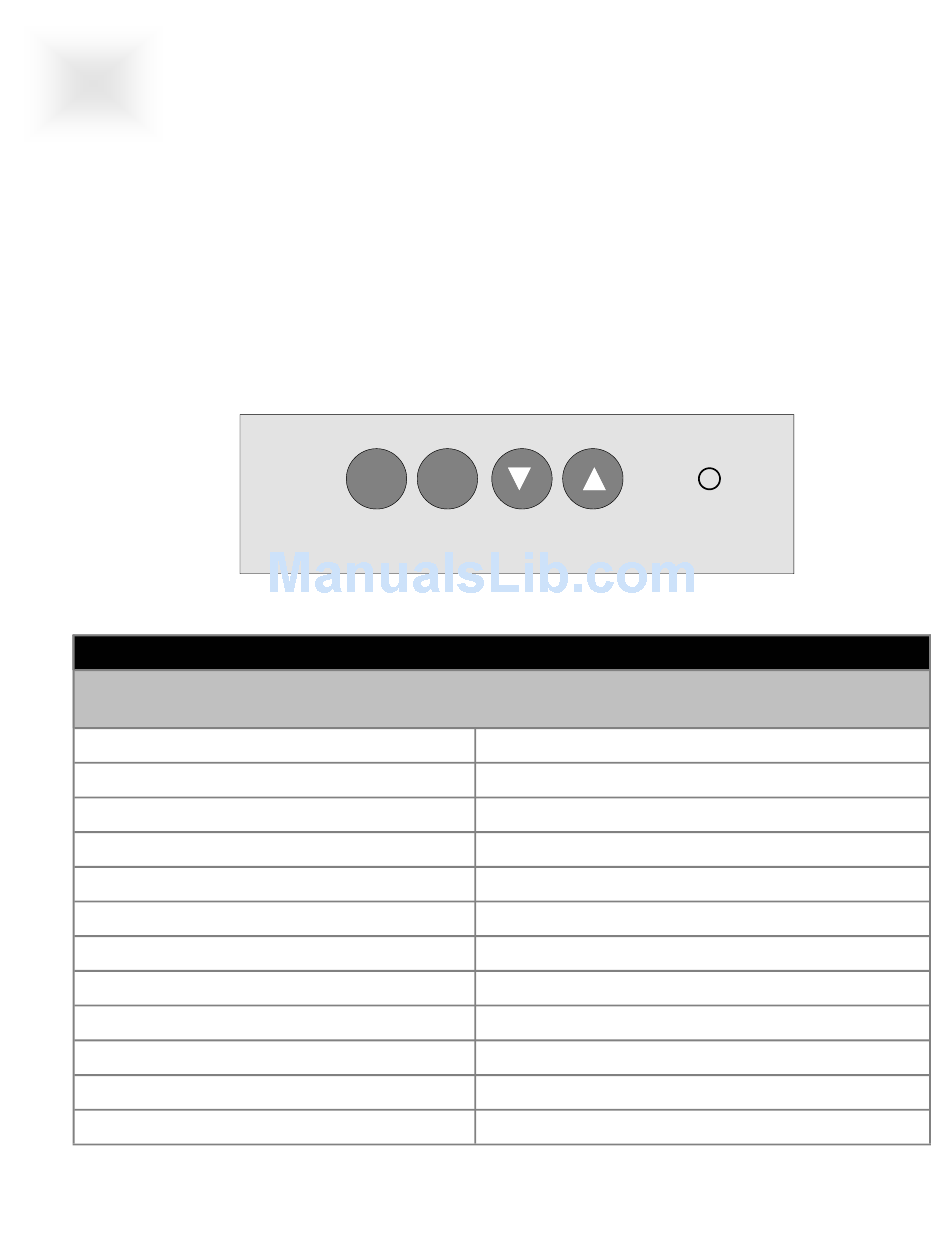

There are four membrane buttons (as shown above) located on the rear of the unit. They will
activate the OSD and allow navigation to all adjustments if your unit requires adjustment.
Main Menu
Automatic Adjust
Horizontal Position
Vertical Position
Horizontal Size
Phase
Brightness
Contrast
Color
OSD Language
Advanced
Cancel
8.4' DiamondVue User Guide
Vartech Systems
Menu Select
www.vartechsystems.com
Sub Adjustment
Geometry & Color Balance
Horizontal position
Vertical Position
Horizontal Size
Phase
Brightness
Contrast
Red, Green, Blue
English, Espanol, Deutsch, Francais, Italiano
Factory Preset, OSD Hor. Pos., OSD Vert. Pos.
Fig. 1
7
