VarTech Systems DiamondVue VT084C User Manual page 7

Signal Connections Cont.
2.6
You can use an HD-15 connector cable or a BNC adapter cable to connect the flat panel
monitor to the host computer. The HD-15 video cable (supplied in the kit) you use with this
monitor is equipped with a conventional HD-15 connector at each end.
Note: The following figure is the view looking into the pin end of the male connector or solder
term end of the female connector.

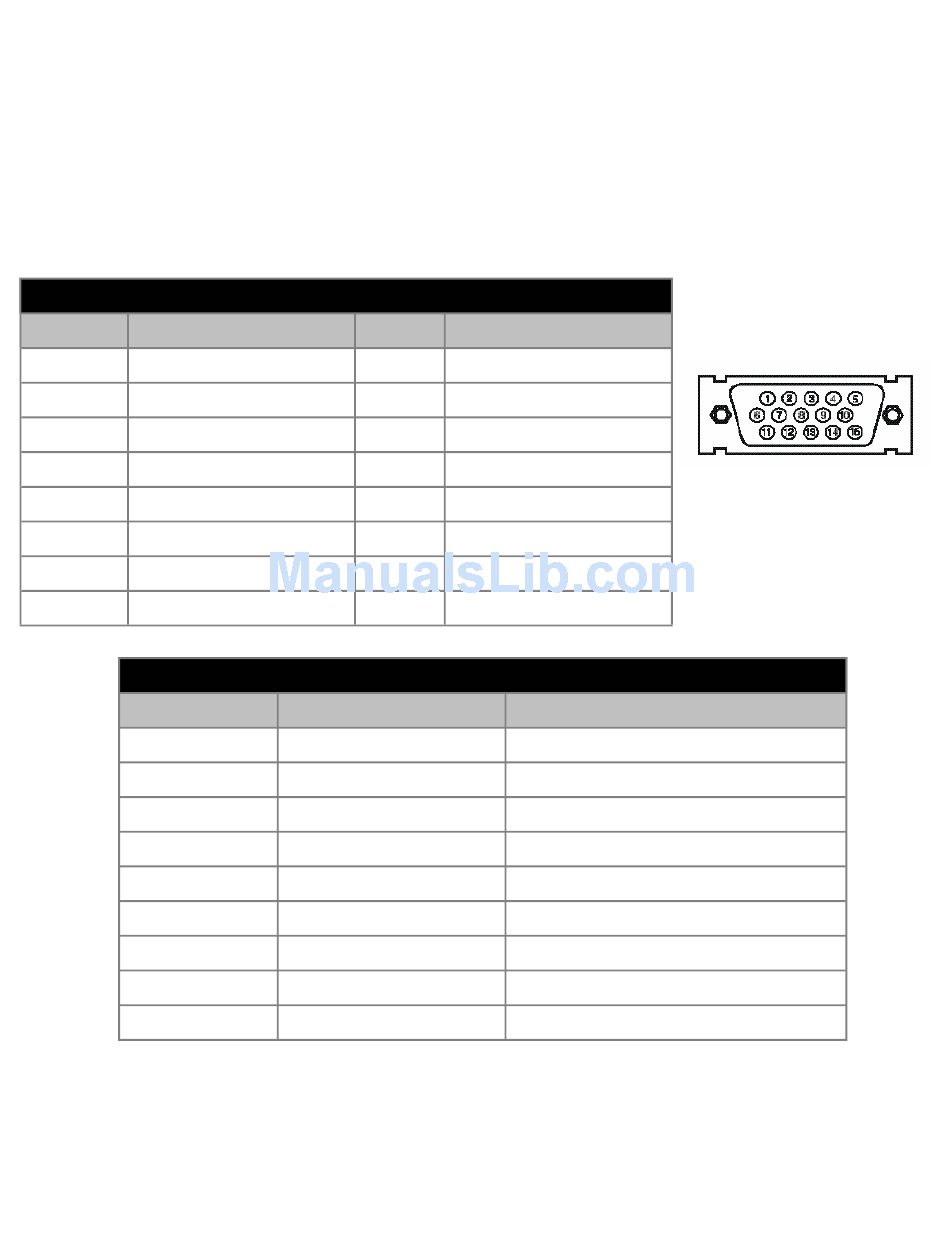

HD-15 Video Connector
The following table provides the pin numbers and corresponding pin
assignments for the HD-15 video connector.
Pin assignments for the HD15 video connector
Pin Connection
1 Red Video
2 Green Video
3 Blue Video
4 No Connection
5 Return
6 Red Video Ground
7 Green Video Ground
8 Blue Video Ground
Pin assignment for 9 Pin Optional Touch Screen Connector.
Pin
1
2
3
4
5
6
7
8
9
8.4' DiamondVue User Guide
Pin Connection
9 No Connection
10 Sync Ground
11 No Connection
12 Bi-Directional Data
13 Horizontal Sync
14 Vertical Sync
15 DDC Clock
DCD
RD (Rx)
SD (Tx)
DTR
SB
DSR
RTS
CTS
NC
5
HD15 Connector
Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request to Send
Clear to Send
No Connection
