Adjusting the display

The VT201 DiamondVue Series display has an embedded microprocessor in the converter
card. Once you have the unit displaying the resolution you desire for your application do the
following:
In order to navigate to the appropriate adjustments, press Menu and the OSD layout chart will
appear as indicated as shown below.
Vartech Systems, Inc
Menu
3.2
Definition of OSD (on screen display) Adjustments

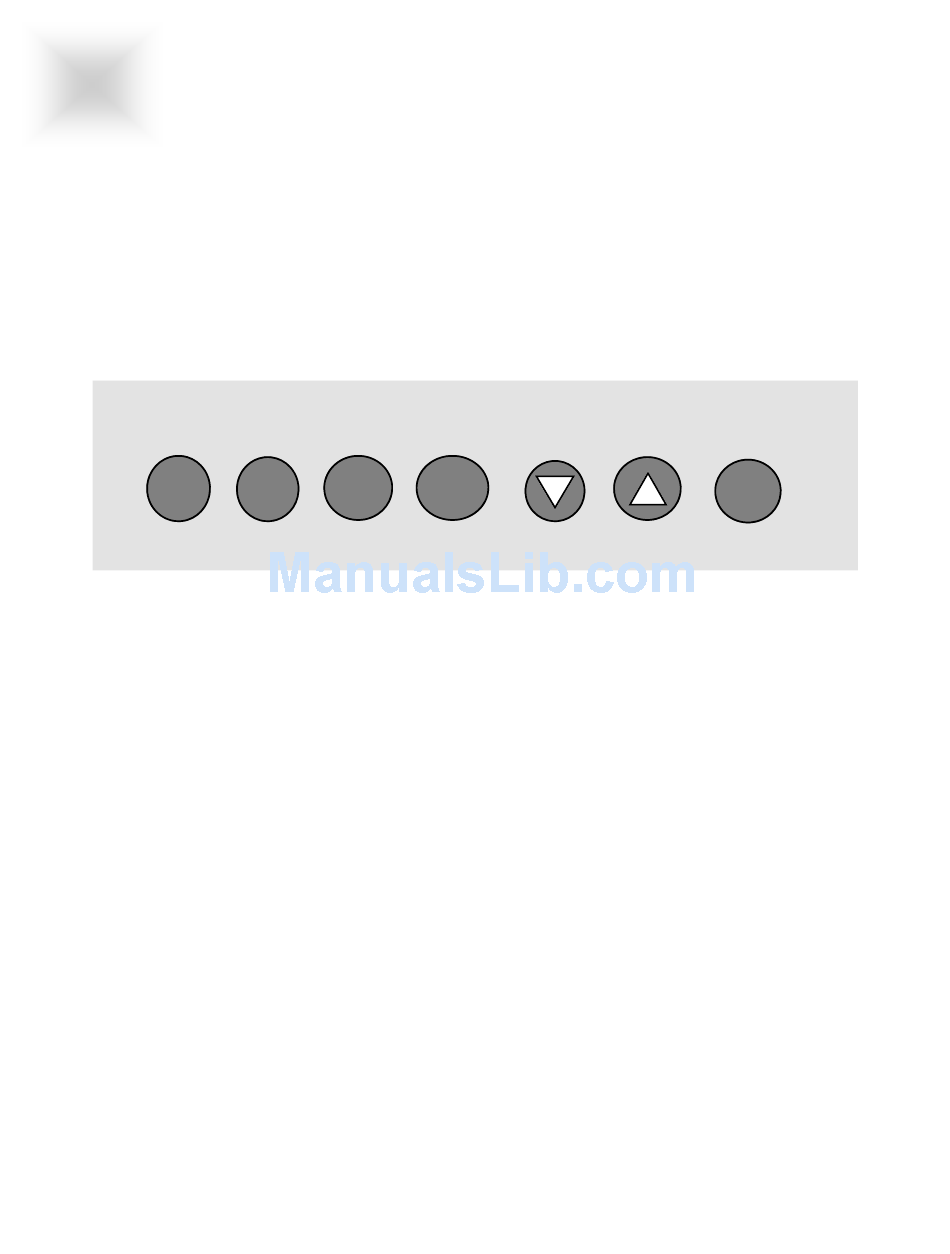

There are seven membrane buttons (as shown above) located on the unit. They will activate
the OSD and allow navigation to all adjustments if your unit requires adjustment.
Press MENU and a major adjustment category will appear. Press DOWN or UP and you will
see the remaining adjustment categories. The actual adjustment categories are listed under
each major category (bold) as shown below.
ADJUSTMENT
Brightness, Contrast, Clock, Phase, H Position, V Position, Auto
COLOR ADJUSTMENT
User, 6500, 9300
SETUP
Language, Image Size, OSD H Position, OSD V Position, Transparency, Zoom
PIP - Picture in Picture
PIP On / Off, PIP Source, PIP Size, PIP H Position, PIP V Position, PIP Image
