Installation
Removing Front Cover
The front cover must be removed in order to access the Radian inverter's AC terminals and other
connections. These include the Remote and Batt Temp ports, as well as several sets of auxiliary
terminals.
Twenty-two machine screws are located around the perimeter. Remove these screws with a #2
Phillips screwdriver. Once they are removed, the cover can be lifted off.
NOTE: The screws which secure the plastic plates to the cover do not need to be removed.
Cover
Screws
(x22)
NOTE: The Radian inverter may ship with only a few screws installed to make it easier to perform the
initial installation. The remaining screws are included in the hardware kit.
16

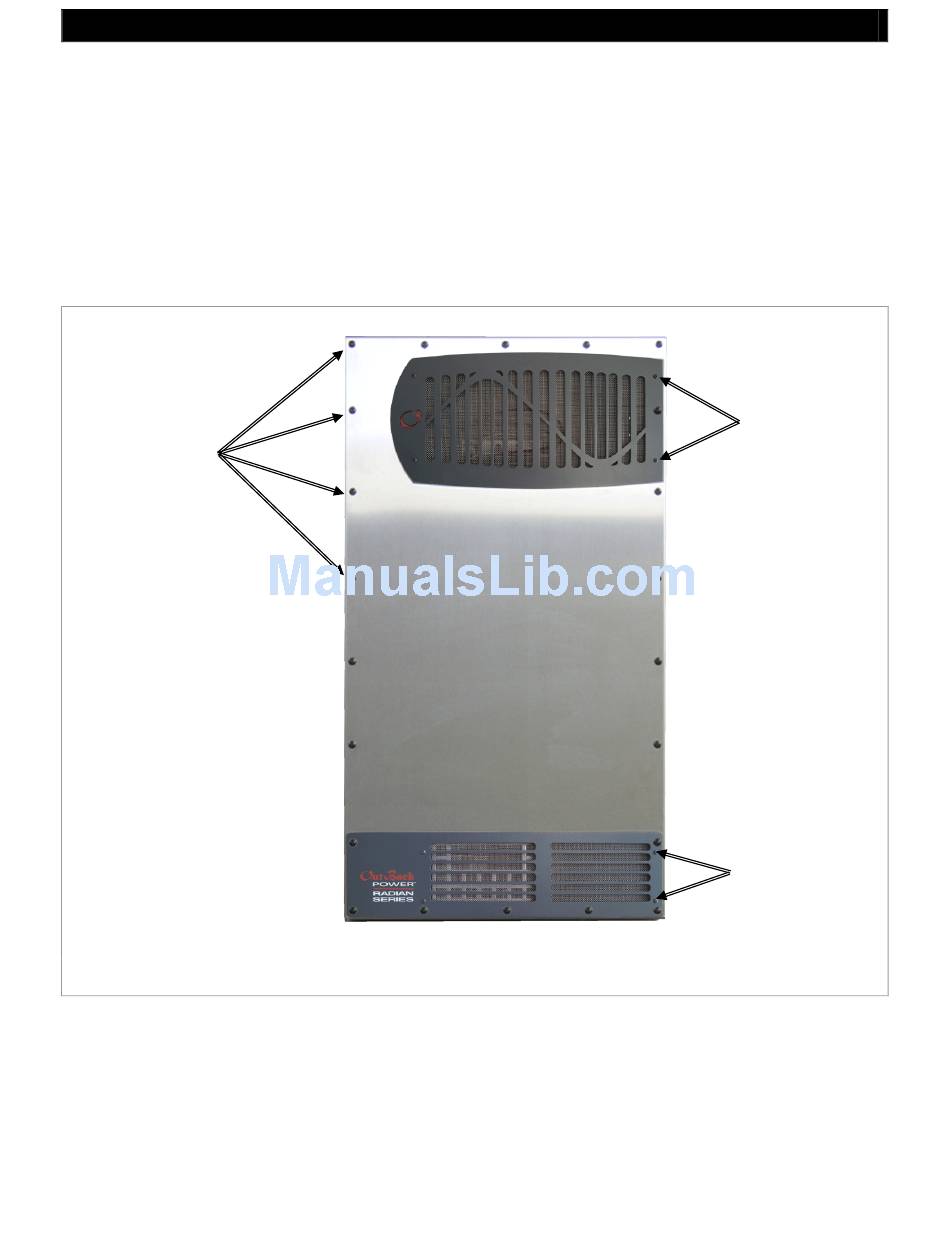

Figure 11 Removing the Front Cover
Plate
Screws
Plate
Screws
900-0160-01-00 Rev A
