Installation
0.45" (1.1 cm)
Width 16.0" (40.6 cm)
45.0"
(114.3 cm)
12
0.45" (1.1 cm)
14.0" (35.6 cm)

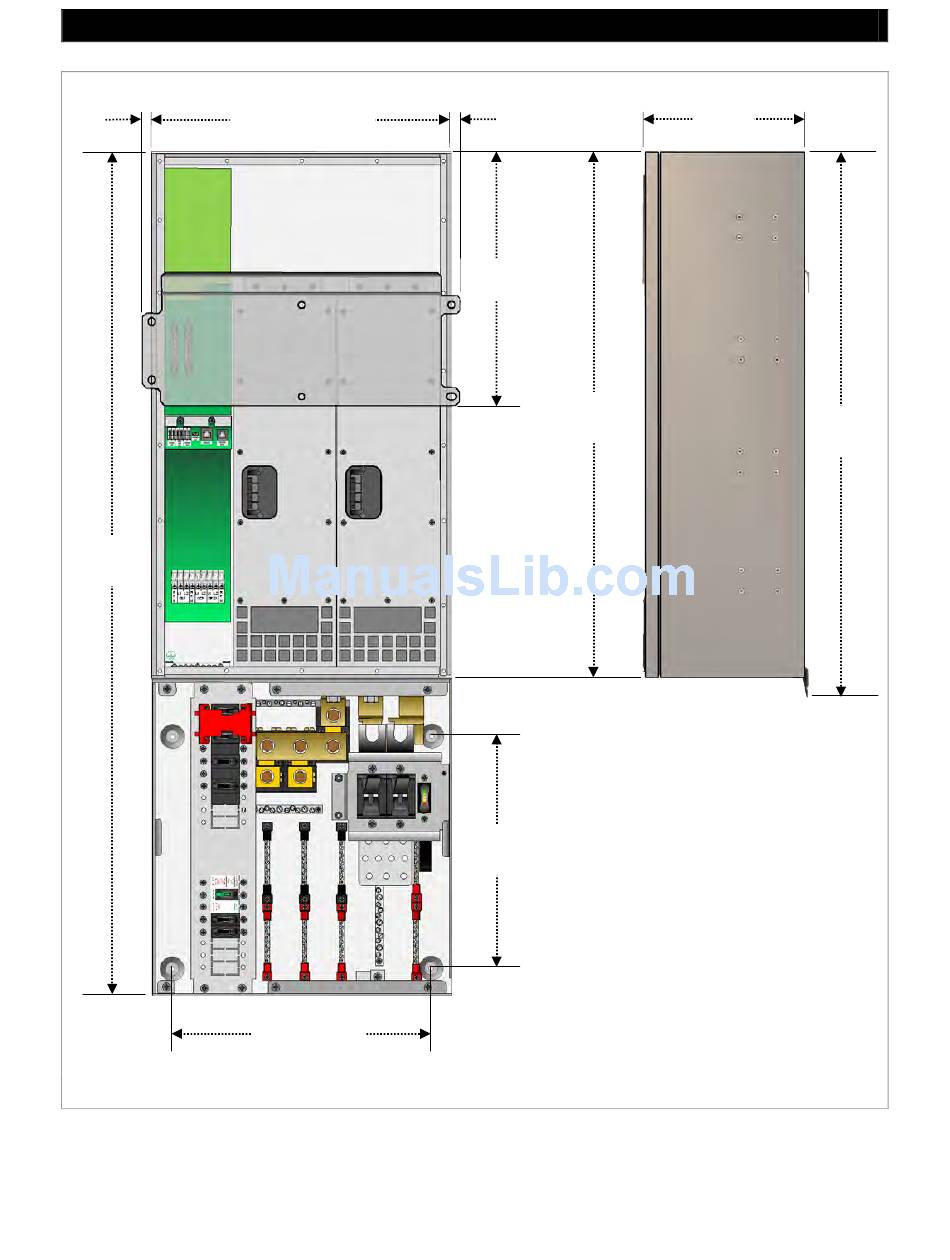

Figure 7
System Dimensions
13.7"
(34.8 cm)
28"
(71.1 cm )
12.5"
(31.8 cm)
This illustration can be used as a
basic template for planning layouts,
marking mounting holes, etc.
when installing a system.
The requirements for mounting the
Radian inverter are described
beginning on the next page.
8.75"
(22.2 cm)
29.0"
(73.7 cm)
900-0160-01-00 Rev A
