XMark Fitness VKR POWERBASE XM-7632 Owner's Manual

Vkr powerbase
Hide thumbs

Advertisement

Quick Links

Download this manual
XM-7632
VKR POWERBASE™
Owner's Manual
8/09

Advertisement

loading
Need help?

Need help?

Do you have a question about the VKR POWERBASE XM-7632 and is the answer not in the manual?

Questions and answers

Related Manuals for XMark Fitness VKR POWERBASE XM-7632

Summary of Contents for XMark Fitness VKR POWERBASE XM-7632

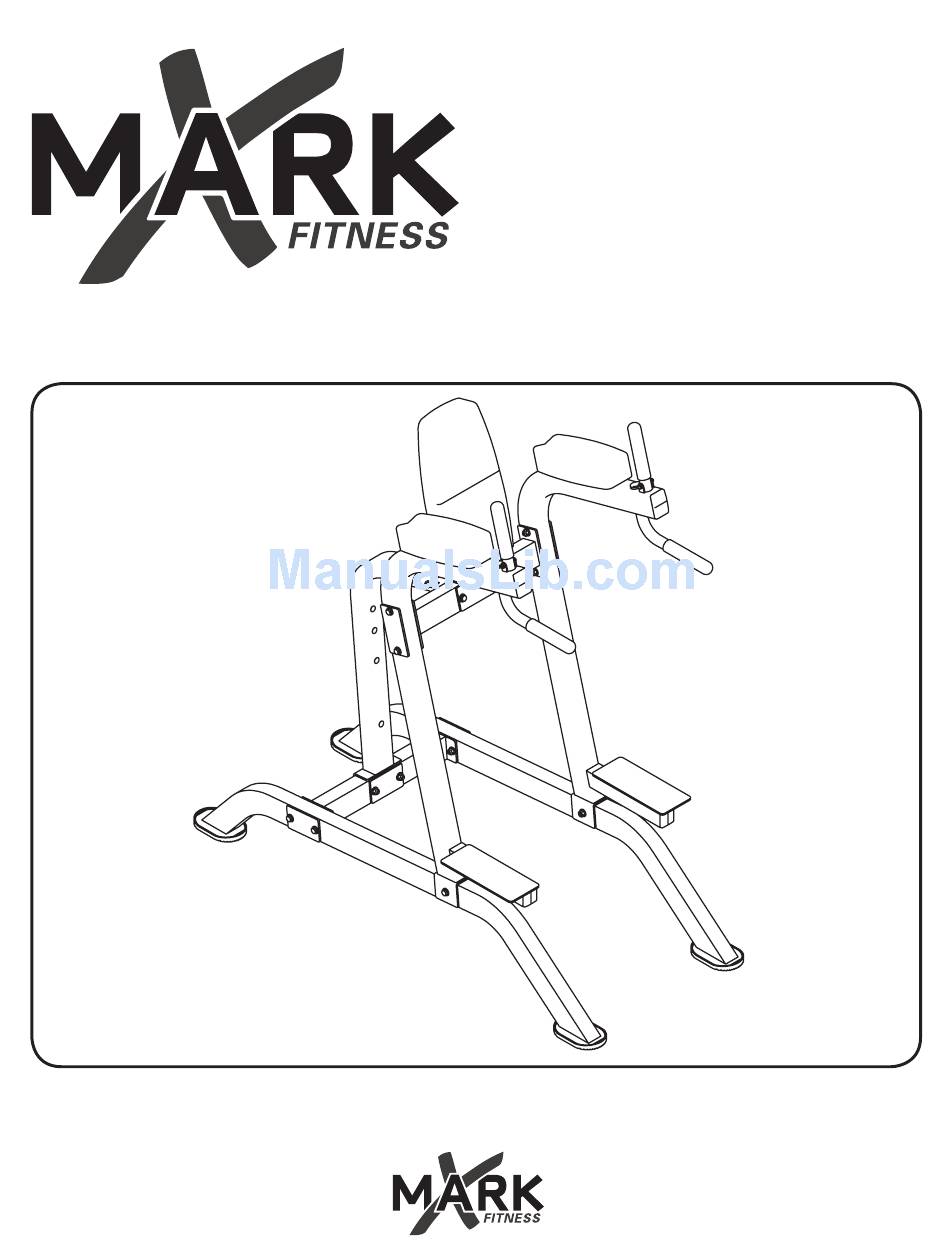

  • Page 1 XM-7632 VKR POWERBASE™ Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 4: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 1 Attach both Base Frames (#1) to the Cross Frame (#4) using: • two 128*76.2*6 Small Plates (#8) • four M10*80 Hex Head Bolts (#22) •...
  • Page 7 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 2 Attach the Left Upright Frame (#2) and Right Upright Frame (#6) to the both Base Frames (#1) using: • two M10*77 Hex Head Bolts (#21) •...
  • Page 8 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 3 Attach the Angle Support (#3) to the Cross Frame (#4) and Back Pad Support Frame (#5) using: • one 128*76.2*6 Small Plate (#8) • one 154*76.2*6 Big Plate (#9) •...
  • Page 9 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 4 Attach the Back Pad (#11) to Back Pad Support Frame (#5) using: • two M10*72 Hex Head Bolts (#20) • two Φ11*Φ23*2 Flat Washers (#26) Attach the Elbow Pads (#10) to Left Upright Frame (#2) and Right Upright Frame (#6) using: •...

  • Page 10: Parts List

    Parts List XM-7632 Parts List Ref # Part # Description P00725 Base Frame P00726 Left Upright Frame P00727 Angle Support P00728 Cross Frame P00729 Back Pad Support Frame P00730 Right Upright Frame P00731 Grip Tube P00667 Small Plate P00508 Big Plate...

  • Page 11: Exploded View

    Exploded View...

  • Page 12: Warranty Information

    VALID ONLY if the product is assembled / installed according to the instructions / directions included with the product. • In a light institutional setting, XMARK Fitness will extend a one year limited parts warranty and a lifetime frame warranty to the original purchaser.
  • Page 13 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
