XMark Fitness XM-7630 Owner's Manual

Adjustable dumbbell bench
Hide thumbs

Advertisement

Quick Links

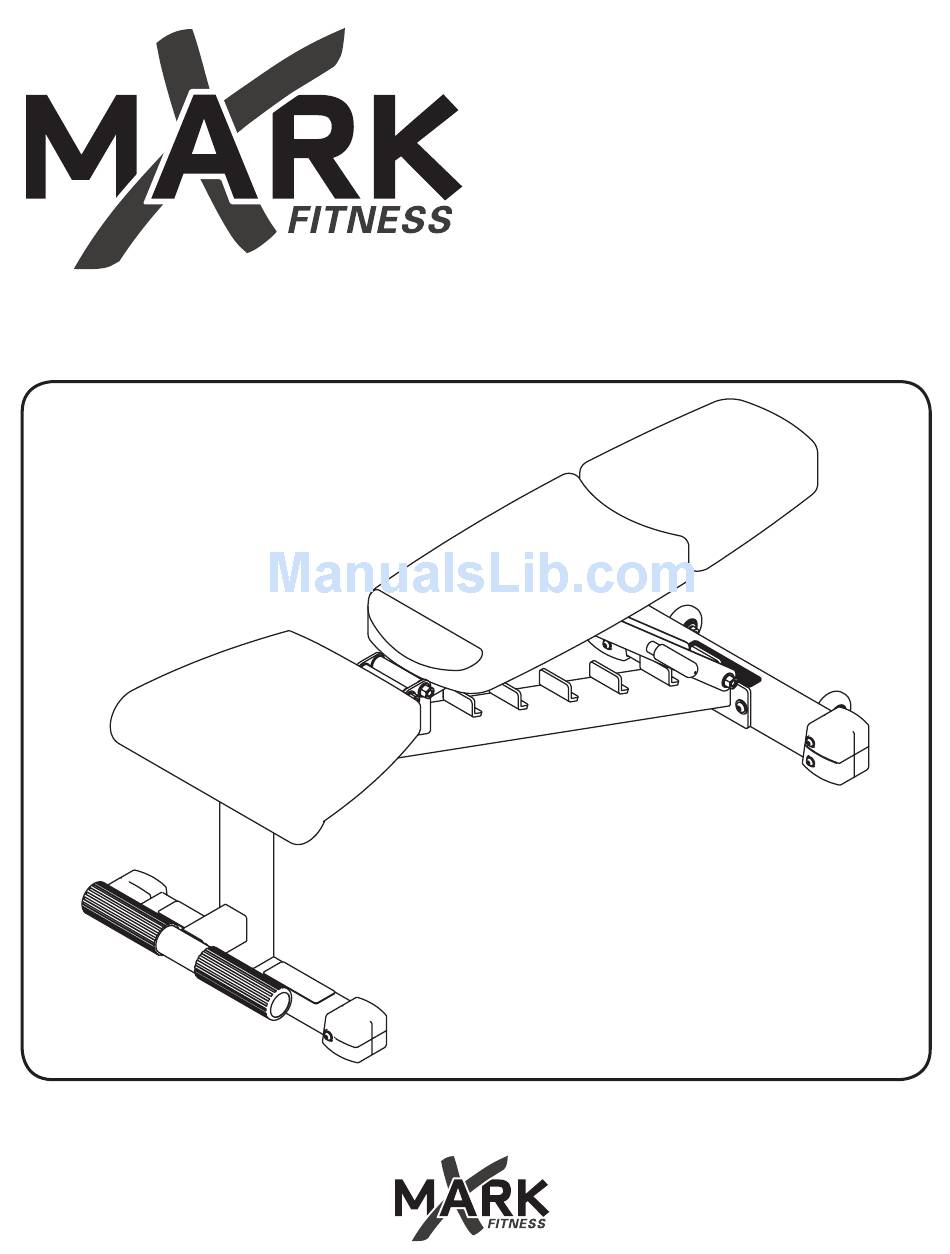

XM-7630
ADJUSTABLE
DUMBBELL BENCH
Owner's Manual
8/09

Advertisement

loading
Need help?

Need help?

Do you have a question about the XM-7630 and is the answer not in the manual?

Questions and answers

Related Manuals for XMark Fitness XM-7630

Summary of Contents for XMark Fitness XM-7630

  • Page 1 XM-7630 ADJUSTABLE DUMBBELL BENCH Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 4: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assembled. Step 1 Attach Main Frame (#1) to Shaped Base (#3) using: • two M10*25 Button Head Cap Screws (#29) • two M12 Nylon lock Nuts (#37) •...
  • Page 7 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 2 Attach Frame Seat Pad Support (#4) to Main Frame (#1) using: • one M12*125 Button Head Cap Screw (#26) • one M12 Nylon lock Nut (#36) • two Φ13*Φ26*2 Flat Washers (#33)
  • Page 8 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 3 Attach Frame Back Pad Support (#5) to Main Frame (#1) using: • one M12*125 Button Head Cap Screw (#26) • one M12 Nylon Lock Nut (#36) • two Φ13*Φ26*2 Flat Washers (#33) Attach Frame Adjustable Back Pad (#6) to Frame Back Pad Support (#5) using: •...
  • Page 9 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 4 Attach Upper Back Pad (#8) and Lower Back Pad (#9) to Frame Back Pad Support (#5) using: • four M10*70 Button Head Cap Screws (#28) • four Φ11*Φ23*2 Flat Washers (#34) Attach Seat Pad (#10) to Frame Seat Pad Support (#4) using: •...

  • Page 10: Parts List

    Parts List XM-7630 Parts List Ref # Part # Description P00701 Main Frame P00247 Rear Base P00702 Shaped Base P00703 Frame Seat Pad Support P00047 Frame Back Pad Support P00645 Frame Adjustable Back Pad P00413 Nylon Spacer P00048 Upper Back Pad...

  • Page 11: Exploded View

    Exploded View...

  • Page 12: Warranty Information

    VALID ONLY if the product is assembled / installed according to the instructions / directions included with the product. • In a light institutional setting, XMARK Fitness will extend a one year limited parts warranty and a lifetime frame warranty to the original purchaser.
  • Page 13 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
