Page 1: Flat Bench

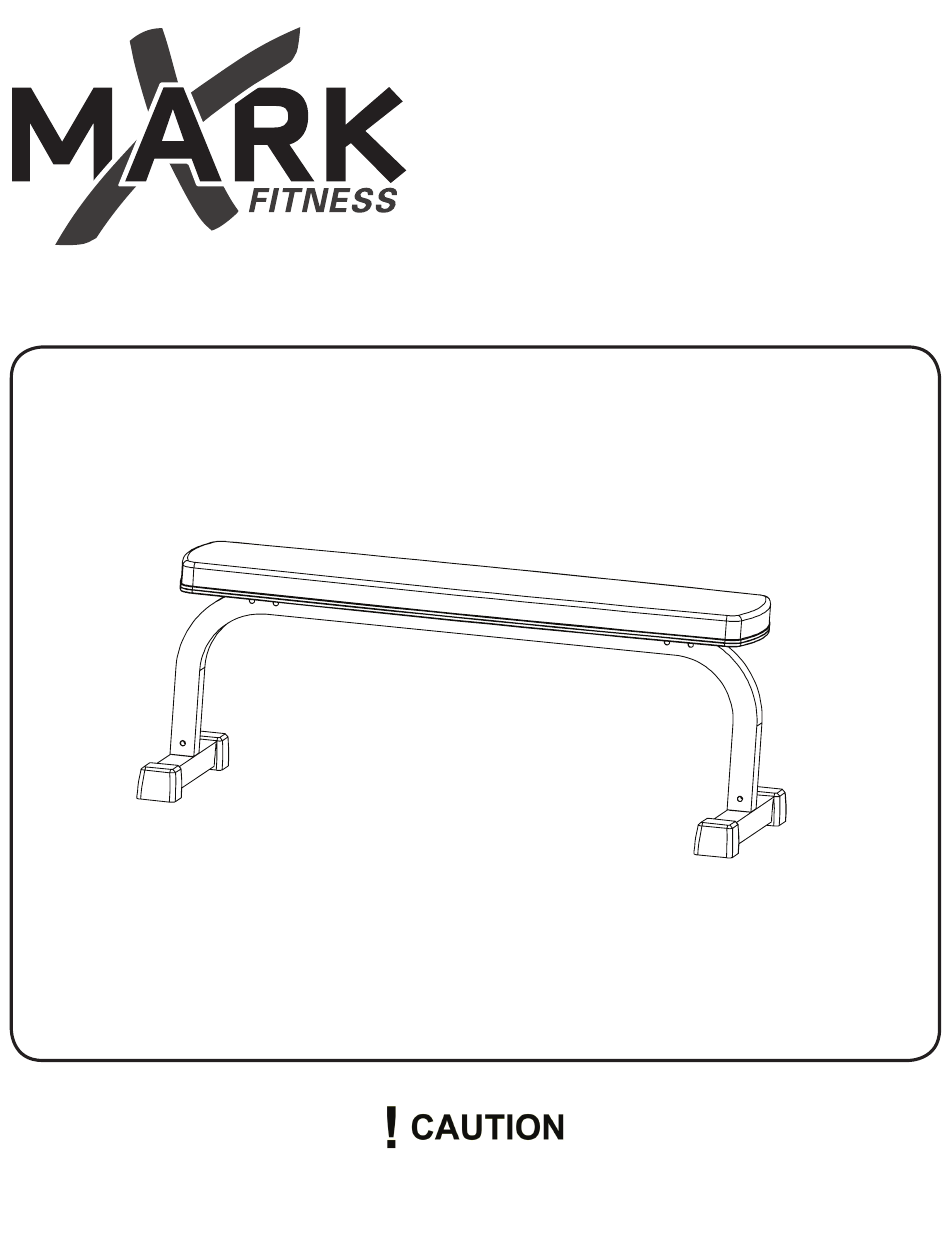

XM-4413 FLAT BENCH Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09... - Page 2 SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
-
Page 3: Before You Start
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer. - Page 4 Assembly Prior to assembly, remove components from the box and verify that all the listed parts were supplied. Unpack all parts and place them in a clear area. Be sure to remove all packing material. NOTE: Hand tighten bolts and lock nuts until machine is fully assembled.
-
Page 5: Parts Identifier
Parts Identifier See the drawings below to identify the hardware used in the assembly. The number in paren- theses is the reference number of the part. Note: Some hardware may be pre-installed in some parts. M8 x 20mm Bolt( 9 ) M10 Washer ( 7 ) M10 x 65mm Bolt ( 6 ) M10 Locknut ( 8 ) -
Page 6: Parts List
Parts List XM-4413 Parts List Key NO. Part No. Description 204052902503 MAIN FRAME, XM-4413 204052901503 LEG BASE, XM-4413 307040000624 PAD, XM-4413 204052903503 SEAT SUPORT 307010000042 SQUARE END FOOT 50 306010020727 BOLT , M10X65MM 306010023108 WASHER M10 306010022504 LOCK NUT, M10... - Page 7 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
