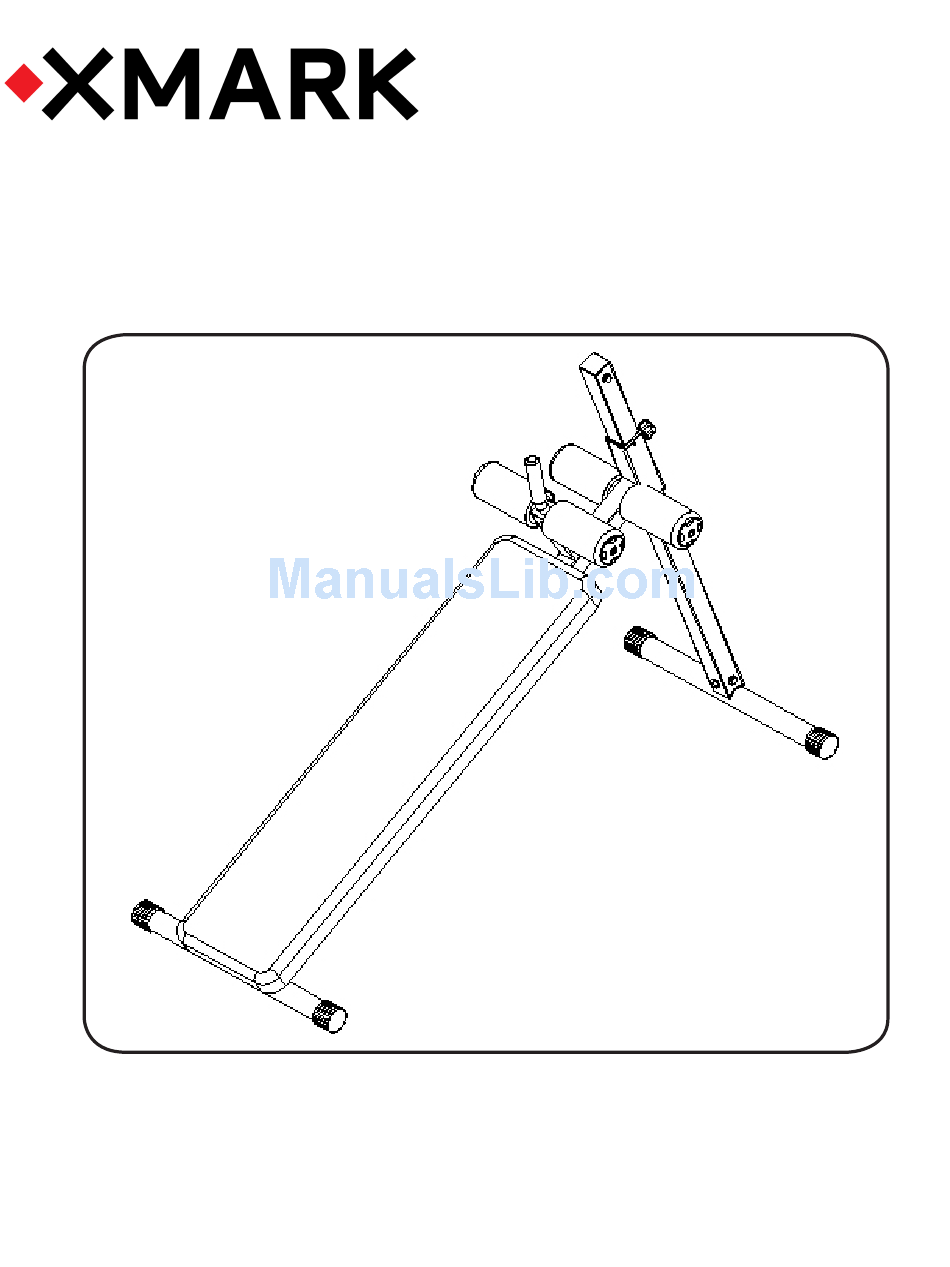

- Page 1 XM-4380-WHITE ADJUSTABLE AB BENCH Owner’s Manual !CAUTION Read all precautions and instructions in this manual before using this equipment. V. 2...
-
Page 2: Table Of Contents
Table of Contents Before You Begin Important Safety Information Assembly Exploded View Parts List... -
Page 3: Before You Begin
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer. -
Page 4: Important Safety Information
SAFETY PRECAUTIONS ‡ This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 5: Assembly
STEP 01 1. Attach part (2) to part (5) with bolt assembly (10) and bolt assembly (11). STEP 02 2. Attach part (1) to another part (5) with bolt assembly (10) and bolt assembly (11). - Page 6 STEP 03 1. Attach part (2) to part (1) with part (8). 2. Attach bolt assembly (10) to part (1). STEP 04 1. Attach two parts (4) to part (2), and attach two parts (7) and two parts (13) to each part (4).
- Page 7 STEP 05 1. Attach two parts (6) to part (2) bolt assembly (9), the same steps to do it twice. 2. Attach part (3) to part (6) with four bolt assemblies (12).
-
Page 8: Exploded View
PARTS LIST NUMBER DESCRIPTION QUANTITY FRONT SUPPORT MAIN FRAME BACK SEAT CUSHION FOAM TUBE BOTTOM SUPPORT BACK SEAT CUSHION SUPPORT FOAM ROLLER (WITH JACKET) POP PIN SCREW M10*75 + TWO WASHERS + NUT SCREW M10*65 + TWO WASHERS + NUT SCREW M10*20 + WASHER SCREW M6*20 + WASHER FOAM ROLLER CAP...
