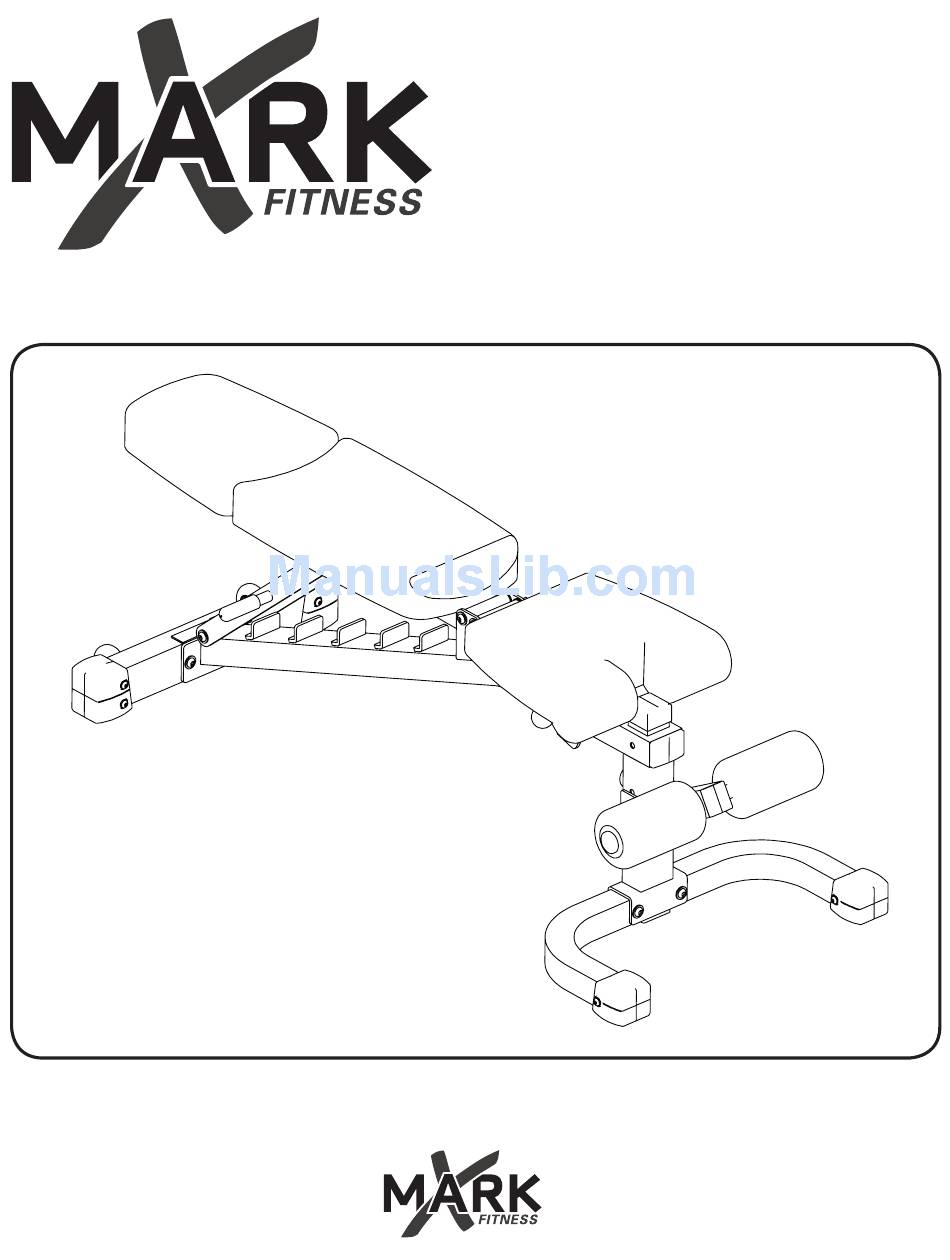

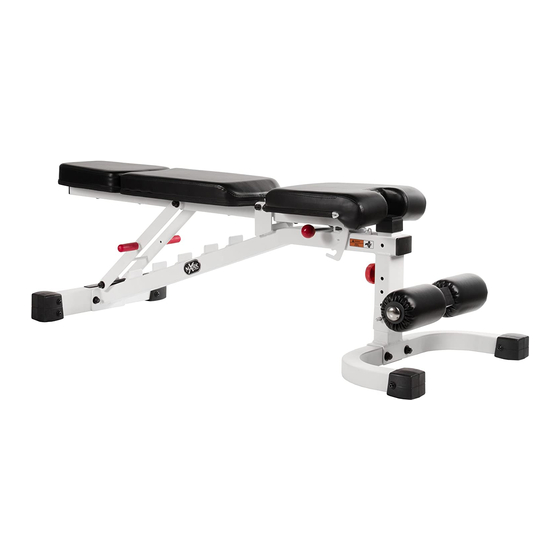

  • Page 1 XM-7604 FID BENCH Owner’s Manual 8/09...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 4: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 5: Assembly

    Assembly...
  • Page 6 • two M12*75 Button Head Cap Screw (#15) • four Φ13*Φ26*2 Flat Washer (#13) • two M12 Nylon Lock Nut (#14) Attach the Knob Bolt (#26) into Main Frame (#1). This Knob is used to tighten down any attachment used in your XM-7604 Bench.
  • Page 7 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 2 Attach the Seat Pad (#9) to the Seat Pad Support Frame (#4) using: • two M10*70 Button Head Cap Screw (#17) • two Φ11*Φ23*2 Flat Washer (#18) Step 3 Attach the Pin (#10) to Main Frame (#1) using: •...
  • Page 8 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 5 Attach the Upper Back Pad (#8) & Lower Back Pad (#41) to Back Pad Support Frame (#5) using: • four M10*70 Button Head Cap Screw (#17) •...

  • Page 9: Parts List

    Part # Description P00244 Main Frame, XM-7604 P00245 U-Shaped Base P00247 Rear Base, XM-7604 P00412 Frame, Seat Pad Support XM-7604 P00047 Frame, Back Pad Support XM-7604 P00645 Frame, Adjustable Back Pad XM-7604 P00413 Nylon Spacer P00048 Upper Back Pad XM Series...

  • Page 10: Exploded View

    Exploded View...

  • Page 11: Warranty Information

    VALID ONLY if the product is assembled / installed according to the instructions / directions included with the product. • In a light institutional setting, XMARK Fitness will extend a one year limited parts warranty and a lifetime frame warranty to the original purchaser.
  • Page 12 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
