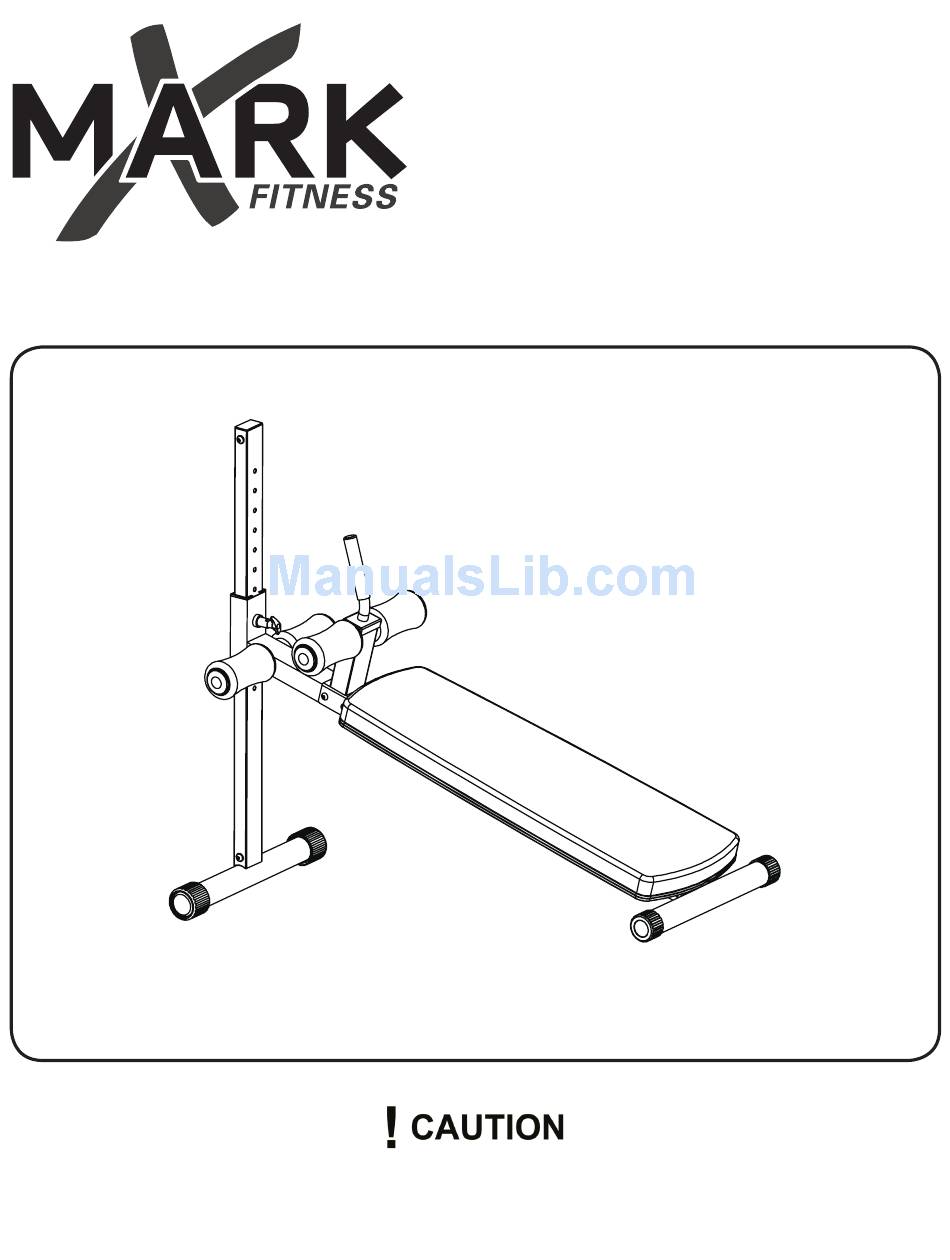

- Page 1 XM-4416.1 Adjustable AB Bench Owner’s Manual Read all precautions and instructions in this manual before using this equipment.
- Page 2 Table of Contents Before You Begin Important Safety Information Assembly Exploded View/ Parts List...
-
Page 3: Before You Begin
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer. -
Page 4: Important Safety Information
SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. - Page 5 Assembly Attach the Upright Frame (1) to the Front Base (2) with two M10 x 20mm Screws (24) and two M10 Washers (15). Do not tighten the Screws yet. Attach the Rear Base (5) to the Main Frame (23) with one M10 x 90mm Bolt (17),two M10 Washers (15) and one M10 Locknut (16).
- Page 6 Caps ( 9) into the ends of the Foam Roller Tube. Repeat this step with other Foam Ruller Tube (4) and the Main Frame (23). Make sure that all parts are properly tightened before you use the ADJUSTABLE AB BENCH! Congratulations!! You have completed assembly of your XM-4416.1!
-
Page 7: Part List
Exploded View/Part List PART LIST Key No. Description Qty. Key No. Description Qty. Upright Frame M8 Washer Front Base M10 x 95mm Bolt Arm Frame M10 Washer Foam Roller Tube M10 Locknut Rear Base M10 x 90mm Bolt Cover Rectangular Foam Roller Handle Grip Transport Wheel... - Page 8 Customer Service: 1-800-719-4605...
