Summary of Contents for XMark Fitness XM-9050

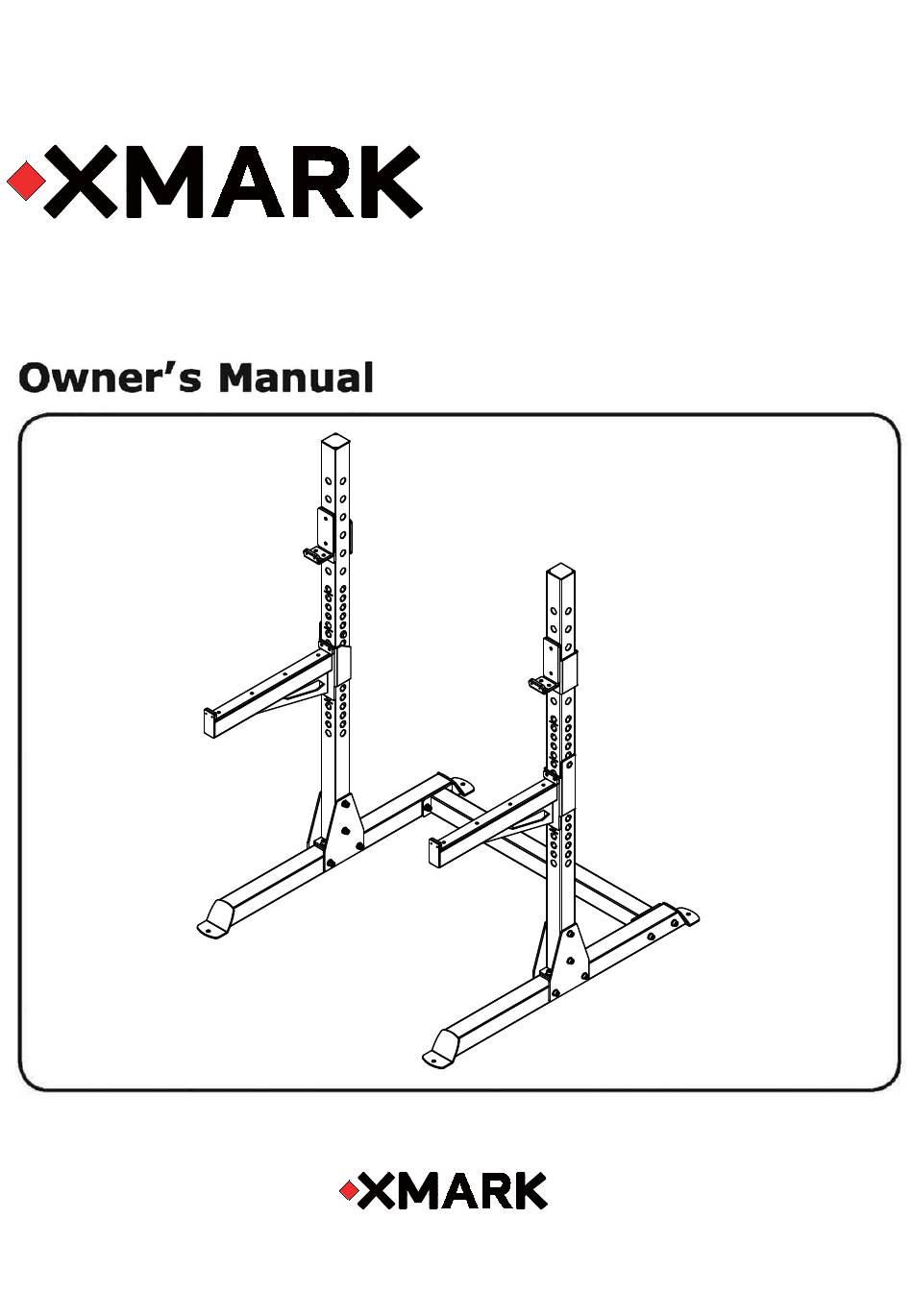

- Page 1 XM-9050 Commercial Multi Press Squat Rack 7/17...
- Page 5 Item No. Description Upright Tube-1767 Base Frame-1350 Cross Bar-1080 Upright Support Left J Hook Right J Hook Left Safety Spotter Right Safety Spotter Expansion Screw Socket Head Cap Screw M12*100 Socket Head Cap Screw M12*105 Socket Head Cap Screw M12*20 Plum Shaped Screw Flat Washer φ12 Nylon Lock Nut M12...
- Page 8 bolts, b bolts...
- Page 9 1. Attach the Base Frames (2#) to the Cross Bar (3#) using: four M12*100 SHCS (8#) eight φ12 Flat Washer (12#) four M12 Nylon Lock Nut (13#) 2. Attach the Upright Tubes (1#) to the Base Frames (2#) using: two M12 *20 SHCS (10#) twoφ12 Flat Washer (12#) 3.
- Page 10 1. Attach the J Hooks (5L# & 5R) to the Main Frames (1#) using: two Plum Shaped Screws (11#) 2. Attach the Safety Spotters (6L# & 6R) to the Main Frames (1#)
- Page 11 Customer Service: 1-800-719-4605...
