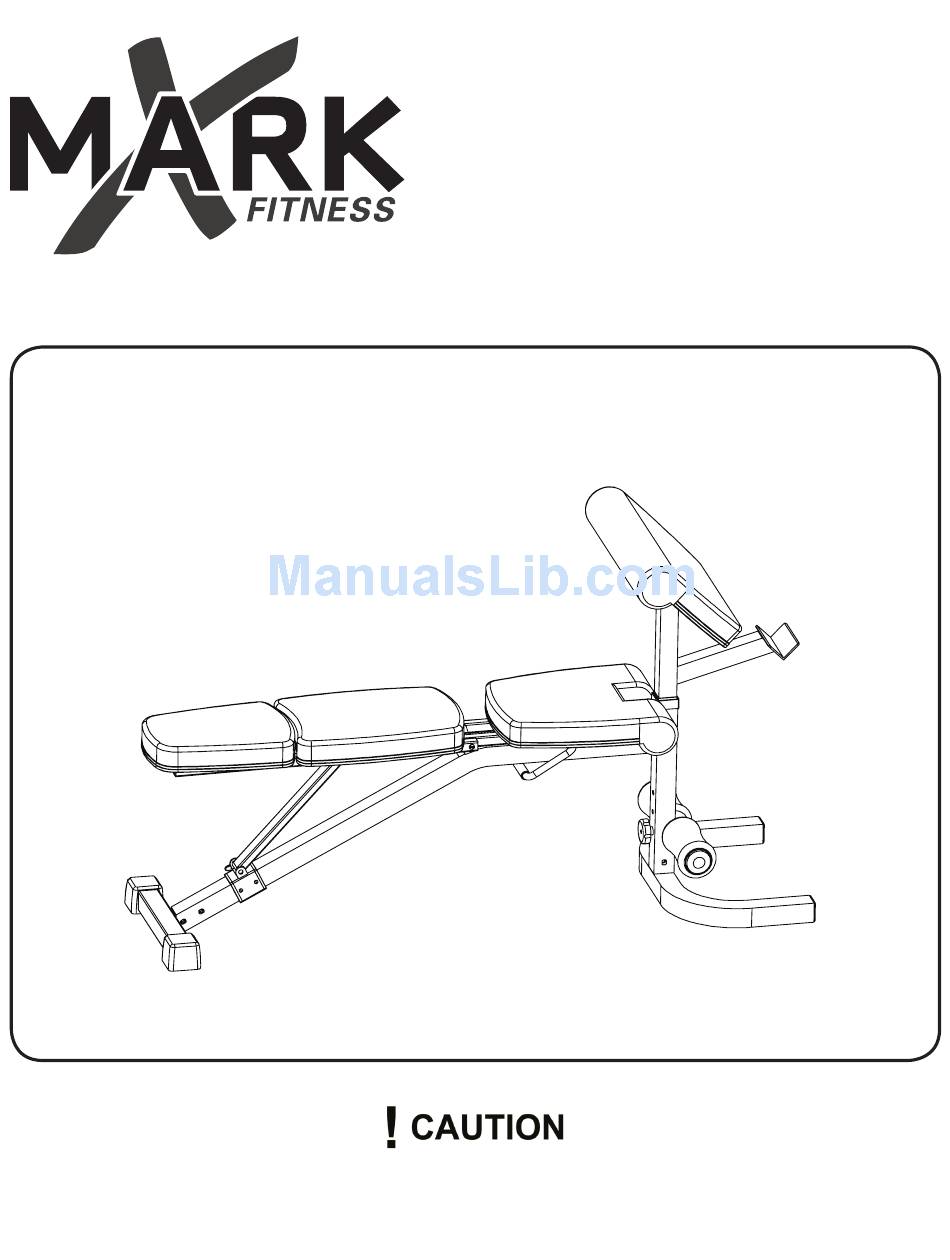

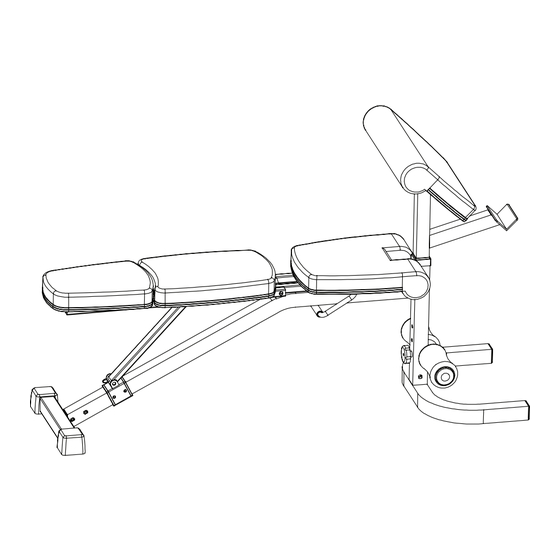

XM-4417
FID BENCH with PREACHER
Owner's Manual
Read all precautions and
instructions in this manual before
using this equipment.
8/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM-4417 and is the answer not in the manual?

Questions and answers

Related Manuals for XMark Fitness XM-4417

Summary of Contents for XMark Fitness XM-4417

  • Page 1 XM-4417 FID BENCH with PREACHER Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09...

  • Page 2: Table Of Contents

    Table of Contents Before You Begin Important Safety Information Assembly Parts List Exploded View Warranty Information...

  • Page 3: Before You Begin

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 4: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 5: Assembly

    Assembly Washer M6 (27) M6X40 Bolt(24) M10X20 Bolt (22) Washer M10 (25) Locknut M10 (35) M10X70 Bolt(23) Washer M12 (33 ) Locknut,M12 (34) M12X180 mm Bolt (31)
  • Page 6 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 1 A) Attach the U-Shaped Front Base (#7) to the front part of the Main Frame (#5) and secure with three washers M10 (#25), three M10X20 Bolts (#22). B) Pull the Pop Pin (#12) as far as it will go and slide Adjustment Tube Carriage (#10) onto the the rear part of the Main Frame (#5).
  • Page 7 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 2 Attach the Seat Supports (#29) and the Backrest Supports (#9) to the Main Frame (#5) with one M12X180mm Bolt (#31), two M12 Washers (#33), one Plastic Sleeve (#32) and one M12 Lock Nut (#34).
  • Page 8 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 3 Attach Seat Pad (#2) to Seat Supports (#29) using four Washers M6 (#27) and four M6X40 Bolt (#24). Insert the top end of the Adjustment Bar (#8) into the holes on both the Backrest Supports (#9).

  • Page 9: Parts List

    Parts List XM-4417 Parts List Key NO. Part No. Description 307040000557 Curl Pad 307040000756 Seat Pad 307040000757 Upper Back Pad 204043001503 Arm Curl Stand 204054701503 Main Frame 307040000758 Lower Back Pad 204022810503 Front Base 204022804503 Adjustment Tube 204056001503 Backrest Support...

  • Page 10: Exploded View

    Exploded View...

  • Page 11: Warranty Information

    Should any product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon XMARK Fitness’...
  • Page 12 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
