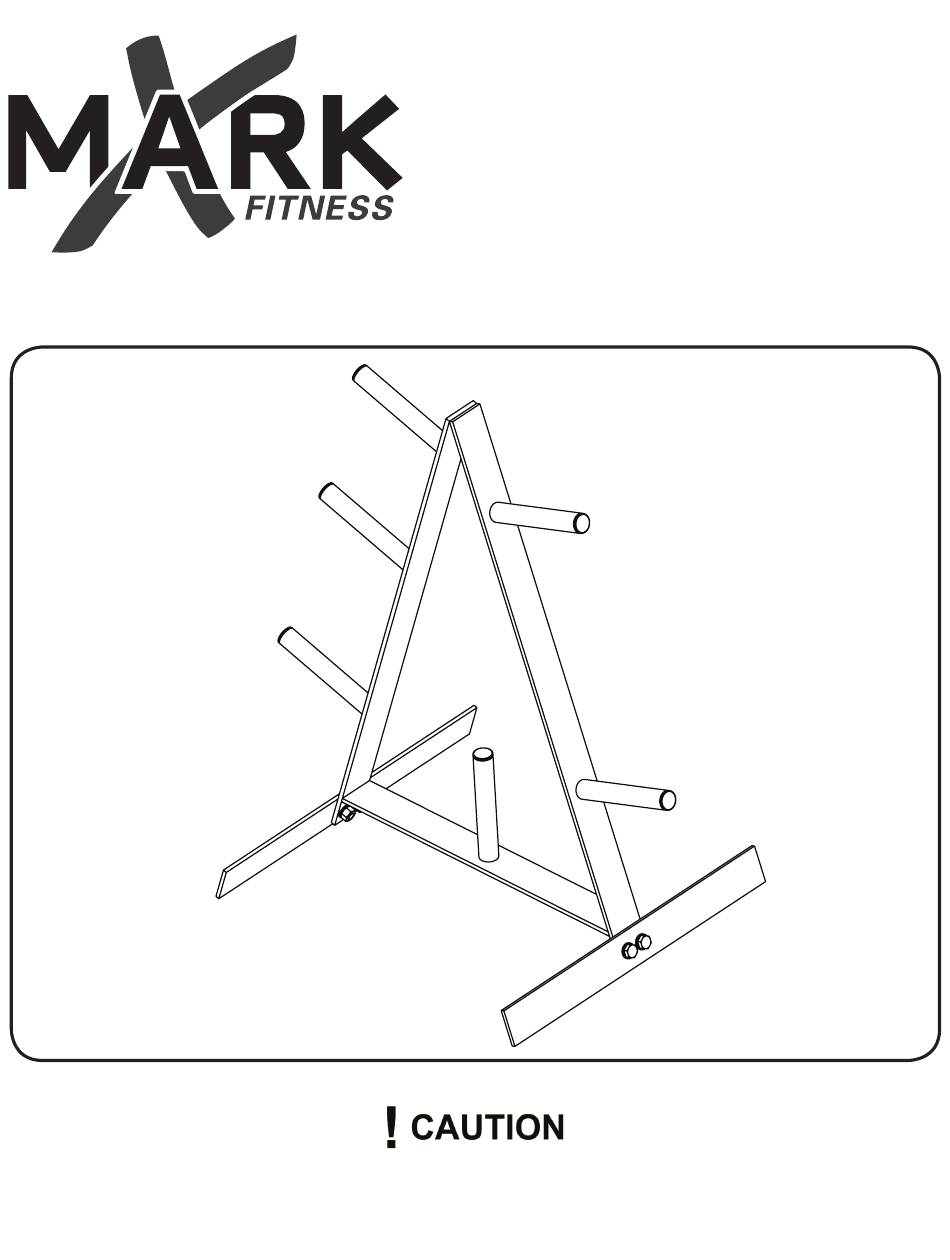

- Page 1 XM-3152 STANDARD PLATE TREE Owner’s Manual Read all precautions and instructions in this manual before using this equipment. 8/09...
- Page 2 Table of Contents Before You Begin Important Safety Information Parts Identifier Exploded View Parts List Warranty Information...
- Page 3 This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.
- Page 4 SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
- Page 5 Parts Identifier See the drawings below to identify the hardware used in the assembly. The number in paren- theses is the reference number of the part. Note: Some hardware may be pre-installed in some parts. M10 Locknut (B1) M10 x 25mm Bolt (A1)
- Page 6 Exploded View...
- Page 7 Parts List XM-3152 Parts List Key NO. Part No. Description 204020402503 MAIN FRAME 204020401503 BASE 307010000410 ROUND INNER PLUG 25MM 306010020037 M10 x 25 BOLT 306010022504 M10 LOCK NUT 299020404500 BOLT PACK 308030000375 MANUAL XM-3152...
- Page 8 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
