Evaluation Board for the AD9520-0, AD9520-1, AD9520-2, AD9520-3, AD9520-4,

FEATURES

Simple power connection using 6 V wall adapter and
on-board LDO voltage regulators
LDOs are easily bypassed for power measurements
5 ac-coupled differential LVPECL SMA connectors
7 LVPECL differential headers for additional outputs
SMA connectors for
2 reference inputs
Charge pump output
Clock distribution input
USB connection to PC
Microsoft Windows-based evaluation software
with simple graphical user interface
On-board PLL loop filter
Easy access to digital I/O and diagnostic signals via
I/O header
Status LEDs for diagnostic signals

APPLICATIONS

Clocking of analog-to-digital and digital-to-analog
converters up to 2.9 GHz
Networking and communications line cards
Test and measurement equipment
Wireless base stations, controllers
Clock cleanup/jitter attenuation
Clock distribution
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
and
AD9520-5
Product Series
AD9520
EVALUATION BOARD

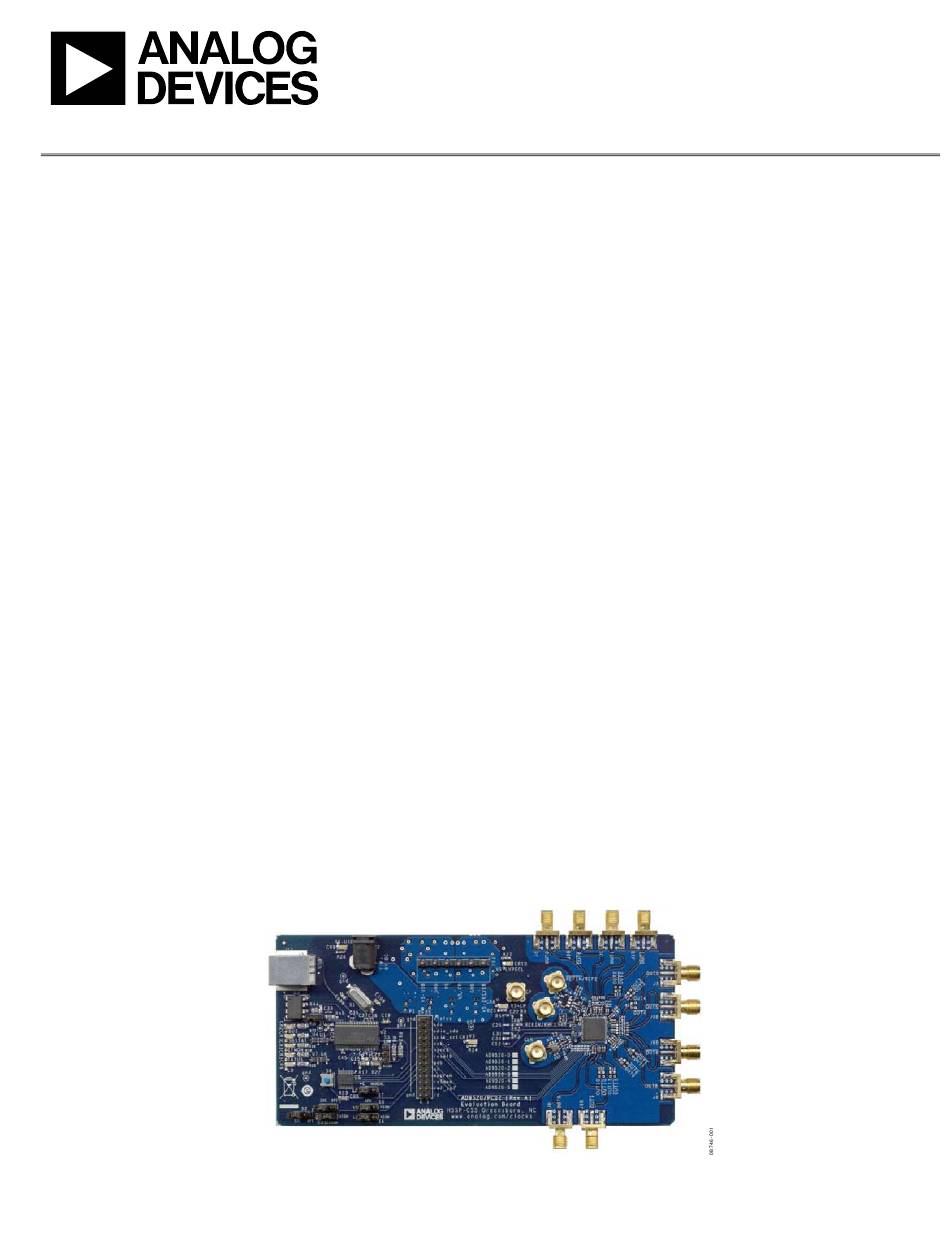

Figure 1.
Rev. A | Page 1 of 16
Evaluation Board User Guide

GENERAL DESCRIPTION

The
AD9520
product series from
very low noise phase-locked loop (PLL) clock synthesizers
featuring an integrated voltage controlled oscillator (VCO),
clock dividers, and up to 24 outputs. The
series features automatic holdover and a flexible reference input
circuit allowing very smooth reference clock switching. The
AD9520
product family also features the necessary provisions
for an external VCXO.
The
AD9520
evaluation board is a compact, easy to use
platform for evaluating all features of the
AD9520-5. This user guide covers all six versions of the
AD9520
product family.
Although the Quick Start Guide to the AD9520 PLL section
applies specifically to the AD9520-4, increasing the N
(feedback) divider and channel divider increases the VCO
frequency to the allowable frequency range of other
versions.
For the AD9520-5, which lacks the internal VCO, certain
portions of this user guide that apply to the internal VCO (such
as VCO calibration) can be ignored.
This document covers the
AD9520
which is identical to the
AD9520
differential signaling (LVDS) outputs, is covered in the UG-077.
For convenience, detailed information from the
sheet has been included here. Use this user guide in conjunction
with the
AD9520
and
AD9522
documentation available from the Analog Devices, Inc. website.
UG-076
AD9520-0
to
AD9520-5
are
AD9520
product
AD9520-0
to
AD9520
family. The
AD9522
family,
except that it has low voltage
AD9520
data
data sheets and software

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD9520-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices AD9520-0

  • Page 1: Features

    Evaluation Board User Guide UG-076 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluation Board for the AD9520-0, AD9520-1, AD9520-2, AD9520-3, AD9520-4, AD9520-5 Product Series FEATURES GENERAL DESCRIPTION...
  • Page 2: Table Of Contents

    UG-076 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Register W/R Box ................9 Applications ..................1 SYNC, PD (Power Down), and RESET Buttons .......9 General Description ................. 1 EEPROM Control Window ............9 AD9520 Evaluation Board ............... 1 Reference (R) Divider Window ...........9 Revision History ................
  • Page 3: Evaluation Board Hardware

    Evaluation Board User Guide UG-076 EVALUATION BOARD HARDWARE The following instructions are for setting up the physical Connect an oscilloscope, spectrum analyzer, or other lab connections to the AD9520 evaluation board. equipment to any of the J0 to J9 SMA connectors on the right side of the board.
  • Page 4: Evaluation Board Software

    The latest evaluation software and documentation can be software is running, the window in Figure 2 appears to prompt downloaded from the Analog Devices website. the user to load the evaluation board with the evaluation If the software was downloaded, skip to Step 3. If using the...
  • Page 5: Quick Start Guide To The Ad9520 Pll

    Evaluation Board User Guide UG-076 QUICK START GUIDE TO THE AD9520 When the evaluation software is installed, the evaluation board is connected, and the software is loaded, use the following steps to configure and lock the PLL. These steps assume that the input signal is present, the evaluation board has not been modified, and that the PLL loop filter is suitable for the user’s application.
  • Page 6 UG-076 Evaluation Board User Guide Program the R (reference) divider by clicking the R DIVIDER box at the top of the main window. Set the desired value and click OK (see Figure 13). Program the N (feedback) divider by clicking the N DIVIDER box at the top of the main window.
  • Page 7: Evaluation Software Components

    Evaluation Board User Guide UG-076 EVALUATION SOFTWARE COMPONENTS MAIN WINDOW Figure 8. Evaluation Software Main Window AD9520 evaluation software is composed of subsections When a subwindow closes after clicking OK, the WRITE box that correspond to the major functional blocks of the AD9520. on the main window (under the REGISTER W/R section) may These subsections are listed in the following sections, and each blink red.
  • Page 8: Pll Reference Input Window

    UG-076 Evaluation Board User Guide PLL REFERENCE INPUT WINDOW PLL CONFIGURATION WINDOW The Reference Input Control window is shown in Figure 10 The PLL Configuration window shown in Figure 11 is opened and is accessed by clicking either of the triangular buffer by clicking the Config PLL button on the main screen.
  • Page 9: Changes To Sync, Pd (Power Down), And Reset Buttons Section, And Reference (R) Divider Window Section

    Evaluation Board User Guide UG-076 REGISTER W/R BOX To load the values stored in the EEPROM, ensure that the EEPROM pin is pulled high and reset the AD9520. The REGISTER W/R (write/read) box has three buttons and three check boxes. The EEPROM pin is pulled high by placing the S4 EEPROM jumper (located in the lower left corner of the evaluation board) The WRITE button transfers the values stored in the evaluation...
  • Page 10: Feedback (N) Divider Window

    UG-076 Evaluation Board User Guide FEEDBACK (N) DIVIDER WINDOW R AND N DELAY WINDOW The N Divider window shown in Figure 14 is accessed by The N delay window shown in Figure 15 is accessed by clicking clicking the N DIVIDER box. It allows the user to set the the N DELAY box on the main window.
  • Page 11: Charge Pump Setup Window

    Evaluation Board User Guide UG-076 CHARGE PUMP SETUP WINDOW VCO CALIBRATION WINDOW The Charge Pump Setup window shown in Figure 17 is The Calibrate VCO window shown in Figure 19 is accessed by accessed by clicking the CHARGE PUMP box in the main clicking the Cal VCO button in the main window.
  • Page 12: Output Driver Window

    UG-076 Evaluation Board User Guide OUTPUT DRIVER WINDOW OUT0 through OUT8 are ac-coupled with 200 Ω pull-down resistors on each output. This termination scheme is ideal for The output driver window shown in Figure 22 is accessed by LVPECL drivers. However, this scheme degrades the CMOS clicking any of the numbered triangular output driver symbols driver performance.
  • Page 13: Evaluation Software Menu Items

    Evaluation Board User Guide UG-076 EVALUATION SOFTWARE MENU ITEMS Figure 24. Menu Bar MENU BAR Configure Serial Port File Menu The I/O Interface window allows the user to control how the USB controller interacts with the AD9520 serial port (see The file menu has the following options.
  • Page 14: Ad9520 Pll Loop Filter

    AD9520, found on the evaluation board. including the design of the PLL loop filter. The Analog Devices website has a sample ADIsimCLK...
  • Page 15: Using The Evaluation Board To Program An Ad9520 On A User Board

    Evaluation Board User Guide UG-076 USING THE EVALUATION BOARD TO PROGRAM AN AD9520 ON A USER BOARD This guide shows how to use an AD9520 evaluation board to Click Reset Serial Port and then click Detect Current program an AD9520 on the board designed by the user board Configuration.
  • Page 16: Ad9520 Binary File Generation
