FEATURES

8 channels of LNA, VGA, AAF, and ADC

Low noise preamplifier (LNA)

Input-referred noise voltage = 1.26 nV/√Hz

(gain = 21.3 dB) @ 5 MHz typical

SPI-programmable gain = 15.6 dB/17.9 dB/21.3 dB

Single-ended input; V

maximum = 733 mV p-p/

550 mV p-p/367 mV p-p

Dual-mode active input impedance matching

Bandwidth (BW) > 100 MHz

Full-scale (FS) output = 4.4 V p-p differential

Variable gain amplifier (VGA)

Attenuator range = −42 dB to 0 dB

SPI-programmable PGA gain = 21 dB/24 dB/27 dB/30 dB

Linear-in-dB gain control

Antialiasing filter (AAF)

Programmable 2nd-order low-pass filter (LPF) from

8 MHz to 18 MHz

Programmable high-pass filter (HPF)

Analog-to-digital converter (ADC)

12 bits at 10 MSPS to 50 MSPS

SNR = 70 dB

SFDR = 75 dB

Serial LVDS (ANSI-644, IEEE 1596.3 reduced range link)

Data and frame clock outputs

Includes an 8 × 8 differential crosspoint switch to support

continuous wave (CW) Doppler

Low power, 109 mW per channel at 12 bits/40 MSPS (TGC)

70 mW per channel in CW Doppler

Flexible power-down modes

Overload recovery in <10 ns

Fast recovery from low power standby mode, <2 μs

100-lead TQFP and 144-ball BGA

APPLICATIONS

Medical imaging/ultrasound

Automotive radar

GENERAL DESCRIPTION

The AD9273 is designed for low cost, low power, small size, and

ease of use. It contains eight channels of a low noise preamplifier

(LNA) with a variable gain amplifier (VGA); an antialiasing

filter (AAF); and a 12-bit, 10 MSPS to 50 MSPS analog-to-

digital converter (ADC).

Each channel features a variable gain range of 42 dB, a fully

differential signal path, an active input preamplifier termination, a

maximum gain of up to 52 dB, and an ADC with a conversion

rate of up to 50 MSPS. The channel is optimized for dynamic

performance and low power in applications where a small

package size is critical.

Rev. B

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

Octal LNA/VGA/AAF/ADC

and Crosspoint Switch

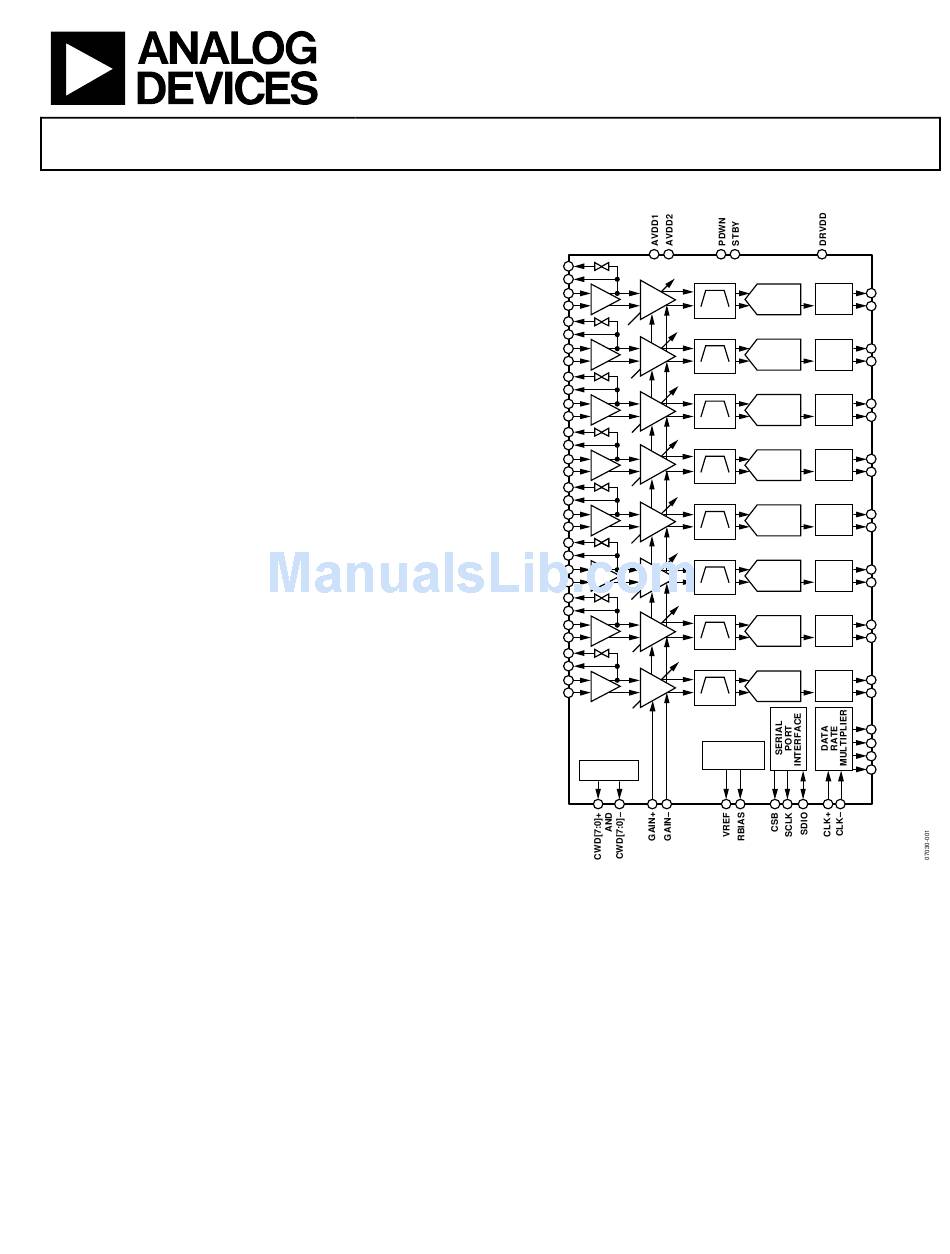

FUNCTIONAL BLOCK DIAGRAM

LOSW-A

LO-A

LI-A

VGA

LNA

LG-A

LOSW-B

LO-B

LI-B

LNA

VGA

LG-B

LOSW-C

LO-C

LI-C

LNA

VGA

LG-C

LOSW-D

LO-D

LI-D

VGA

LNA

LG-D

LOSW-E

LO-E

LI-E

LNA

VGA

LG-E

LOSW-F

LO-F

LI-F

LNA

VGA

LG-F

LOSW-G

LO-G

LI-G

VGA

LNA

LG-G

LOSW-H

LO-H

LI-H

LNA

VGA

LG-H

SWITCH

ARRAY

The LNA has a single-ended-to-differential gain that is selectable

through the SPI. The LNA input-referred noise voltage is typically

1.26 nV/√Hz at a gain of 21.3 dB, and the combined input-referred

noise voltage of the entire channel is 1.42 nV/√Hz at typical

gain. Assuming a 15 MHz noise bandwidth (NBW) and a 21.3 dB

LNA gain, the input SNR is about 91 dB. In CW Doppler mode,

the LNA output drives a transconductance amp that is switched

through an 8 × 8 differential crosspoint switch. The switch is

programmable through the SPI.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

Fax: 781.461.3113

AD9273

DOUTA+

12-BIT

SERIAL

ADC

LVDS

DOUTA–

AAF

12-BIT

DOUTB+

SERIAL

ADC

LVDS

DOUTB–

AAF

12-BIT

DOUTC+

SERIAL

ADC

LVDS

DOUTC–

AAF

12-BIT

DOUTD+

SERIAL

ADC

LVDS

DOUTD–

AAF

DOUTE+

12-BIT

SERIAL

ADC

LVDS

DOUTE–

AAF

DOUTF+

12-BIT

SERIAL

ADC

LVDS

DOUTF–

AAF

DOUTG+

12-BIT

SERIAL

ADC

LVDS

DOUTG–

AAF

DOUTH+

12-BIT

SERIAL

ADC

LVDS

DOUTH–

AAF

FCO+

FCO–

REFERENCE

DCO+

DCO–

Figure 1.

www.analog.com
