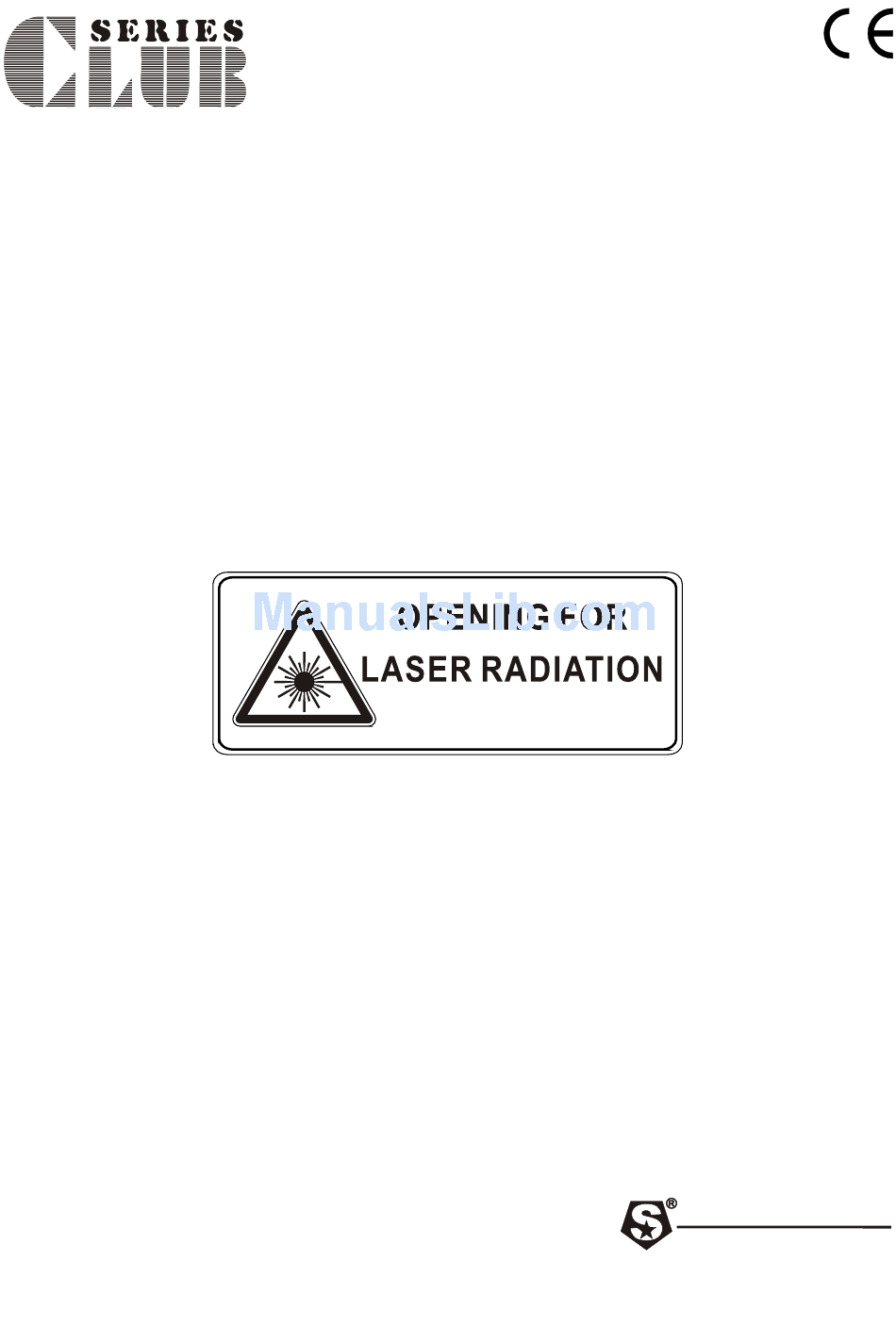

Page 1: User Manual
LT-215 RGB LASER LIGHT USER MANUAL SILVER STAR SILVER STAR P ro f e s s i o n a l L i g h t i n g P ro f e s s i o n a l L i g h t i n g Version 1.0... -
Page 2: Installation
Open box to check ØWhen you receive the product, take it gently check if there is problem which cause in transportation. At the same time please pay attention to see if there are some parts enclosed: 1. 1unit laser light 2. - Page 3 ØDon't operate the light without lamps. ØIf the semiconductor laser doesn't as light as before or there have some destroy with lens or other parts, please contact the distributor in time. ØWhen you want to retransfer the products, you'd better use the original package to shockproof.
-
Page 4: Panel Operation
Panel operation Front panel POWER SWITCH OUTPUT INPUT Back panel POWER Power LED Beam out: Inset mirror POWER In fuse inside POWER ON/OFF Power switch DMX IN/OUT DMX512 signal Security key switch Switch on/off power MIN MAX Potentiometer MIC: Music receiver ADDRESS: Address code switch. - Page 5 LT-215 RGB LASER LIGHT LT-215 DMX Channel List Channel Value F n tion Music Active, Channel 5~13 out of function 0~63 64~127 Auto-mode, Channel 5~13 out of function Control M o de 128~191 Sound accelerated manual mode 192~255 Automatic accelerated manual mode...
- Page 6 Problem and Answer Replace part Problem Causation Serries number Fuse 09-00-3001-01 Fuse broken No Power Power supply broken 16-03-0001-00 MIC Broken 16-03-0001-00 No response to Code control board Code control board 26-2A-LT6V20-00 Music or it is difficult be actived Potentionmeter 04-03-0105-03 Potentionmeter broken by music...
