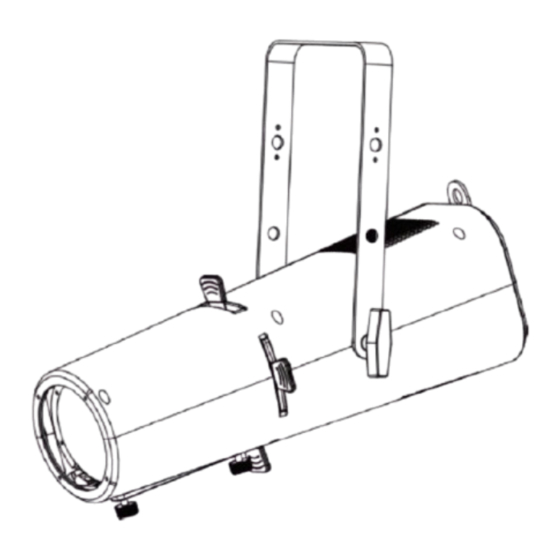

ECLIPSE Profile Zoom RGBAL
LEDPRO050
USER MANUAL
LIPSE MID COLOR 180
SS5141

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOWPRO ECLIPSE Profile Zoom RGBAL and is the answer not in the manual?

Questions and answers

Related Manuals for Silver Star SHOWPRO ECLIPSE Profile Zoom RGBAL

Summary of Contents for Silver Star SHOWPRO ECLIPSE Profile Zoom RGBAL

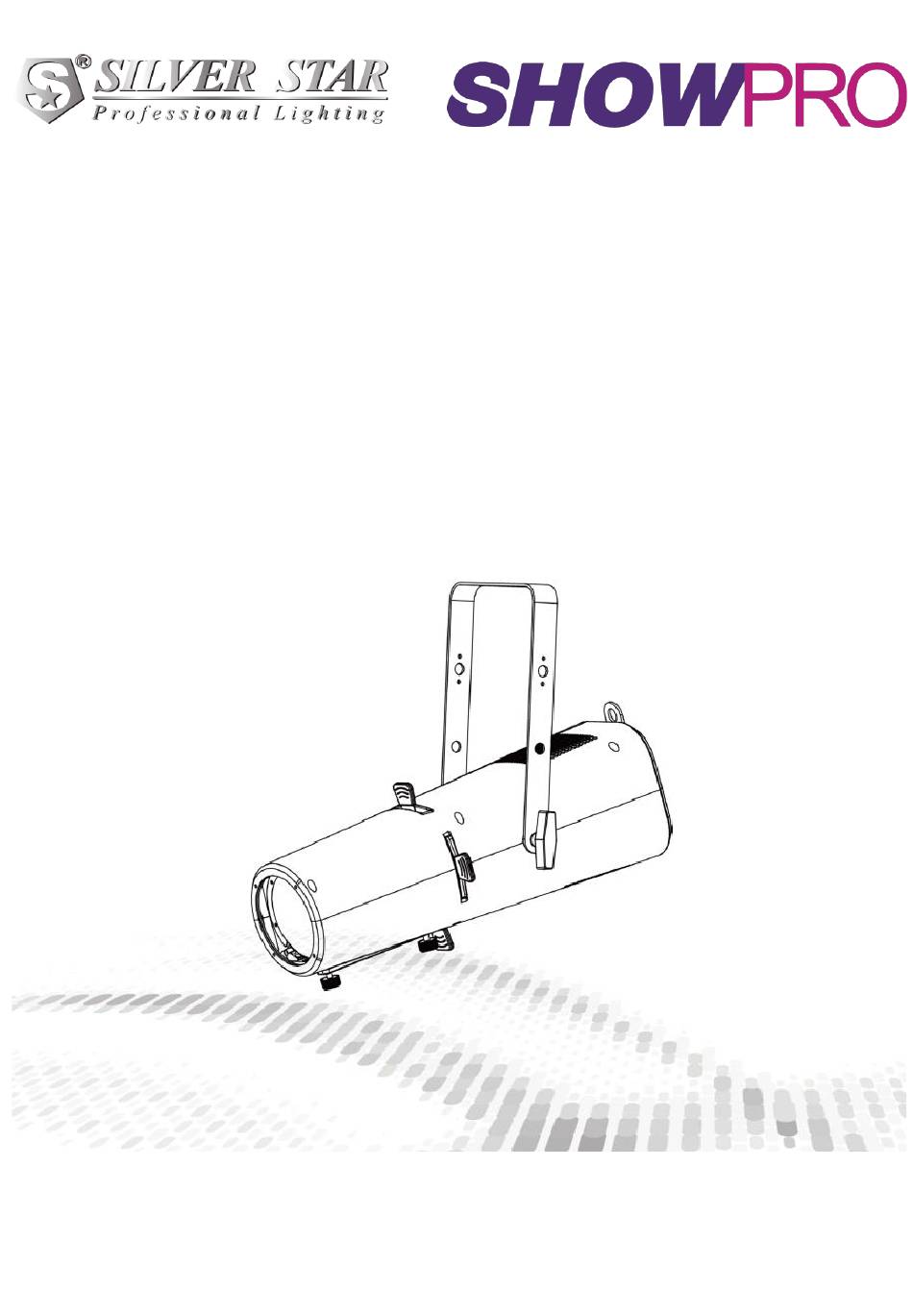

  • Page 1 ECLIPSE Profile Zoom RGBAL LEDPRO050 USER MANUAL LIPSE MID COLOR 180 SS5141...

  • Page 2: Technical Specifications

    1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type Eclipse Zoom Profile RGBAL LED colors Red, Green, Blue, Lime, Amber Power 170W Voltage Range AC100~240V,50/60Hz Protection IP20 Operation Temperature 0℃~45℃ Dimensions 568x224x191mm Weight 5.84kg DIMENSIONS...

  • Page 3: Safety Notes

    1.2 Safety Notes IMPORTANT ⚫ This product must be installed by a qualified professional. ⚫ To keep the product in good condition, and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes in this manual. ⚫...

  • Page 4: Installation

    2 INSTALLATION 2.1 MOUNTING UPRIGHT ◆ Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from the product. ◆ For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times the weight of the fixture.

  • Page 5: Data Network Requirements

    2.3 Data network requirements ◆ Connect the DMX controller to the units in series. A DMX data link is required in order to control the fixture via DMX. The fixture has 3 and 5-pin XLR connectors for DMX data input and output.

  • Page 6: Functions And Settings

    3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION ◆ MENU: Used to access the menu or to return a previous menu option. ◆ ENTER: Used to select and store the current option or confirm the current value. ◆ UP: Navigates downwards through the menu list and increases the numeric value when in a function.
  • Page 7 TIME 0-255 time setting. FADE 0-255 After editing the program, Play in AUTO. UPLOAD **** SEND Select [UPLOAD] to upload the custom programs SETTING **** RESET **** RESET Restore factory settings DIMMER DIM4（default） Dimming curves DIM1 (fast) to DIM4 (slow)； SAVE (default）...
  • Page 8 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K PRESET COLOR 1 （See Annex I for details） Preset color COLOR COLOR 2 COLOR 48 All passwords of this product are <UP> <DOWN> <UP> <DOWN> <ENTER>)

  • Page 9: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (7CH) CH.1 0-255 INTENSITY CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE...
  • Page 10 91-100 RESERVED 101-110 DIMMER OFF 111-120 DIMMER DIM4 121-150 RESERVED 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-255 RESERVED BASIC TOUR TR16 Value Function （3CH） （7CH） （12CH） （18CH） CH.1 CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE...
  • Page 11 6000K 6500K 7000K 8000K 10000K 10000K AUTO 0-40 NO FUNCTION 41-50 AUTO 1 51-60 AUTO 2 61-70 AUTO 3 71-80 AUTO 4 81-90 AUTO 5 91-100 AUTO 6 CH.9 CH.15 101-110 AUTO 7 111-120 AUTO 8 121-130 AUTO 9 131-140 AUTO 10 141-150 PROGRAM 1...
  • Page 12 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-255 RESERVED Value Function （10CH） CH.1 0-255 DIMMER CH.2 0-255 CYAN CH.3 0-255 MAGENT CH.4 0-255 YELLOW PRESET COLOR CH.5 0-10 NO FUNCTION 11-255 PRESET COLOUR (See Annex I for details） NO FUNCTION 1800K 2200K...
  • Page 13 81-90 AUTO5 91-100 AUTO6 101-110 AUTO7 111-120 AUTO8 121-130 AUTO9 131-140 AUTO10 141-150 CUSTOM1 151-160 CUSTOM2 161-255 NO FUNCTION CH.8 0-255 AUTO SPEED ADJUSTMENT Effect of center STROBE NO FUNCTION 10-99 STROBE FROM （SLOW TO FAST ，0-25Hz） CH.9 100-109 NO FUNCTION 110-179 LIGHTNING STROBE 180-189...
  • Page 14 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...
