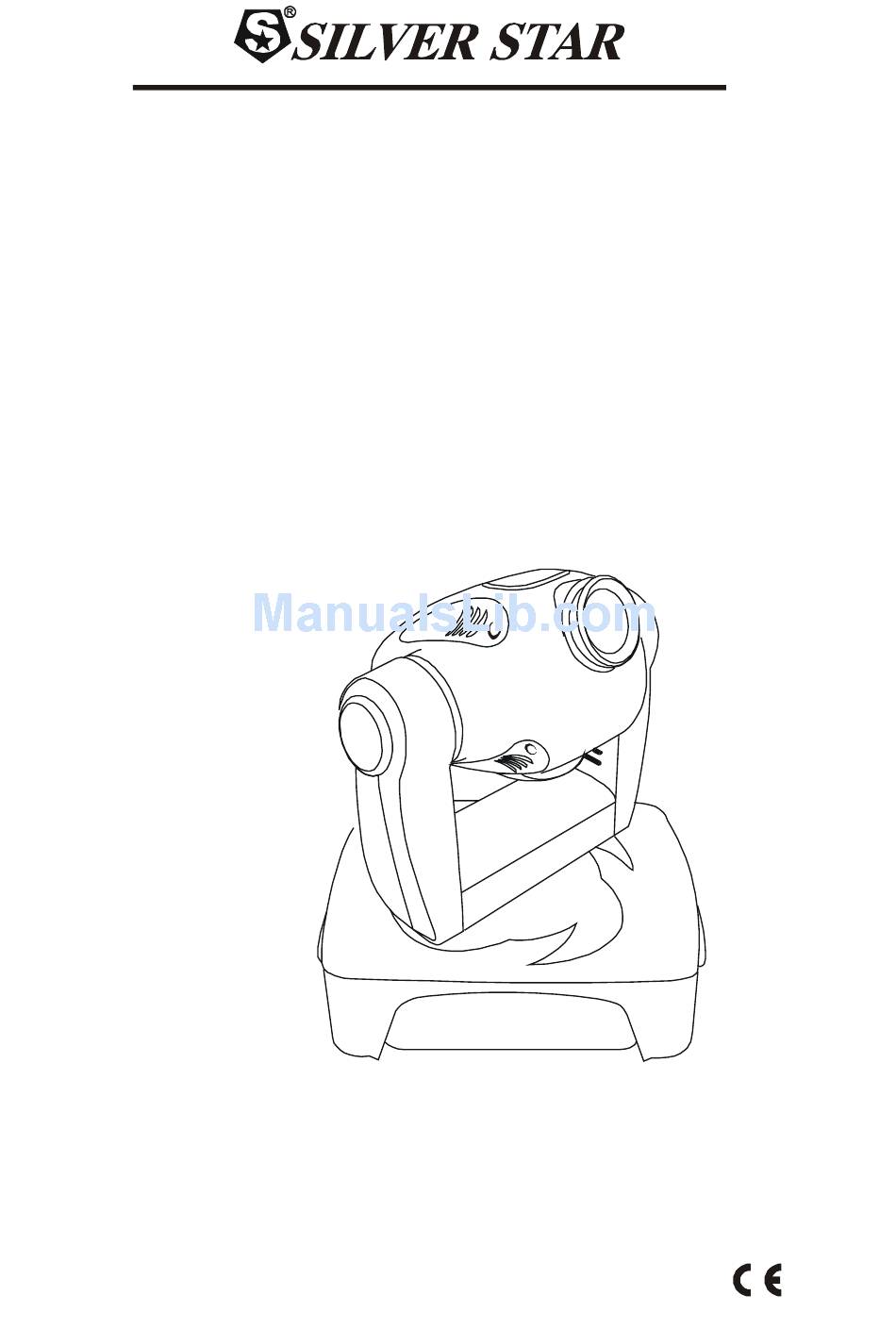

Page 1: User Manual
LT - V II I LASER MOTORHEAD LIGHT USER MANUAL Please read over this manual before operation the light... - Page 2 Laser Motorhead Light Open box to check This product use new high temperature-resistance project plastic to make. It has a beautiful surface to show the characteristic of new stage lights. You could choose the color you like. It is made accord CE standard.
- Page 3 Laser Motorhead Light Attention Please do not open the bottom cover yourself without permission. Operate it accord the user manual. Please call the technician in case the machine broken down. Do not use it under the damp and rain. Pay attention to prevent the light from strong bump. Prevent the dust into the product Keep the vent-pipe well while working.
- Page 4 Laser Motorhead Light DMX channel setting way: 1. Press up or down key to change the channel address of show. 2. Press enter key to confirm the change. The green light will shine to indicate the light already store the channel address. 3.
- Page 5 Laser Motorhead Light Channel function 0-255 0-370 (horizontal) X line 0-255 0-265 (vertical) Y line 12 pictures, average DMX value 0-255 (Can change accord user require) picture roll Y line like mirror image 0-255 compress fold roll X line like mirror image 0-255 compress fold roll around the center (0-360 )
- Page 6 Laser Motorhead Light The transform of the controller line of 3 pins and 5 pins (plug and socket) 5Pins canon(socket) Pins canon( plug Pin 1: GND(SCREEN) Pin 1: GND(SCREEN) Pin 2: Signal(-) Pin 2: Signal(-) Pin 3: Signal(+) Pin 3: Signal(+) Pin 4: N/C Pin 5: N/C 5Pins canon(...
- Page 7 Laser Motorhead Light Usage of our DMX512-KT console Our company recommend use our DMX512-KT console to control our Scanning Computer Light. select 17 MARTIN 518. Set the address code as following chart: Projector No. & chanees. Projector 1 - chanees.0-13 Projector 2 - chanees.14-27 Projector 3 - chanees.28-41 OFF OFF ON ON OFF OFF OFF OFF OFF...
- Page 8 Laser Motorhead Light Maintain The optical lens and illuminators must clean regular to protect a better effect. You can clean them accord the light's operate times and the using situation. Use soft cloth and original glass cleaner to clean. You'd better clean exterior optical system every 20 days and inside optical system every 60 days at least.
