Summary of Contents for Silver Star NOVA SS349
- Page 1 图纸编码 版本号 RD-SS349-SM-02（SS-I） SS349XCEM 英文说明书（CCS3.0） 编辑日期 2020/12/1 制作 刘丽萍 审核 白丹 批准 余泽松 物料编码 1320109341 备注 以 A4 样本打印...

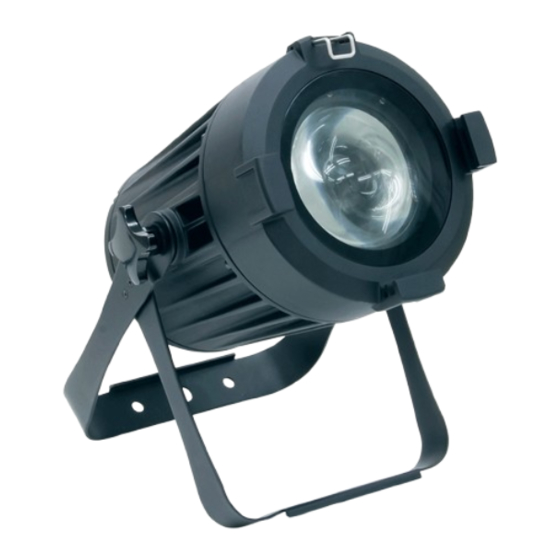

- Page 2 NOVA USER MANUAL NOVA SS349 MODEL: SS349XCEM...
-
Page 3: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS349XCEM LED colors RGBW 60W LED Power Voltage Range AC100~240V,50/60Hz Protection IP65 Operation -20℃~45℃ Temperature Dimensions 346X242X176mm Weight 5.4kg... -
Page 4: Safety Notes
1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes ... -
Page 5: Installation
2 INSTALLATION 2.1MOUNTING UPRIGHT ． ． ． ． ． ． ． For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times the weight of the fixture；Secure the fixture with a safety cable through the rear safety eye as shown. -
Page 6: Data Network Requirements
2.3 Data network requirements Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. ... -
Page 7: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION MENU：Used to access the menu or to return a previous menu option; ENTER：Used to select and store the current menu or confirm the current function value or option within a menu; ... - Page 8 ERROR BLACK Blackout after loss of DMX signal LED PWM 1200HZ（default） Sets the PWM frequency 2400HZ 4000HZ 6000HZ 25000HZ DISP KEY ON（default） Locks display (passcode <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>) DISP TIME Display backlight always on Turns off display backlight after 10s/30s 30s（default）...
-
Page 9: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (8CH) CH.1 0-255 INTENSIYT CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE... - Page 10 191-200 25000Hz 201-210 ALL RESET 211-220 ZOOM RESET 221-255 RESERVED TOUR TR16 Value Function （8CH） （12CH） （17CH） CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE CH.2 CH.2 CH.3 0-255 CH.4 0-255 RED FINE CH.3 CH.3 CH.5 0-255 GREEN CH.6 0-255...
- Page 11 AUTO 0-40 NO FUNCTION 41-50 AUTO 1 51-60 AUTO 2 61-70 AUTO 3 71-80 AUTO 4 81-90 AUTO 5 CH.9 CH.14 91-100 AUTO 6 101-110 AUTO 7 111-120 AUTO 8 121-130 AUTO 9 131-140 AUTO 10 141-150 PROGRAM 1 151-160 PROGRAM 2 161-255 NO FUNCTION...
- Page 12 Annex 1 PRESET COLOR Value Color Names 0-15 NO FUNCTION COLOR 1 16-20 Light Salmon 0.499 0.321 COLOR 2 21-25 Scarlet 0.561 0.296 COLOR 3 26-30 L164 Flame Red 0.659 0.302 31-40 NO FUNCTION COLOR 4 41-45 Dark Salmon 0.498 0.347 COLOR 5 46-50...
