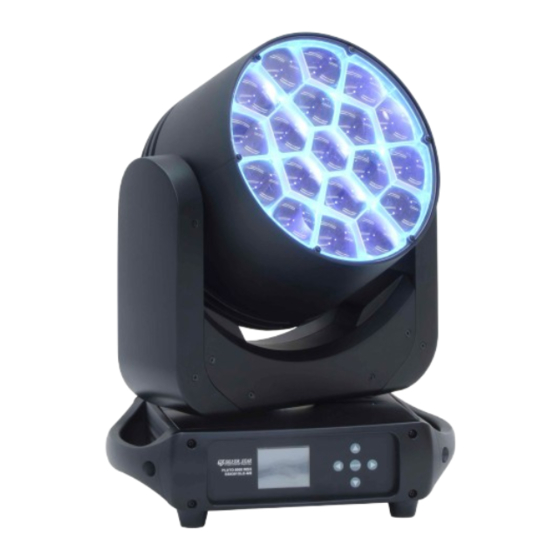

Silver Star SHOWPRO PLUTO 8000 WBX User Manual
  1. Manuals
  2. Brands
  3. Silver Star Manuals
  4. Lighting Equipment
  5. SHOWPRO PLUTO 8000 WBX
  6. User manual

Silver Star SHOWPRO PLUTO 8000 WBX User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PLUTO 8000 WBX
LEDMOV546
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOWPRO PLUTO 8000 WBX and is the answer not in the manual?

Questions and answers

Related Manuals for Silver Star SHOWPRO PLUTO 8000 WBX

Summary of Contents for Silver Star SHOWPRO PLUTO 8000 WBX

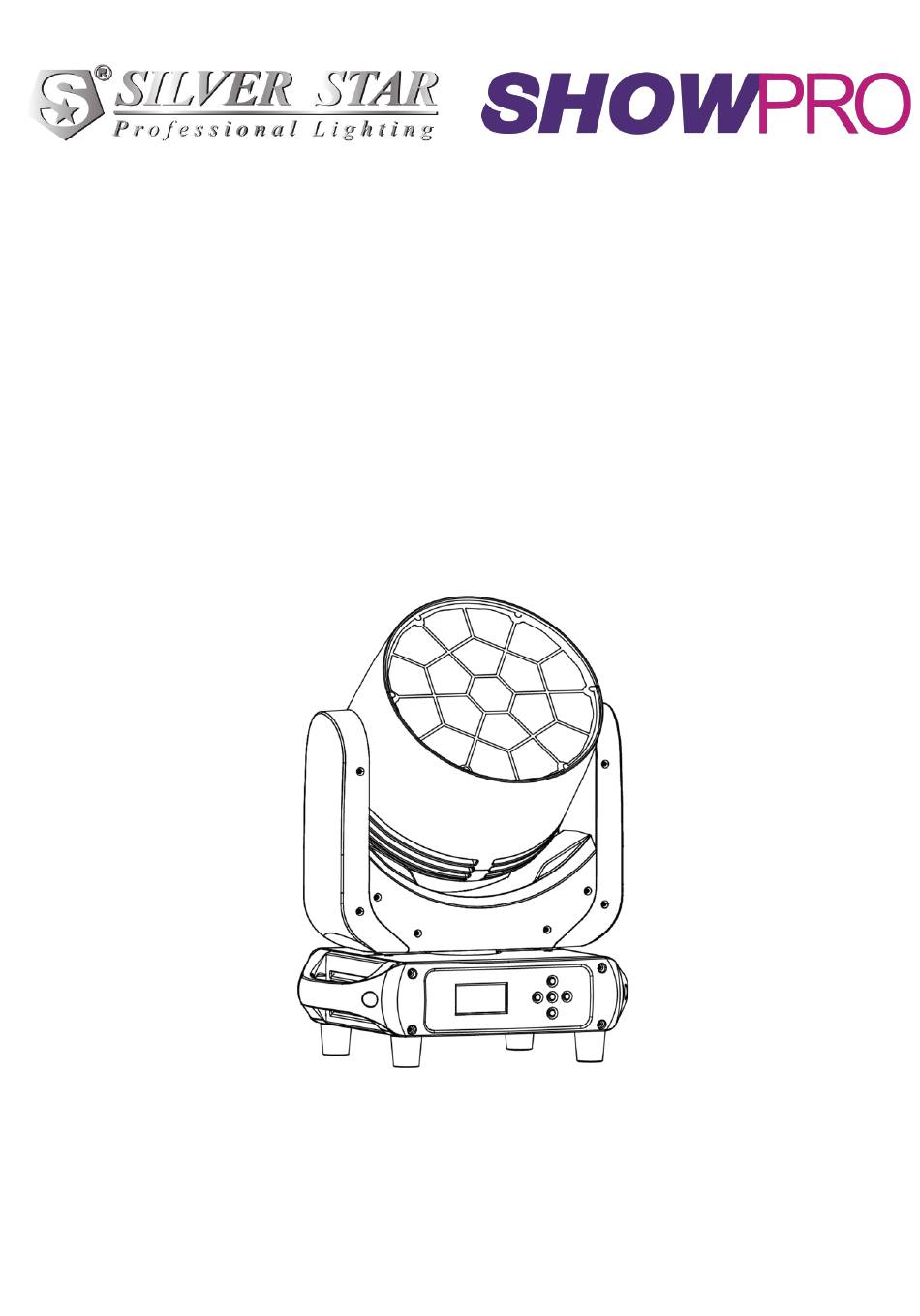

  • Page 1 PLUTO 8000 WBX LEDMOV546 USER MANUAL...

  • Page 2: Technical Specifications

    1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type Pluto 8000 WBX LED colors 19x40W RGBL LED+RGB Ring Angle Beam Angle：3.5°~38°，Field Angle: 6°~60° Power 720W Control Protocol DMX512，RDM，Bluetooth，NFC，W-DMX（Optional） Voltage Range AC100~240V,50/60Hz Input Current 110V/6.5A,220V/3.3A Protection IP20 Operation Temperature 0℃~45℃ Dimensions 352x259x424mm Weight 14KG DIMENSIONS...

  • Page 3: Safety Notes

    1.2 Safety Notes IMPORTANT ⚫ This product must be installed by a qualified professional. ⚫ To maintain the condition and to ensure safe operation of this fixture, follow the safety instructions and warning notes outlined in this manual. ⚫ The manufacturer will not accept liability for any resulting damage caused by the non-observance of this manual or any unauthorized modification to the device.
  • Page 4 Keep the product well away from flammable materials ⚫ Keep all combustible materials (e.g., fabric, wood, paper) at least 500 mm (20 in.) away from the product. ⚫ Ensure that there is free and unobstructed airflow around the product. Provide a minimum clearance of 150 mm (6 in.) around fans and air vents.

  • Page 5: Truss Installation

    2 INSTALLATION 2.1 MOUNTING Truss installation ◆ Keep all combustible materials (e.g., fabric, wood, paper) at least 500 mm (20 in.) away from the product. ◆ For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture.

  • Page 6: Data Network Requirements

    2.4 Data network requirements ◆ Connect the DMX512 controller to the units in series. A DMX 512 data link is required to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. ◆ Each unit has N DMX channels so the DMX Addresses should increase by increments of 1，...

  • Page 7: Functions And Settings

    3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION ◆ MENU: Used to access the menu or to return a previous menu option. ◆ ENTER: Used to select and store the current menu or confirm the current function value or option within a menu. ◆...
  • Page 8 4000Hz 6000Hz 25000Hz SAVE (Default) Hold after loss of DMX signal DMX ERROR Blackout after loss of DMX signal BLACK Display backlight always on 30s(Default) Turns off display backlight after DISPLAY 30s/1min/2min of inactivity TIME 1min 2min Locks display (passcode is UP, DISPLAY DOWN, UP, DOWN) LOCK...
  • Page 9 PRESET 0-255 COLOR 0-255 EFFECT 0-255 RING RED 0-255 RING GREEN 0-255 RING BLUE 0-255 1800K 2200K 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K COLOR 1 COLOR 2 PRESET COLOR COLOR 24 CYAN MAGENTA YELLOW Full power mode 0-255 Manual calibration mode...
  • Page 10 PAN ENCODER Pan Encoder PAN DRIVEIC Pan Drive IC TILT SENSOR Tilt Sensor TILT ENCODER Tilt Encoder TILT DRIVEIC Tilt Drive IC TEMPERATURE Temperature 中文 LANGUAGE **** Language select ENGLISH Factory testing mode. All stepper DEBUG HIDE motors are not controlled by signal. Resetting the fixture allows normal function again STATION...

  • Page 11: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC (20CH) Value Function CH.1 0-255 CH.2 0-255 PAN FINE CH.3 0-255 PAN FINE CH.4 0-255 TILT FINE CH.5 0-255 PT SPEED CH.6 0-255 INTENSITY CH.7 0-255 CH.8 0-255 HUE FINE CH.9 0-255 SATURATION NO FUNCTION...
  • Page 12 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079 Moss green 080-084 Signal violet 085-089 Red lilac 090-094 Purple red 095-099 Green brown 100-104 Pale green 105-109 Ruby red...
  • Page 13 178-191 FX13 192-205 FX14 206-219 FX15 220-233 FX16 234-247 FX17 248-255 Open Ring Speed (SPEED 1 —> 100%) CH.18 0-255 CH.19 0-255 Ring Dimmer CONTROL（HOLD SETTING FOR 3 SECONDS TO ACTIVATE） 0-10 NO FUNCTION 11-20 PAN/TILT BLACK ACTIVATED 21-30 PAN/TILT BLACK DEACTIVATED 31-40 PAN INVERT 41-50...
  • Page 14 CH.8 CH.8 CH.14 0-255 DIMMER CH.15 0-255 DIMMER FINE STROBE NO FUNCTION STROBE FROM SLOW TO FAST, 0-25Hz 10-99 CH.9 CH.9 CH.16 100-109 NO FUNCTION 110-179 LIGHTNING STROBE 180-189 NO FUNCTION 190-255 RANDOM STROBE PRESET COLOR CH.10 CH.17 0-10 NO FUNCTION 11-255 PRESET COLOR NO FUNCTION...
  • Page 15 8-19(30%)→2-7(60%)→1(100%)（associated with CH4-CH10） 2-7 (30%)→1(60%)→8-19 (100%)（associated with 66-70 CH4-CH10） 1 (30%)→8-19 (60%)→2-7(100%)（associated with CH4-CH10） 1→2-7→8-19 2700K cycle run (CH4-CH11 background) 71-75 8-19→2-7→1 2700K cycle run (CH4-CH11 background) 76-80 1→2-7→8-19→2-7→1 2700K cycle run (CH4-CH11 81-85 background) 86-90 1&8-19 2700K cycle run (CH4-CH11 background) 1→2-7→8-19 6000K cycle run (CH4-CH11 background) 2-7→8-19→1 6000K cycle run (CH4-CH11 background) 91-95...
  • Page 16 Blue background,3200K cycle 1→8-19→2-7 Blue background,3500K cycle 1→2-7→8-19 191-195 196-200 White background,3500K cycle 8-19→2-7→1 White background,3500K cycle 1→2-7→8-19→2-7→1 201-205 White background,3500K cycle 1→2-7 and 8-19→2-7 206-210 White background,3500K cycle 1→2-7 and 8-19→2-7 211-215 White background,3500K cycle 2-7→8-19→1 White background,3500K cycle 8-19→1→2-7 White background,3500K cycle 8-19→2-7→1 216-220 White background,3500K cycle 2-7→1→8-19...
  • Page 17 095-099 Green brown 100-104 Pale green 105-109 Ruby red 110-114 Flame red 115-119 Red orange 120-124 Rose 125-129 Honey yellow 130-134 Light Pin 135-139 Deep orange 140-144 Lemmon 145-149 Golden yellow 150-154 Pastel orange 155-159 Cream 160-164 Melon yellow 165-169 Luminous orange 170-174 Luminous yellow...
  • Page 18 41-50 TILT INVERT 51-60 PAN/TILT INVERT OFF 61-70 LIVE 71-80 STUDIO 81-90 POWER 91-100 RESERVED 101-110 DIMMER OFF 111-120 DIMMER DIM4 121-150 RESERVED 151-160 1200Hz 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-220 PAN/TILT RESET 221-230 ZOOM RESET 231-255 RESERVED...
  • Page 19 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K EFFECT 0-10 NO FUNCTION 11-15 16-20 21-25 8-19 26-30 1,2-7 31-35 1,8-19 36-40 2-7,8-19 1→2-7→8-19 cycle 41-45 46-50 8-19→2-7→1 cycle 1→2-7→8-19→2-7→1 cycle 51-55 56-60 1&8-19 cycle 1 (30%)→2-7(60%)→ 8-19(100%)（associated with CH4-CH10） 2 -7(30%)→8-19 (60%)→1(100%)（associated with CH4-CH10）...
  • Page 20 126-130 Red background, 2700K cycle 2-7→1→8-19 Red background, 2700K cycle 1→8-19→2-7 Green background, 3000K cycle 1→2-7→8-19 131-135 136-140 Green background,3000K cycle 8-19→2-7→1 Green background,3000K cycle 1→2-7→8-19→2-7→1 141-145 Green background,3000K cycle 1→2-7 and 8-19→2-7 146-150 Green background,3000K cycle 1→2-7 and 8-19→2-7 151-155 Green background,3000K cycle 2-7→8-19→1 Green background,3000K cycle 8-19→1→2-7...
  • Page 21 CH.17 0-255 GREEN RING CH.18 0-255 BULE RING Ring Color Presets 000-009 Open 010-014 015-019 GREEN 020-024 BLUE 025-029 Yellow 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green 065-069 Reseda green 070-074 Blue lilac 075-079...
  • Page 22 66-79 80-93 94-107 108-121 122-135 136-149 FX10 150-163 FX11 164-177 FX12 178-191 FX13 192-205 FX14 206-219 FX15 220-233 FX16 234-247 FX17 248-255 Open Ring Speed (SPEED 1 —> 100%) CH.21 0-255 CH.22 0-255 Ring Dimmer CONTROL（EXECUTE AFTER 3 SECONDS） 0-10 NO FUNCTION 11-20 PAN/TILT BLACK ACTIVATED...
  • Page 23 CH.6 0-255 ZOOM CH.7 0-255 RED RING CH.8 0-255 GREEN RING CH.9 0-255 BLUE RING ring color effect 000-009 Open 010-014 015-019 GREEN 020-024 BLUE 025-029 Yellow 030-034 Magenta 035-039 Cyan 040-044 WHITE 045-049 Violet blue 050-054 Light blue 055-059 Wine red 060-064 May green...
  • Page 24 180-248 Stop 249-255 Open Color FX Open 10-23 24-37 38-51 52-65 66-79 80-93 94-107 108-121 CH.11 122-135 136-149 FX10 150-163 FX11 164-177 FX12 178-191 FX13 192-205 FX14 206-219 FX15 220-233 FX16 234-247 FX17 248-255 Open Ring Speed (SPEED 1 —> 100%) CH.12 0-255 CH.13...
  • Page 25 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-220 PAN/TILT RESET 221-230 ZOOM RESET 231-255 RESERVED CH.15 0-255 DIMMER STROBE NO FUNCTION 10-99 STROBE FROM SLOW TO FAST，0-25Hz 100-109 NO FUNCTION CH.16 110-179 LIGHTNING STROBE 180-189 NO FUNCTION 190-255 RANDOM STROBE CH.17 0-255...
  • Page 26 Annex 1 PRESET COLOR Value Color Names NO FUNCTION 0-10 RESERVE 11-15 Loving Amber 0.407 0.321 COLOR 1 16-20 Light Salmon 0.499 0.321 COLOR 2 21-25 Scarlet 0.561 0.296 COLOR 3 L164 26-30 Flame Red 0.659 0.302 RESERVE 31-35 Easy White 0.389 0.344 RESERVE...
