Summary of Contents for Silver Star ECLIPSE 1000 RGBAL HC SS5152
- Page 1 图纸编码 版本号 RD-SS5152-SM-01(SS-I) SS5152XAL 英文说明书 编辑日期 2020/11/16 制作 刘丽萍 审核 白丹 批准 余泽松 物料编码 1320109283 备注 以 A4 样本打印...

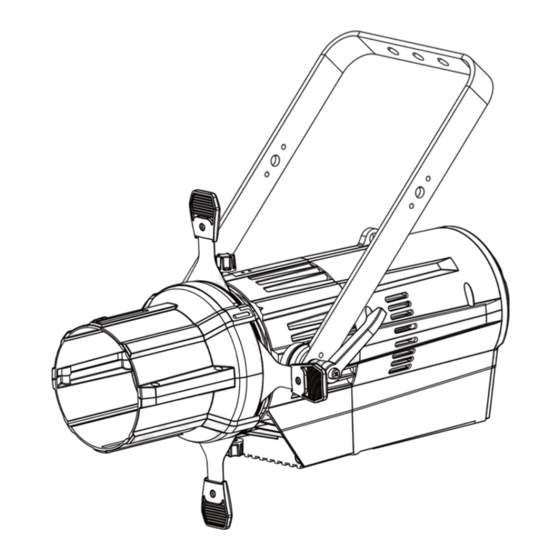

- Page 2 ECLIPSE 1000 RGBAL HC USER MANUAL ECLIPSE 1000 RGBAL HC SS5152 MODEL: SS5152XAL...
-
Page 3: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS5152XAL LED colors R*8PCS,G*18PCS,B*12PCS,L*18PCS,A*34PCS Power 300W Voltage Range AC100~240V,50/60Hz Protection IP20 Operation 0℃~45℃ Temperature Dimensions 600X370X370mm Weight 7.5kg... -
Page 4: Safety Notes
1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes The manufacturer will not accept liability for any resulting damages caused by the ... -
Page 5: Installation
2 INSTALLATION 2.1MOUNTING UPRIGHT ． ． ． ． ． ． ． For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. For overhead installation, the fixture must be always secured with a safety wire that can bear ... -
Page 6: Data Network Requirements
2.3 Data network requirements Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. Each unit has 13 DMX channels so the DMX Addresses should increase by increments of 1，... -
Page 7: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION MENU：Used to access the menu or to return a previous menu option; ENTER：Used to select and store the current menu or confirm the current function value or option within a menu; UP：Navigates downwards through the menu list and increases the numeric value when in a ... - Page 8 DISP KEY ON（default） Locks display (passcode <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>) DISP TIME Display backlight always on Turns off display backlight after 10s/30s 30s（default） /2min of inactivity 2min INFO FIXTURE HOURS Hours of fixture use VERSION Software versions Check fixture's ID LABEL Check fixture's LABEL 1800K...
-
Page 9: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (7CH) CH.1 0-255 INTENSIYT CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE... - Page 10 161-170 2400Hz 171-180 4000Hz 181-190 6000Hz 191-200 25000Hz 201-210 ALL RESET 211-255 RESERVED COLOR MODE SIMPLE Value Function 8BIT 16BIT （5CH） （8CH） （10CH） （16CH） CH.1 CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE CH.2 CH.2 CH.3 0-255 CH.4 0-255 RED FINE...
- Page 11 10-99 STROBE FROM SLOD TO FAST (0-25Hz) 100-109 NO FUNCTION 110-179 THUNDER STROBE 180-189 NO FUNCTION 190-255 RANDOM SROBE CONTROL（EXECUTE AFTER 3 SECONDS） 000-010 NO FUNCTION 011-060 RESERVED 061-070 LIVE 071-080 STUDIO 081-090 POWER 091-100 RESERVED 101-110 DIMMER OFF CH.5 CH.8 CH.10 CH.16...
- Page 12 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...
