Summary of Contents for Silver Star MAXCYC SS809
- Page 1 图纸编码 版本号 RD-SS809-SM-02（SS-I） SS809XCA 英文说明书（CCS3.0） 编辑日期 2020/11/30 制作 刘丽萍 审核 白丹 批准 余泽松 物料编码 1320109335 备注 以 A4 样本打印...

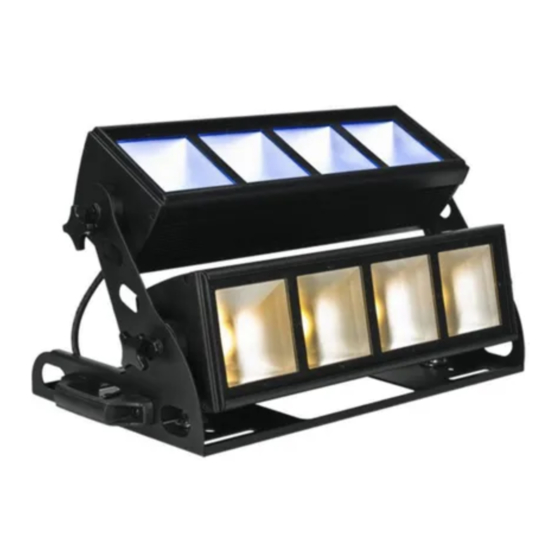

- Page 2 MAXCYC USER MANUAL MAXCYC SS809 MODEL: SS809XCA...
-
Page 3: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS809XCA LED colors Rx32pcs,Gx32pcs,Bx32pcs,CWx16pcs,Ax16pcs Power 310W Voltage Range AC100~240V,50/60Hz Protection IP20 Operation 0℃~45℃ Temperature Dimensions 622X310X327mm Weight 15kg... -
Page 4: Safety Notes
1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes The manufacturer will not accept liability for any resulting damages caused by the ... -
Page 5: Installation
2 INSTALLATION 2.1MOUNTING HANGING ． ． ． ． ． ． ． You could place the light on the floor. Please make sure the surface is plane and the reliability of the floor is sufficient. Horizontal layout UPRIGHT ． ． ． ． ． ． ． For overhead use, always install a safety cable that can hold at least 10 times the weight of ... -
Page 6: Power Connections
2.2 POWER CONNECTIONS POWER Linking: 3 units@110V；6 units@220V. This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. AC Plug Connection Wire (U.S. Wire(Europe) Screw Color AC Live Black Brown Yellow/Brass... -
Page 7: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION MENU：Used to access the menu or to return a previous menu option; ENTER：Used to select and store the current menu or confirm the current function value or option within a menu; UP：Navigates downwards through the menu list and increases the numeric value when in a ... - Page 8 DERR SAVE（default） Hold after loss of DMX signal BLAK Blackout after loss of DMX signal DKEY ON（default） Locks display (passcode <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>) DTIM Display backlight always on Turns off display backlight after 10s/30s 30s（default） /2min of inactivity 2min INFO Software versions WH01...
-
Page 9: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (7CH) CH.1 0-255 INTENSIYT CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE... - Page 10 201-210 ALL RESET 211-255 RESERVED TOUR TR16 Value Function （8CH） （12CH） （18CH） CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE CH.2 CH.2 CH.3 0-255 CH.4 0-255 RED FINE CH.3 CH.3 CH.5 0-255 GREEN CH.6 0-255 GREEN FINE CH.4 CH.4 CH.7...
- Page 11 100-109 NO FUNCTION 110-179 THUNDER STROBE 180-189 NO FUNCTION 190-255 RANDOM SROBE AUTO 0-40 NO FUNCTION 41-50 AUTO 1 51-60 AUTO 2 61-70 AUTO 3 71-80 AUTO 4 81-90 AUTO 5 CH.10 CH.16 91-100 AUTO 6 101-110 AUTO 7 111-120 AUTO 8 121-130 AUTO 9...
- Page 12 11-255 PRESET COLOR（See Annex I for details） CH.6 CH.8 0-255 RED 2 CH.7 CH.9 0-255 GREEN 2 CH.8 CH.10 0-255 BLUE 2 CH.11 0-255 WHITE 2 CH.12 0-255 AMBER 2 PRESET COLOR CH.9 CH.13 0-10 NO FUNCTION 11-255 PRESET COLOR（See Annex I for details） HALO Value Function...
- Page 13 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...
