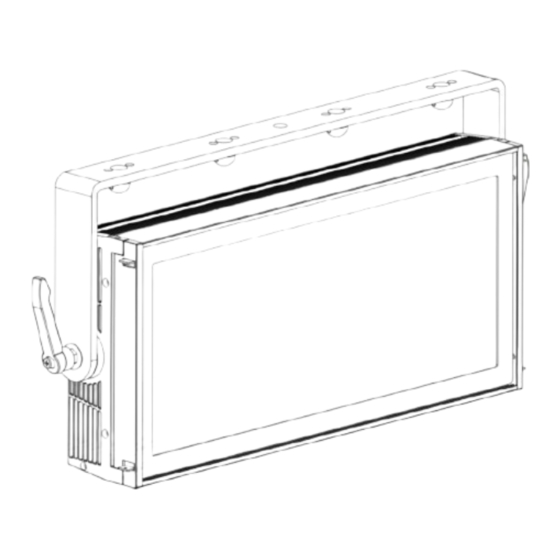

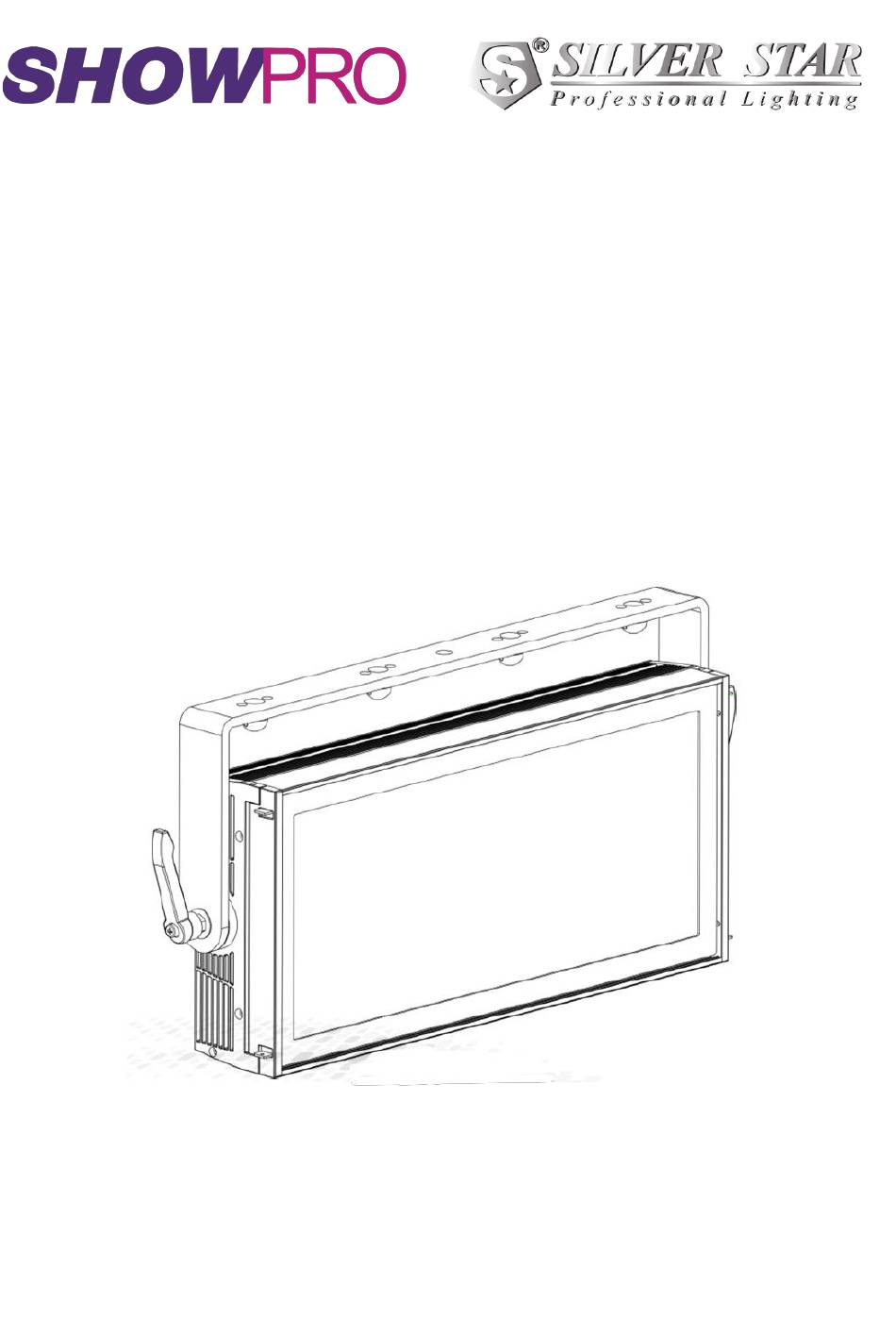

- Page 1 E-Lite LEDLIT100 USER MANUAL...
-
Page 2: Technical Specifications
PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type E-Lite 440pcs x WW, 440pcs x CW Power 500W Voltage Range AC100~240V,50/60Hz Beam Angle 4.5°-45° Protection IP65 -20℃~45℃ Operation Temperature Dimensions 652x120x249mm Weight 11.3kg DIMENSIONS... -
Page 3: Safety Notes
1.2 Safety Notes IMPORTANT This product must be installed by a qualified professional. • • In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes •... -
Page 4: Installation
2 INSTALLATION 2.1 MOUNTING UPRIGHT • For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. • For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times the weight of the fixture；Secure the fixture with a safety cable through the rear safety eye as shown. -
Page 5: Data Network Requirements
2.3 Data network requirements • Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. •... -
Page 6: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION MENU：Used to access the menu or to return a previous menu option; ◆ ENTER：Used to select and store the current menu or confirm the current function ◆ value or option within a menu; UP：Navigates downwards through the menu list and increasesthe numeric value ◆... - Page 7 NORMAL (Default) PERFORM STUDIO Fan mode low speed POWER Fast rotation of fan, all power LIVE (Default) Automatic rotation of fan DISP KEY ON (Default) Locks display (passcode is UP, DOWN, UP, DOWN, ENTER) DISP TIME Display backlight always on Turns off display backlight after 10s/30s/2min of inactivity 2min...
-
Page 8: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL VW. D VW. F STD. P VALUE FUNCTION Ch. 1 Ch. 1 Ch. 1 Ch. 1 000 – 255 DIMMER Ch. 2 Ch. 2 000 – 255 DIMMER FINE Ch. 2 Ch. 3 Ch.
