- Page 1 图纸编码 版本号 RD-SS867-SM-05(SS-I) SS867XCE 英文说明书（带 W-DMX） 编辑日期 2021/4/14 制作 刘丽萍 审核 白丹 批准 余泽松 物料编码 1320109361 备注 以 A4 样本打印...

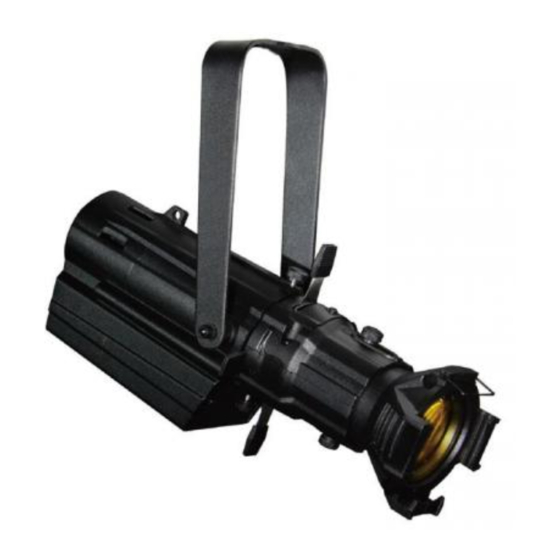

- Page 2 ECLIPSE MINI COLOR USER MANUAL ECLIPSE MINI COLOR SS867 MODEL: SS867XCE...
-
Page 3: Technical Specifications
1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS867XCE LED colors 40W RGBW LED Power Voltage Range AC100~240V,50/60Hz Protection IP20 Operation Temperature 0℃~45℃ Dimensions 344X127X270mm Weight 1.7kg... -
Page 4: Safety Notes
1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes ... -
Page 5: Installation
2 INSTALLATION 2.1MOUNTING UPRIGHT ． ． ． ． ． ． ． For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times the weight of the fixture；Secure the fixture with a safety cable through the rear safety eye as shown. -
Page 6: Data Network Requirements
2.3 Data network requirements Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. ... -
Page 7: Functions And Settings
3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION MENU：Used to access the menu or to return a previous menu option; ENTER：Used to select and store the current menu or confirm the current function value or option within a menu; ... - Page 8 DISP KEY ON（default） Locks display (passcode <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>) DISP TIME Display backlight always on Turns off display backlight after 10s/30s 30s（default） /2min of inactivity 2min WDMX W-DMX reset RESET SIGNAL XLRDMX XLRDMX control WDMX W-DMX control INFO FIXTURE HOURS Hours of fixture use VERSION Software versions...
-
Page 9: Using A Dmx512 Controller
4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (7CH) CH.1 0-255 INTENSIYT CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE... - Page 10 TOUR TR16 Value Function （7CH） （11CH） （16CH） CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE CH.2 CH.2 CH.3 0-255 CH.4 0-255 RED FINE CH.3 CH.3 CH.5 0-255 GREEN CH.6 0-255 GREEN FINE CH.4 CH.4 CH.7 0-255 BLUE CH.8 0-S255 BLUE FINE...
- Page 11 81-90 AUTO5 91-100 AUTO6 101-110 AUTO7 111-120 AUTO8 121-130 AUTO9 131-140 AUTO10 141-150 CUSTOM1 151-160 CUSTOM2 161-255 NO FUNCTION CH.10 CH.15 0-255 AUTO SPEED ADJUSTMENT CONTROL（EXECUTE AFTER 3 SECONDS） 000-010 NO FUNCTION 011-100 RESERVED 101-110 DIMMER OFF CH.7 CH.11 CH.16 111-120 DIMMER DIM4 121-200...
- Page 12 Annex 1 PRESET COLOR Value Color Names NO FUNCTION 0-10 RESERVE 11-15 Loving Amber 0.407 0.321 COLOR 1 16-20 Light Salmon 0.499 0.321 COLOR 2 21-25 Scarlet 0.561 0.296 COLOR 3 L164 26-30 Flame Red 0.659 0.302 31-35 RESERVE Easy White 0.389 0.344 36-40...
