LGR-5320 Series User's Guide

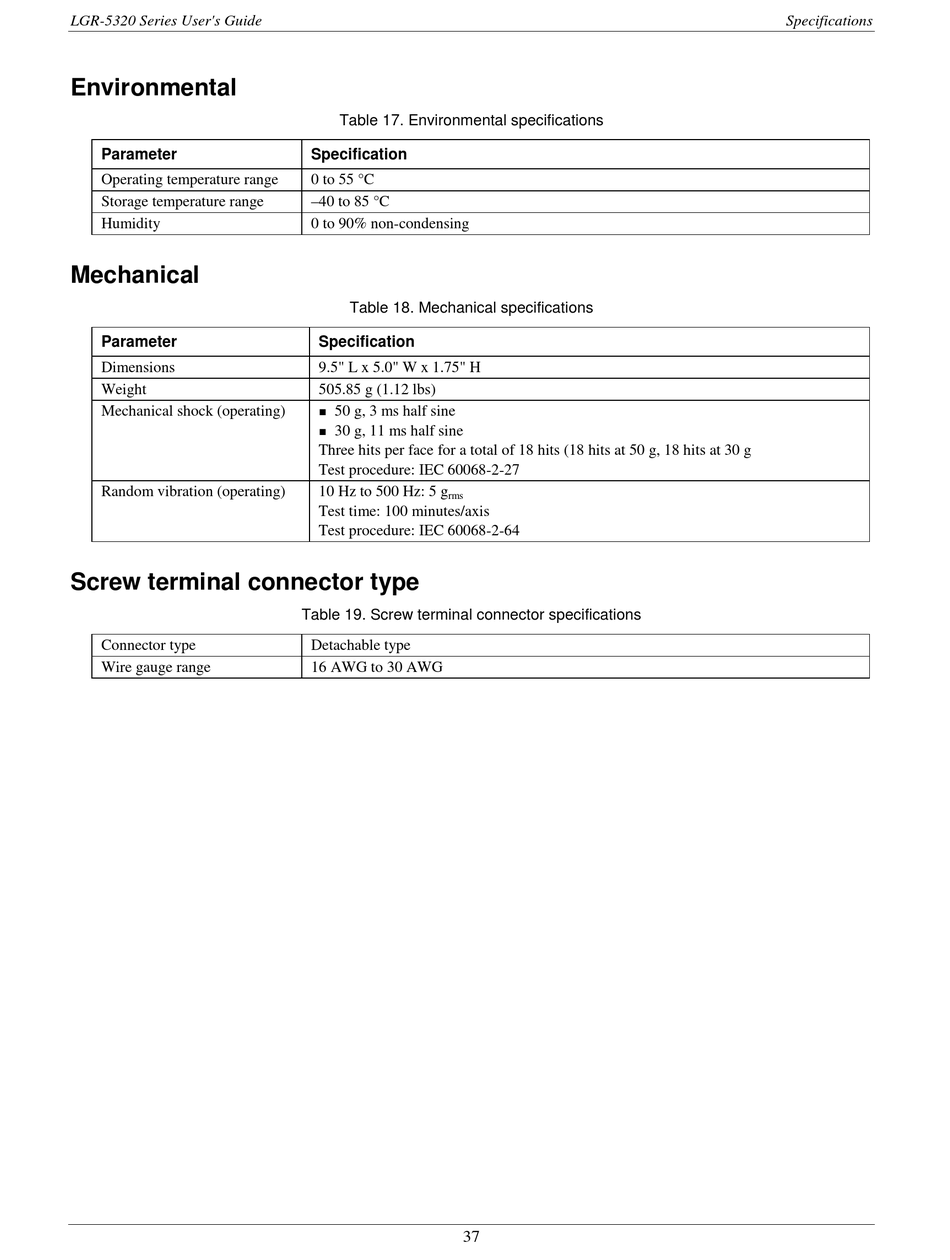

Environmental

Parameter
Operating temperature range
Storage temperature range
Humidity

Mechanical

Parameter
Dimensions
Weight
Mechanical shock (operating)
Random vibration (operating)

Screw terminal connector type

Connector type
Wire gauge range
Table 17. Environmental specifications
Specification
0 to 55 °C
–40 to 85 °C
0 to 90% non-condensing
Table 18. Mechanical specifications
Specification
9.5" L x 5.0" W x 1.75" H
505.85 g (1.12 lbs)
50 g, 3 ms half sine

30 g, 11 ms half sine

Three hits per face for a total of 18 hits (18 hits at 50 g, 18 hits at 30 g
Test procedure: IEC 60068-2-27
10 Hz to 500 Hz: 5 g
rms
Test time: 100 minutes/axis
Test procedure: IEC 60068-2-64
Table 19. Screw terminal connector specifications
Detachable type
16 AWG to 30 AWG
37
Specifications
