LGR-5320 Series User's Guide
Figure 3 shows the location of the battery compartment on the board.
5.
Lift the clip and insert the new battery in the battery compartment. Make sure the positive side of the
battery (+) is facing up and away from the circuit board.
6.
Replace the top section of the case, and fasten it to the bottom section with the five screws.

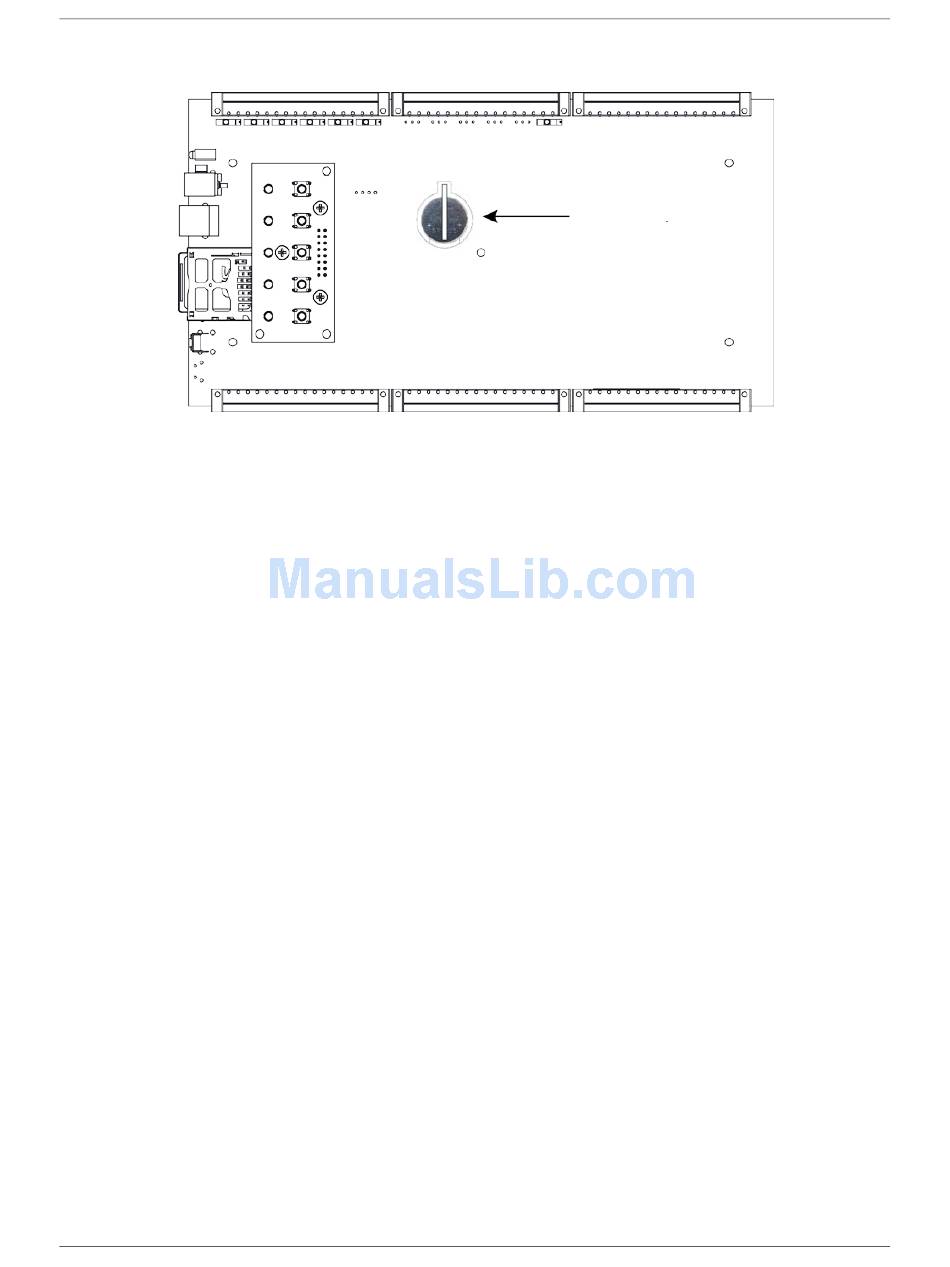

Figure 3. Location of battery compartment
11
Installing a LGR-5320 Series Device
