- Page 1 CX101 18” VARIABLE SPEED WOOD & METAL BAND SAW User Manual...
-
Page 2: Table Of Contents
Table of Contents General Safety Instructions ------------------------------------------------------------------ 3 Specific Safety Instructions ------------------------------------------------------------------ 4 Features ------------------------------------------------------------------------------------------ 5 Physical Features ------------------------------------------------------------------------------ 6 Setup ---------------------------------------------------------------------------------------------- 7 Un-packing --------------------------------------------------------------------------------------- 7 Proper Grounding ------------------------------------------------------------------------------ 8 Assembly and Adjustments --------------------------------------------------------------- 9 Blade Tracking ---------------------------------------------------------------------------------- 12 Basic Controls ----------------------------------------------------------------------------------- 13 Test Run ------------------------------------------------------------------------------------------ 13 Blade Tension ----------------------------------------------------------------------------------- 14 Adjusting the Blade Tension ----------------------------------------------------------------- 14... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Extreme caution should be used when operating all power tools. Know your power tool, be familiar with its operation, read through the owner’s manual and practice safe usage procedures at all times. ALWAYS read and understand the DISCONNECT the power source when user manual before operating the changing blade and / or making... -
Page 4: Specific Safety Instructions
CX101 - 18” Variable Speed Wood & Metal Band Saw SPECIFIC SAFETY INSTRUCTIONS CX101 is perfect for cutting wood and MAKE SURE before making various types of metal. adjustments, the switch is in the “OFF” position and the cord is un-plugged from ALWAYS INSPECT the blade for any the power source. -
Page 5: Features

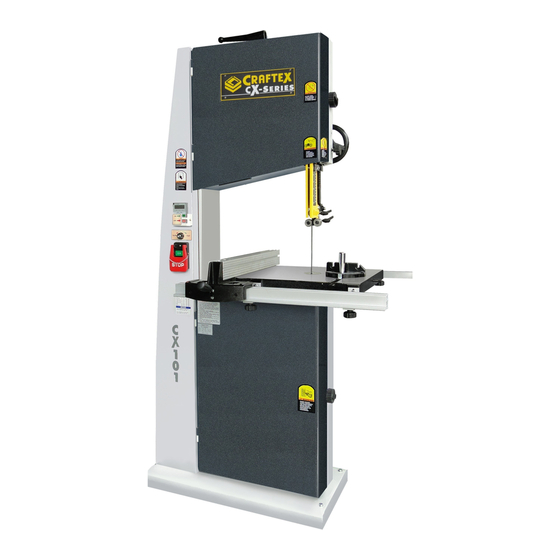

MODEL CX101 – 18” VARIABLE SPEED WOOD / METAL BAND SAW As part of the growing line of Craftex woodworking & metalworking equipment, we are proud to offer the CX101 - 18” Variable Speed Band Saw. The Craftex name guarantees Craft Excellence. By following the instructions and procedures laid out in this user manual, you will receive years of excellent service and satisfaction. -
Page 6: Physical Features
CX101–18” Variable Speed Wood & Metal Band Saw Physical Features Quick Release Blade Tension Upper Cabinet Handle Lock Knob One Piece Blade Guide Construction Adjustment Hand Wheel Digital Display Blade Guide Lock Knob Variable Speed Control Blade Guard On/Off Switch... -
Page 7: Setup
Use a solvent cleaner that will not damage painted surfaces. Figure-1 Inventory WARNING CX101 is a heavy machine. Do not over- List of Contents exert yourself. Use a fork truck or get the help of an assistant or a friend. -
Page 8: Proper Grounding
Improper connection of the equipment- grounding conductor can result in a risk of CX101 is equipped with a 220 single phase electric shock. Check with a qualified motor which features a 3-conductor cord electrician if you are in doubt as to and a 3-prong grounded plug to fit a whether the outlet is properly grounded. -
Page 9: Assembly And Adjustments
ASSEMBLY Now turn the table up right, and remove the Follow the steps below to assemble your table pin from the table slot and the table band saw: insert (if already installed) and move the table in position around the blade, guiding Take the band saw table and put it upside through the table slot. - Page 10 Figure-8 Table sitting on the table stop Figure-10 Rear rail brackets attached Install the table insert at the center of the Now, attach the rear rail to the brackets table and the table pin into the table slot as using the knobs provided. See figure-11. shown in figure-9.
- Page 11 Once you have attached the adhesive backed scale to the rail, place and fence on the rail and tighten it in place by pushing down the handle. See figure-14 Figure-12 Front fence rail installed Now take the fence and pull its handle up. Place the fence on the front fence rail and Figure-14 Fence installed on the rails slide it against the blade.
-
Page 12: Blade Tracking
to tilt to the front and moves the blade Blade Tracking towards the center. The blade tracking means where the blade rides on the upper and lower wheels. The blade should always be centered on both wheels. Although the blade tracking of this band saw is factory set, you should check it again to make sure that the blade is centered on the wheels. -
Page 13: Basic Controls
TEST RUN Once you have assembled your machine completely, it is then time for a test run to Figure-19 Basic controls of CX101 make sure that the machine works properly and is ready for operation. A. The power switch turns the power on/off During the test run if there is any unusual to the motor switch. -
Page 14: Blade Tension
Blade Tension Adjusting the Blade Tension properly tensioned blade very To adjust the blade tension, lift the blade important to get the best performance from tension handle shown in figure-20 and turn any band saw. If the blade is too loose it. -
Page 15: Table Stop Adjustment
Adjust the lower bearings in the same manner. Table Stop Adjustment CX101 features a table stop which allows the table to easily come to a 90° if the table is tilted. To adjust the table stop so that the table sits at 90°, you should first make sure the... -
Page 16: Table Tilt Scale Calibration
Table Alignment To make accurate cuts with your band saw, the table should be aligned properly with the blade. To align the table: Make sure the blade tension and tracking is done correctly. Disconnect the machine from the power source and loosen the two knobs under the table. -
Page 17: Guide Post
Guide Post Work-piece Inspection (Wood) The guide post assembly can be moved up Before cutting any wood, make sure to down above work-piece. inspect the work-piece for nails, staples, movement of the guide post is controlled small pieces of stone or metal and any with the hand wheel shown in figure-27 other object which is dangerous to come on contact with the blade. -
Page 18: Work-Piece Inspection (Metal)
Work-Piece Inspection (Metal) Before cutting a metal work-piece, inspect it carefully for any defects in the material. For thin or small metals, the work-piece should be clamped between larger pieces to hold the work-piece tight, when fed against the blade. Some small work-pieces will be damaged if cut on the band saw;... -
Page 19: Cast Iron Wheels
Cast Iron Wheels The CX101 comes with heavy duty cast iron wheels for added stability and overall performance. A coplanar shim adjustment also added for better alignment of the wheels that allow the blade to run as straight as possible ensuring straight and accurate cuts. -
Page 20: Operations
Guide bearings adjustment Make sure all the guards are in place WARNING Figure-30 Ripping on CX101 CX101 produces fine dust particles during cutting operation which is very Crosscutting dangerous for health. Always connect your band saw to a dust collector. -
Page 21: Resawing
COLLECTOR Cutting a work-piece into two or more thinner pieces is called resawing. Wider CX101 features two 4” diameter dust ports blades give better result, when resawing. to connect to a dust collector. To resaw a work-piece make sure that the When connecting to a dust collector, use a table is at a 90°... -
Page 22: Maintenance
MAINTENANCE During the life of your machine, you will need to practice some regular maintenance to keep your saw in peak performance condition. Removing the Blade To remove / change the blade, turn the switch OFF and disconnect the cord from the power source. -
Page 23: Tilting The Table Backward
Tilting the Table Backward To Inspect the V-Belts To tilt the table backward, you will need to 1. Turn power switch loosen the bolts shown in figure-35 and disconnect the cord from the power adjust them as needed using a wrench. source. -
Page 24: Removing/Replacing The V-Belts
To Replace the V-Belts Pivot the motor and slide the idler Follow the instructions 1-5 to access pulley to loosen the belt. the V-belts. Remove the old belt and install the Loosen the motor lock lever shown in new one. figure-37 and idler pulley mounting nut shown in figure-38. -
Page 25: Optional Accessories
PTIONAL CCESSORIES These are just a few of the optional accessories available for your CX-Series band saw. Check www.busybeetools.com for more information and current pricing. Saw Blade Lubricant Stick Band Saw Finger Protector Patented new safety device protects your Smoother, quicker fingers. -
Page 26: Parts Breakdown And List
CX101 BODY PARTS BREAKDOWN... - Page 27 CX101 BODY PARTS LIST REF# DESCRIPTION REF# DESCRIPTION BODY HEX NUT 3/8" QUICK HANDLE BAR SCREW T TYPE WASHER BEARING COVER UPPER WHEEL BRACKET SCREW SCREW UPPER WHEEL SHAFT 17MM ADJUSTING SCREW BEARING 48A BEARING BASE BEARING UPPER WHEEL - Cast Iron...
- Page 28 CX101 TABLE PARTS BREAKDOWN...
- Page 29 CX101 TABLE PARTS LIST REF# DESCRIPTION REF# DESCRIPTION HEX BOLT 1/4-20*3/8" MITER GAUGE ASSY TABLE INSERT FLAT WASHER 1/4" TABLE(19MM T-SLOT) GUIDE BAR COVER GUIDE POST SCALE POINTER PLATE GUIDE BAR BOLT HEX HD 3/8*2.5L BRACKET TRUNNION CLAMP SHOE TRUNNION HEX BOLT 5/16"*3/4"...
- Page 30 CX101 FENCE PARTS BREAKDOWN...
- Page 31 CX101 FENCE PARTS LIST REF# DESCRIPTION FENCE BODY CAP SCREW 10*16 BUTTON HEAD SCREW 5*10MM FENCE BASE SET SCREW 1/4"*1/4" EXTERNAL RETAINING RING BEARING ECCENTRIC SHAFT PRESSURE PLATE SCALE FENCE RAIL FRONT SQUARE NUT 5/16 HEX BOLT 1/4"*1" L TYPE PLATE...
-
Page 32: Warranty
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches etceteras. Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or for incidental contingent, special or consequential damages arising from the use of our products.
