6
CONNECTION AND INSTALLATION

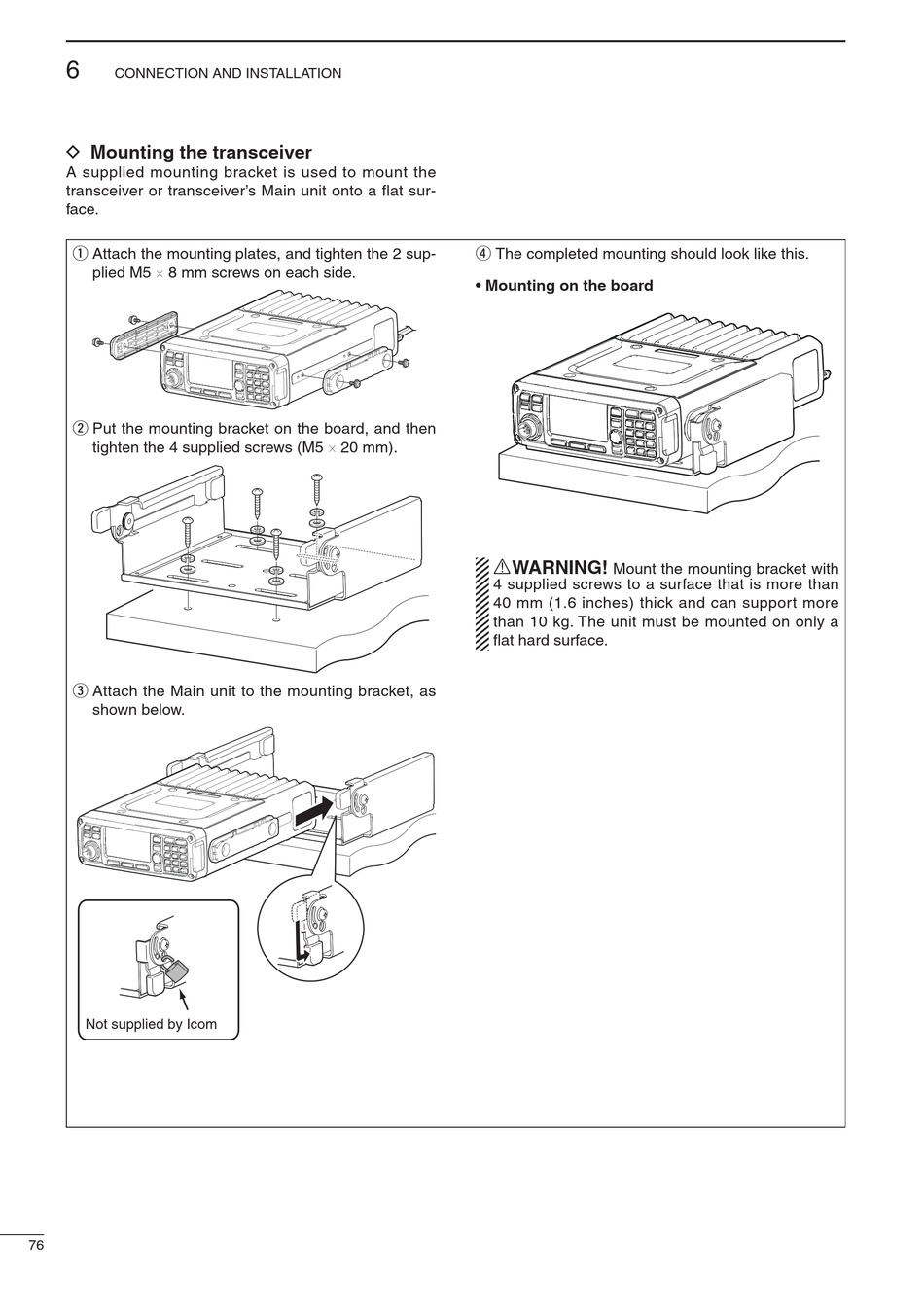

D Mounting the transceiver

A supplied mounting bracket is used to mount the
transceiver or transceiver's Main unit onto a flat sur-
face.
q Attach the mounting plates, and tighten the 2 sup-
plied M5 × 8 mm screws on each side.
w Put the mounting bracket on the board, and then
tighten the 4 supplied screws (M5 × 20 mm).
e Attach the Main unit to the mounting bracket, as
shown below.
Not supplied by Icom
76
r The completed mounting should look like this.
• Mounting on the board
RWARNING!
Mount the mounting bracket with
4 supplied screws to a surface that is more than
40 mm (1.6 inches) thick and can support more
than 10 kg. The unit must be mounted on only a
flat hard surface.
