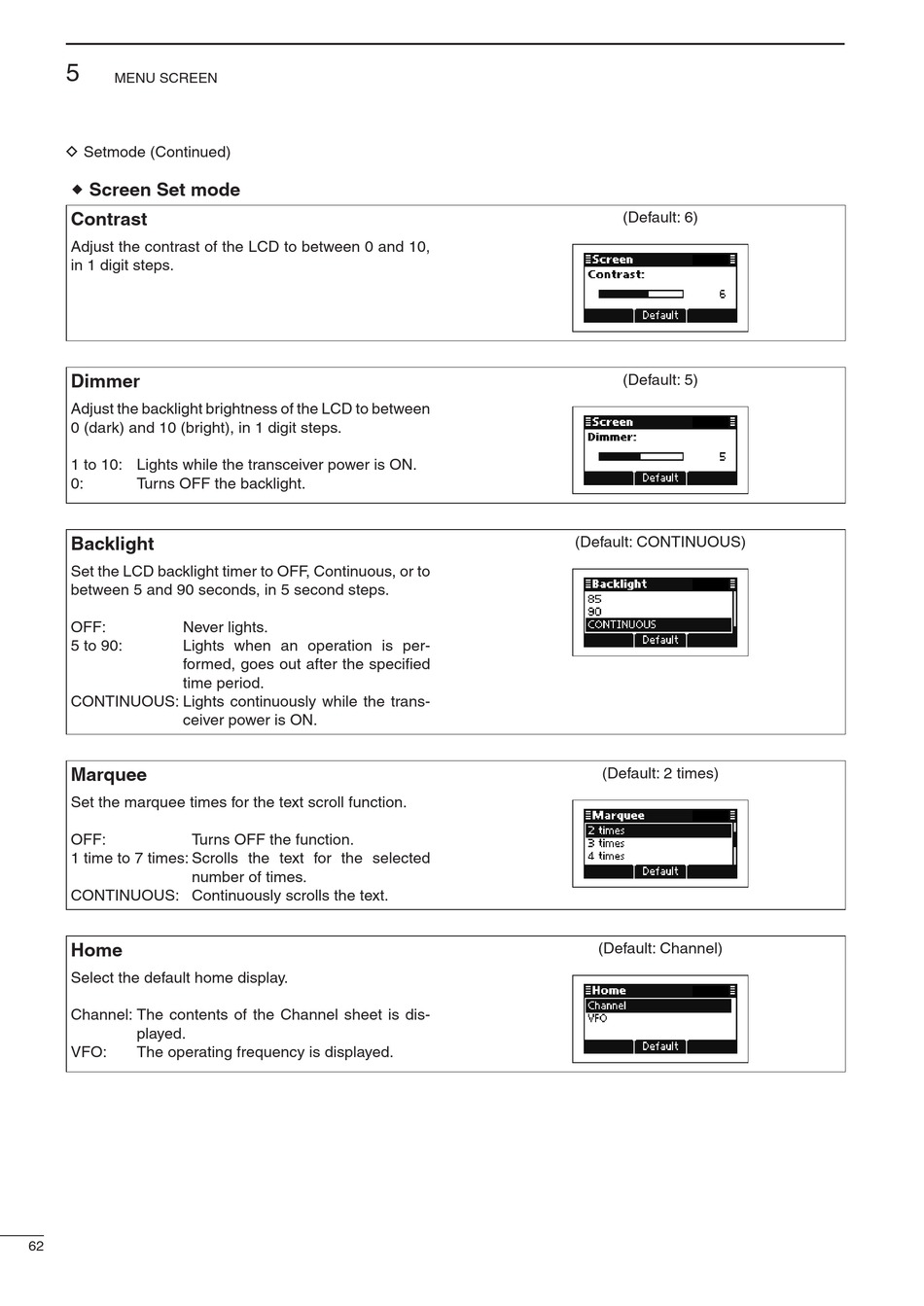

Icom IC-F8101 Instruction Manual page 68

5
MENU SCREEN
D Setmode (Continued)
 Screen Set mode
Contrast
Adjust the contrast of the LCD to between 0 and 10,
in 1 digit steps.
Dimmer
Adjust the backlight brightness of the LCD to between
0 (dark) and 10 (bright), in 1 digit steps.
1 to 10: Lights while the transceiver power is ON.
0: Turns OFF the backlight.
Backlight
Set the LCD backlight timer to OFF, Continuous, or to
between 5 and 90 seconds, in 5 second steps.
OFF: Never lights.
5 to 90: Lights when an operation is per-
formed, goes out after the specified
time period.
CONTINUOUS: Lights continuously while the trans-
ceiver power is ON.
Marquee
Set the marquee times for the text scroll function.
OFF: Turns OFF the function.
1 time to 7 times: Scrolls the text for the selected
number of times.
CONTINUOUS: Continuously scrolls the text.
Home
Select the default home display.
Channel: The contents of the Channel sheet is dis-
played.
VFO: The operating frequency is displayed.
62
(Default: 6)
(Default: 5)
(Default: CONTINUOUS)
(Default: 2 times)
(Default: Channel)
