4
SELCALL/ALE OPERATION
D

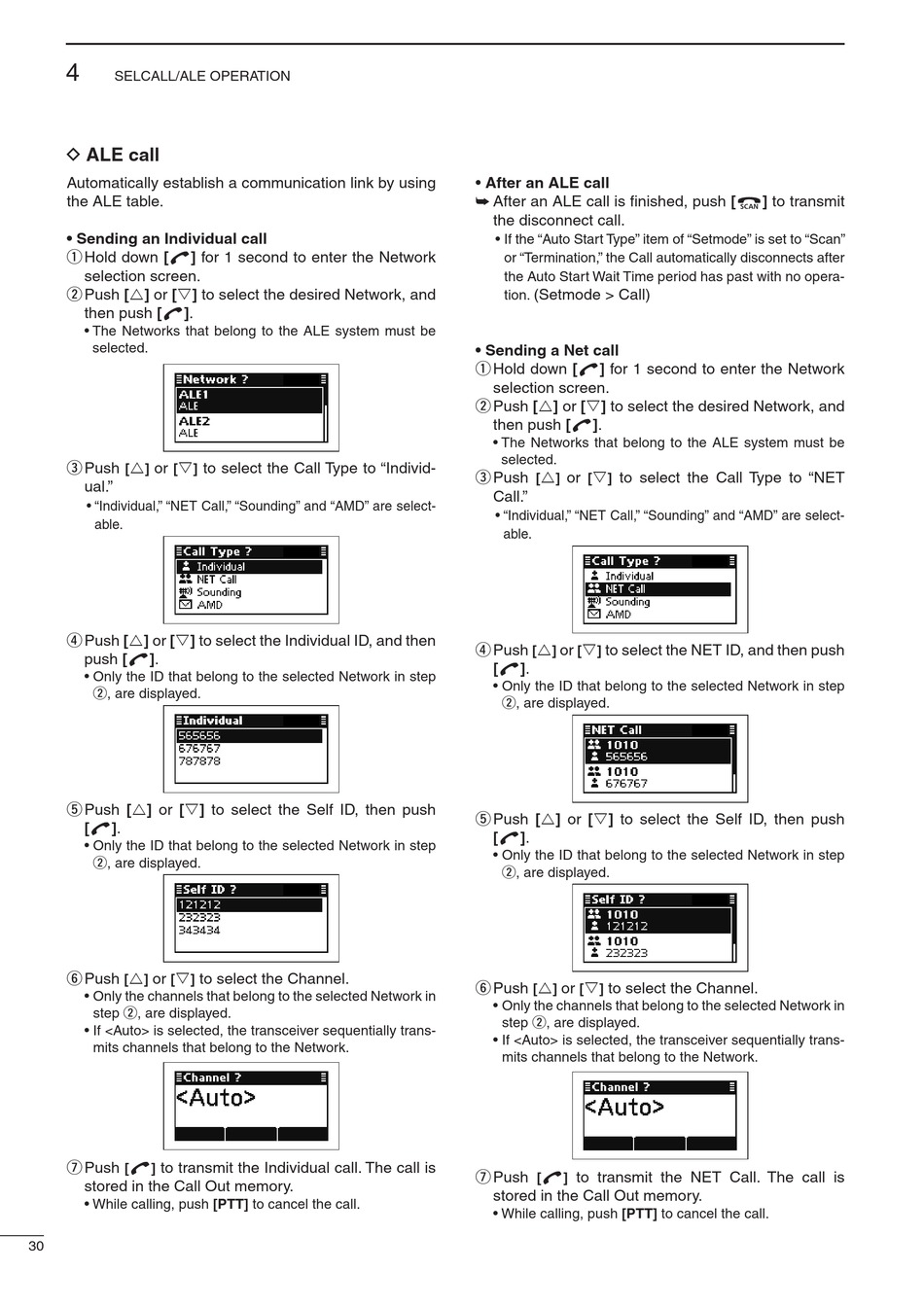

ALE call
Automatically establish a communication link by using
the ALE table.
• Sending an Individual call
[
] for 1 second to enter the Network
Hold down
q
selection screen.
Push
[r] or [s] to select the desired Network, and
w
then push [
].
• The Networks that belong to the ALE system must be
selected.
Push
r
or
s
to select the Call Type to "Individ-
e
[
]
[
]
ual."
• "Individual," "NET Call," "Sounding" and "AMD" are select-
able.
[r] or [s] to select the Individual ID, and then
Push
r
push [
].
• Only the ID that belong to the selected Network in step
w, are displayed.
[r] or [s] to select the Self ID, then push
Push
t
[
].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push
r
or
s
to select the Channel.
y
[
]
[
]
• Only the channels that belong to the selected Network in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits channels that belong to the Network.
Push
to transmit the Individual call. The call is
[
]
u
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
30
• After an ALE call
After an ALE call is finished, push
➥
the disconnect call.
• If the "Auto Start Type" item of "Setmode" is set to "Scan"
or "Termination," the Call automatically disconnects after
the Auto Start Wait Time period has past with no opera-
(Setmode > Call)
tion.
• Sending a Net call
[
] for 1 second to enter the Network
Hold down
q
selection screen.
Push
[r] or [s] to select the desired Network, and
w
then push [
].
• The Networks that belong to the ALE system must be
selected.
Push
r
or
s
to select the Call Type to "NET
e
[
]
[
]
Call."
• "Individual," "NET Call," "Sounding" and "AMD" are select-
able.
Push
r
or
s
to select the NET ID, and then push
r
[
]
[
]
[
].
• Only the ID that belong to the selected Network in step
w, are displayed.
[r] or [s] to select the Self ID, then push
Push
t
[
].
• Only the ID that belong to the selected Network in step
w, are displayed.
Push
r
or
s
to select the Channel.
y
[
]
[
]
• Only the channels that belong to the selected Network in
step w, are displayed.
• If <Auto> is selected, the transceiver sequentially trans-
mits channels that belong to the Network.
Push
to transmit the NET Call. The call is
u
[
]
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
[
] to transmit
