Connecting up
2 Connect the analog AUDIO OUT L/R
and VIDEO OUTPUT jacks on this player to
a set of analog audio and video inputs on
your AV receiver.
AV receiver
AUDIO OUT(2CH)
Y P
B L
IGITAL
COAXIAL
UDIO OUT
S R
P
OPTICAL R
VIDEO OUT
COMPONENT VIDEO OUT

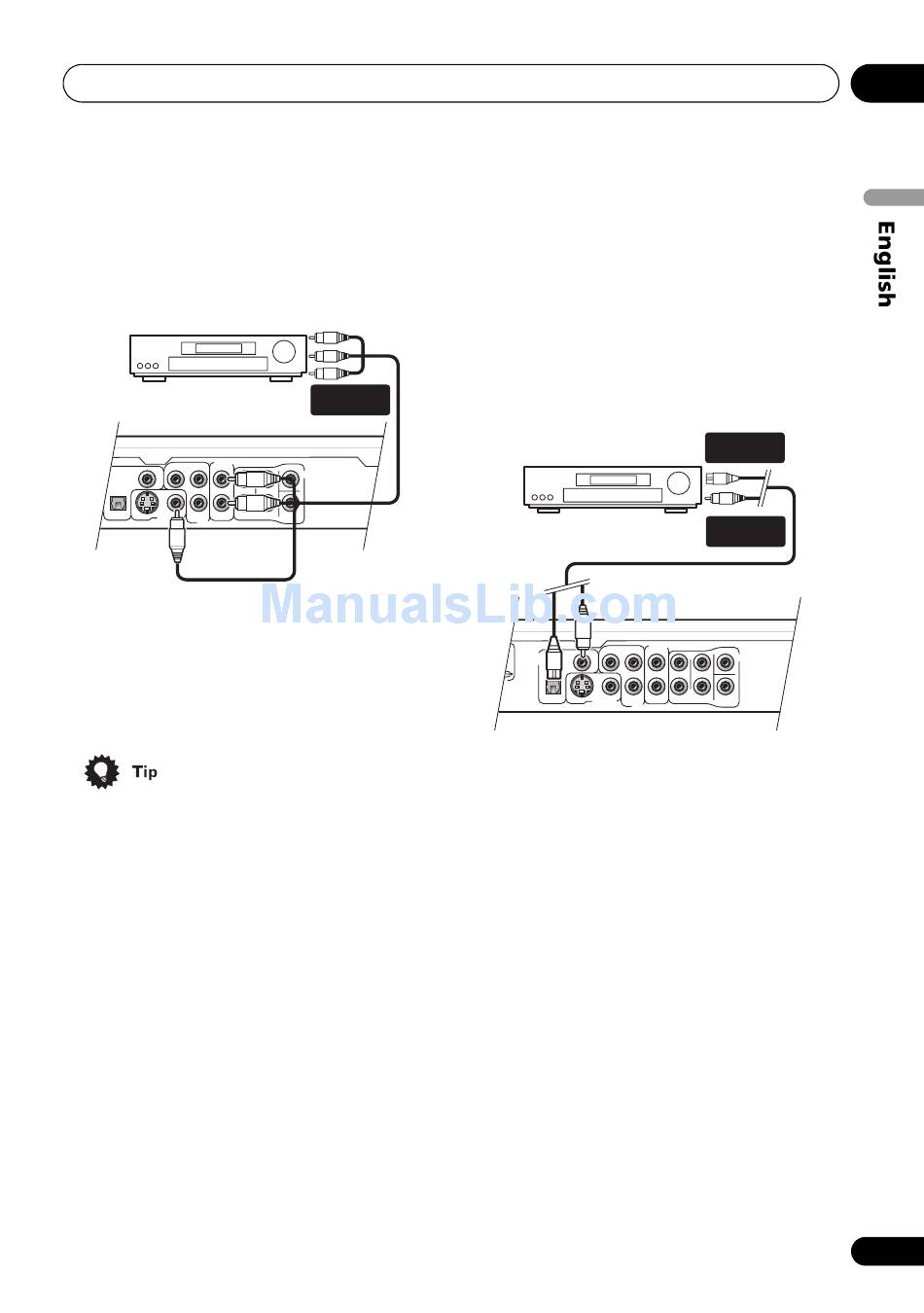

The diagram shows standard video
connections, but you can alternatively use the
SCART-type AV, S-Video or component video
connections if they're available.
3 Connect the AV receiver's video
output to a video input on your TV.
• You usually have to connect the same
kind of video cable between your DVD
player and AV receiver, and between your
AV receiver and TV.

Connecting to an AV receiver

To enjoy multichannel surround sound you
need to connect this player to an AV receiver
using a digital output. This player has both
coaxial and optical digital jacks; use
whichever is convenient.
In addition to a digital connection, we
recommend also connecting using the stereo
analog connection.
AUDIO/
VIDEO IN
CENTER
L
AUDIO OUT(5.1CH)
R
FRONT SURROND SUB
WOOFER
You'll probably also want to connect a video
output to your AV receiver. You can use any of
the video outputs available on this player (the
illustration shows a standard (composite)
connection).
1 Connect one of DIGITAL AUDIO OUT
jacks on this player to a digital input on
your AV receiver.
AV receiver
Y
P
B
DIGITAL COAXIAL
AUDIO OUT
iver
S P
OPTICAL R
VIDEO OUT
COMPONENT VIDEO OUT
This enables you to listen to multichannel
surround sound.
For an optical connection, use an optical
cable (not supplied) to connect the OPTICAL
DIGITAL AUDIO OUT jack to an optical input
on your AV receiver.
For a coaxial connection, use a coaxial cable
(similar to the supplied video cable) to
connect the COAXIAL DIGITAL AUDIO OUT
jack to a coaxial input on your AV receiver.
DIGITAL IN
(OPTICAL)
DIGITAL IN
(COAXIAL)
AUDIO OUT(2CH)
L
CENTER
L
AUDIO OUT(5.1CH)
R
R
FRONT SURROND SUB
WOOFER
