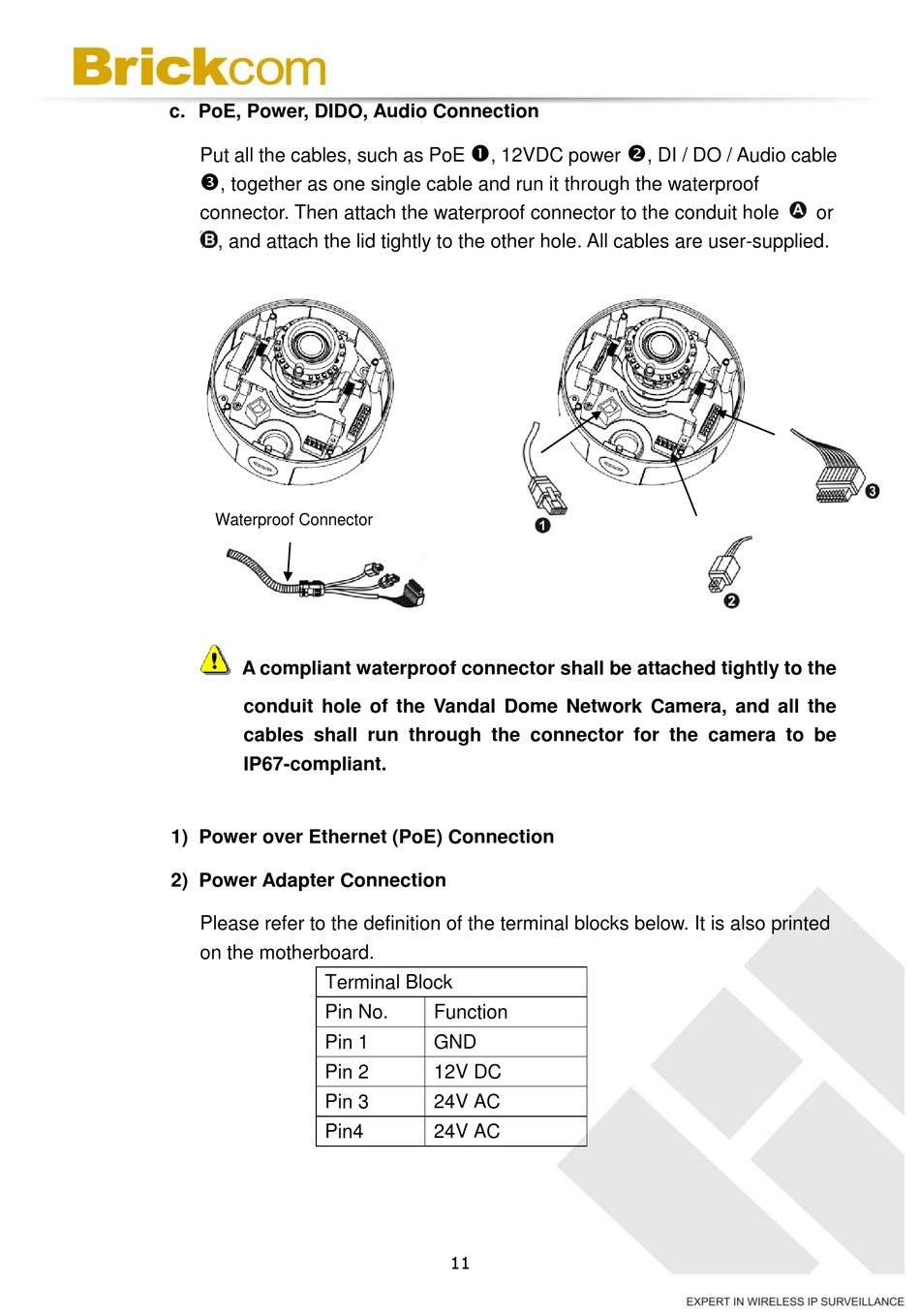

c. PoE, Power, DIDO, Audio Connection
Put all the cables, such as PoE

, together as one single cable and run it through the waterproof
connector. Then attach the waterproof connector to the conduit hole
, and attach the lid tightly to the other hole. All cables are user-supplied.
Waterproof Connector
A compliant waterproof connector shall be attached tightly to the
conduit hole of the Vandal Dome Network Camera, and all the
cables shall run through the connector for the camera to be
IP67-compliant.
1) Power over Ethernet (PoE) Connection
2) Power Adapter Connection
Please refer to the definition of the terminal blocks below. It is also printed
on the motherboard.
Terminal Block
Pin No.
Pin 1
Pin 2
Pin 3
Pin4

, 12VDC power
Function
GND
12V DC
24V AC
24V AC
11

, DI / DO / Audio cable
or
