Chapter 5 - Installation

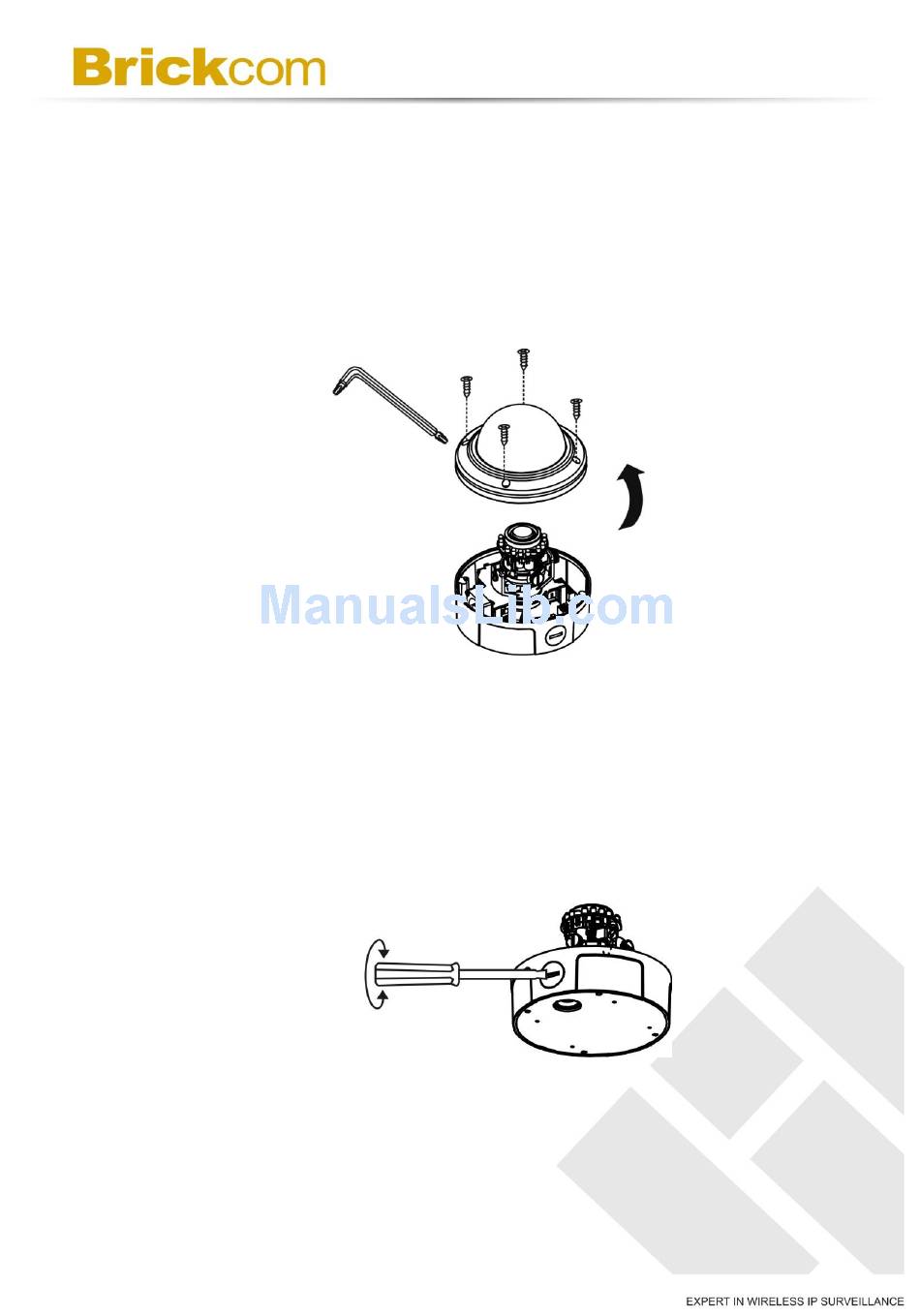

a. Remove the vandal dome cover:

Use the Allen Key to unscrew the four screws and remove the dome cover

from the camera device.

b. Open/Close The Conduit Hole:

The conduit hole allows the air to circulate through the camera device. By

default, a lid is attached to the conduit hole on the side of the camera

device, and the conduit hole on the bottom of camera device is open.

Please use the screw driver to screw/ unscrew the lid. Please note that

the lid and the waterproof connector must be tightly screwed to the conduit

hole to achieve IP67.
