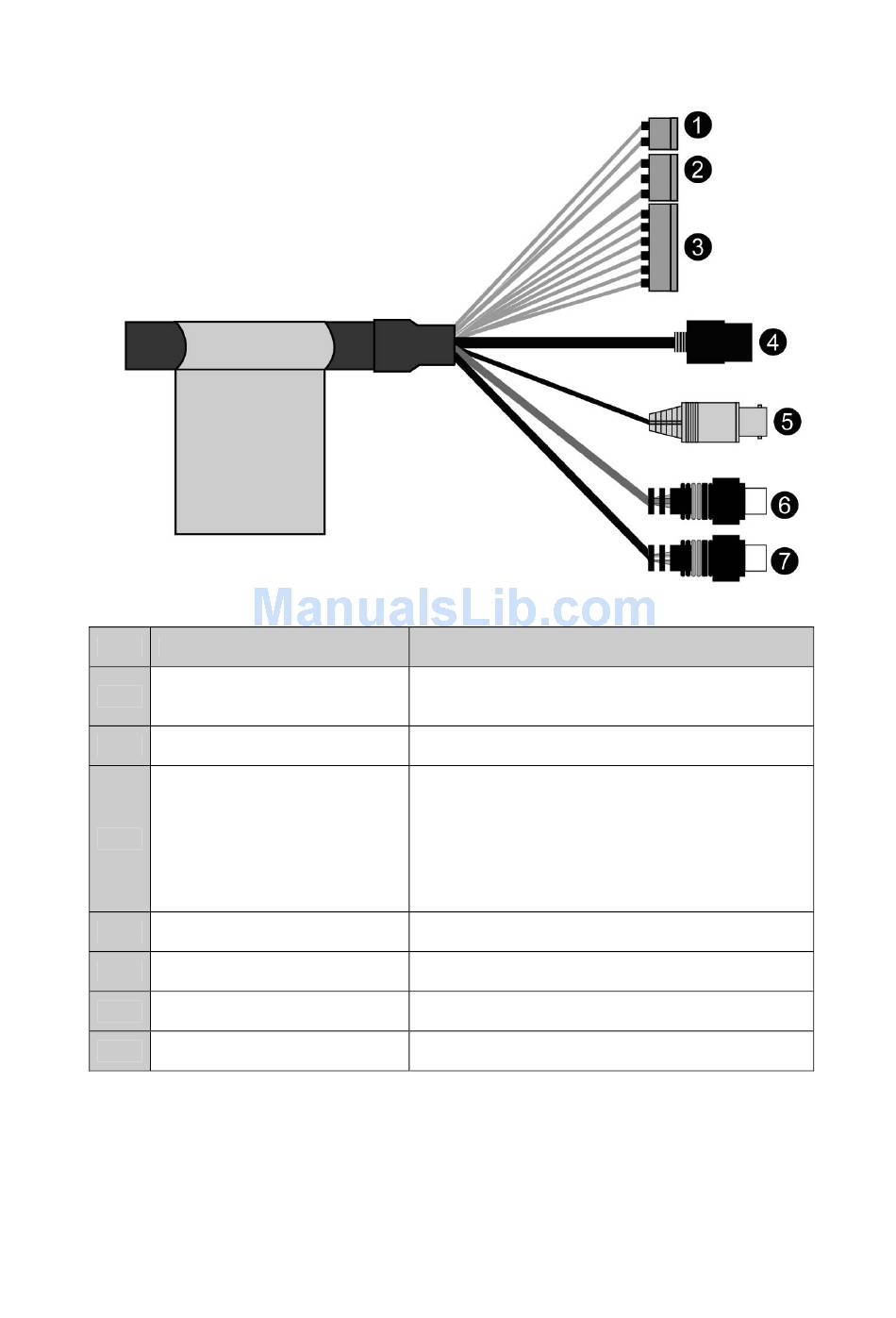

2.3 Basic Configuration of Dome Camera System
No.
Red: 12VDC+
1
White: 12VDC-
2
Pink, Brown
Black: GND
Gray: Alarm Input
Yellow: GND
3
Black&White: Alarm Output
Green: RS485+
Blue: RS485-
4
Black
5
Yellow
6
Red
7
White
The dome camera must be installed by qualified service personnel in accordance with all local
and federal electrical and building codes.
Wire Color
Description
Main Power: 2-Pin terminal
Heater Power(Option): 3-Pin terminal
Alarm Input/Output, RS485: 6-Pin terminal
Ethernet: RJ45 Modular Jack
Video Composite Output: BNC Jack
Audio line output: RCA Jack
Audio line input: RCA Jack
5
