8.4.2 Motion Detection

Motion can be detected by measuring changes in the speed or vector of an
object or objects in the monitored area. This section explains how to configure
the Network Camera to enable motion detection.

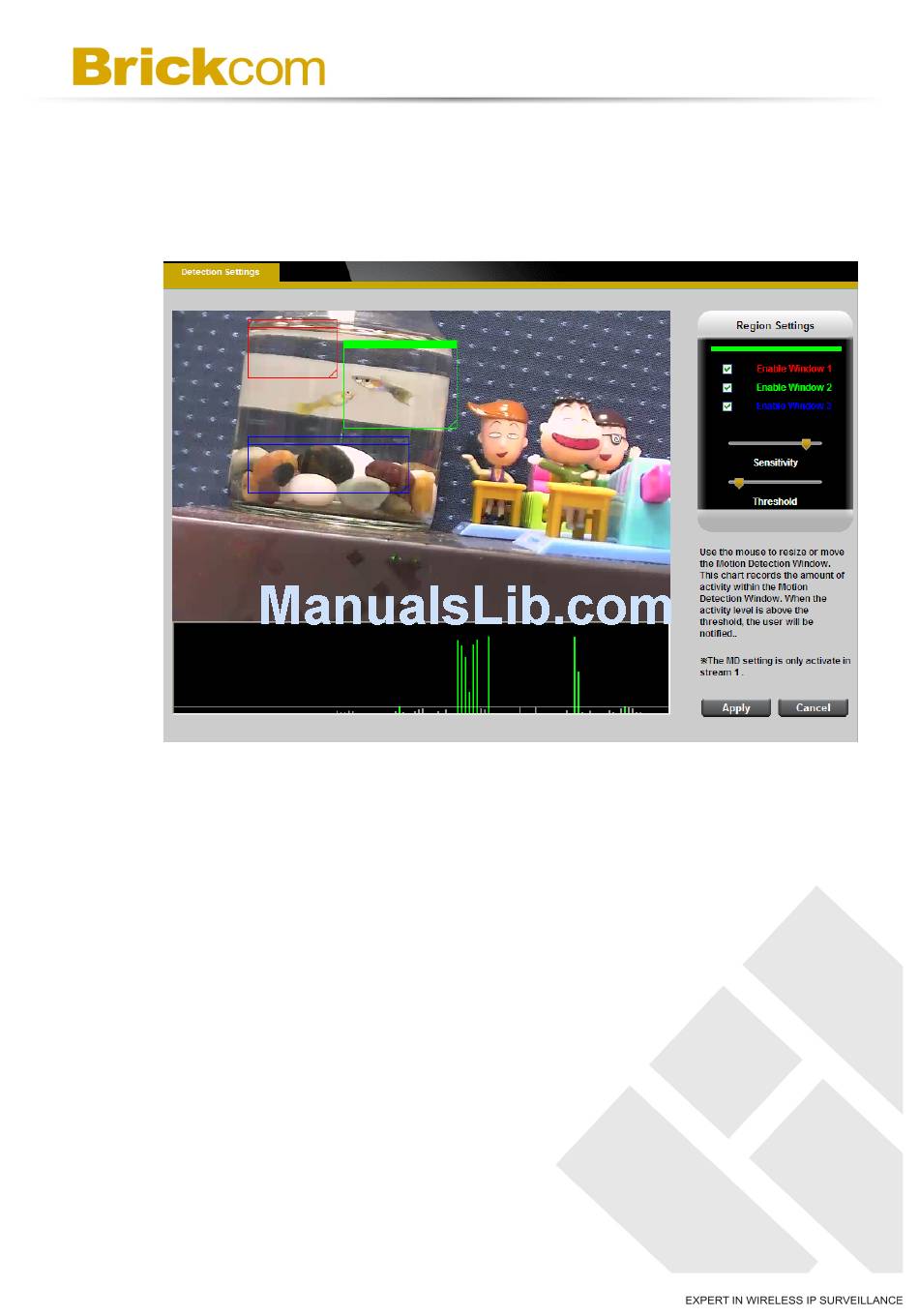

a. Detection Setting – Use this setting to enable and define the motion
detection windows. The user can defined up to three areas on the live
view window for motion detection.
i. Select <Window1>, <Window2>, or <Window3> to adjust the
motion detection window.
ii. Check the box to enable the window.
iii. Use the mouse to resize or move the motion detection window.
iv. Adjust the "Sensitivity" level. Lower sensitivity levels will result in
more activity needed to trigger an event.
v. Adjust the "Threshold" to change the threshold level. The higher
the threshold, the larger objects need to be to trigger an event.
55
