Chapter 5 - Installation
5.1 Hardware Installation

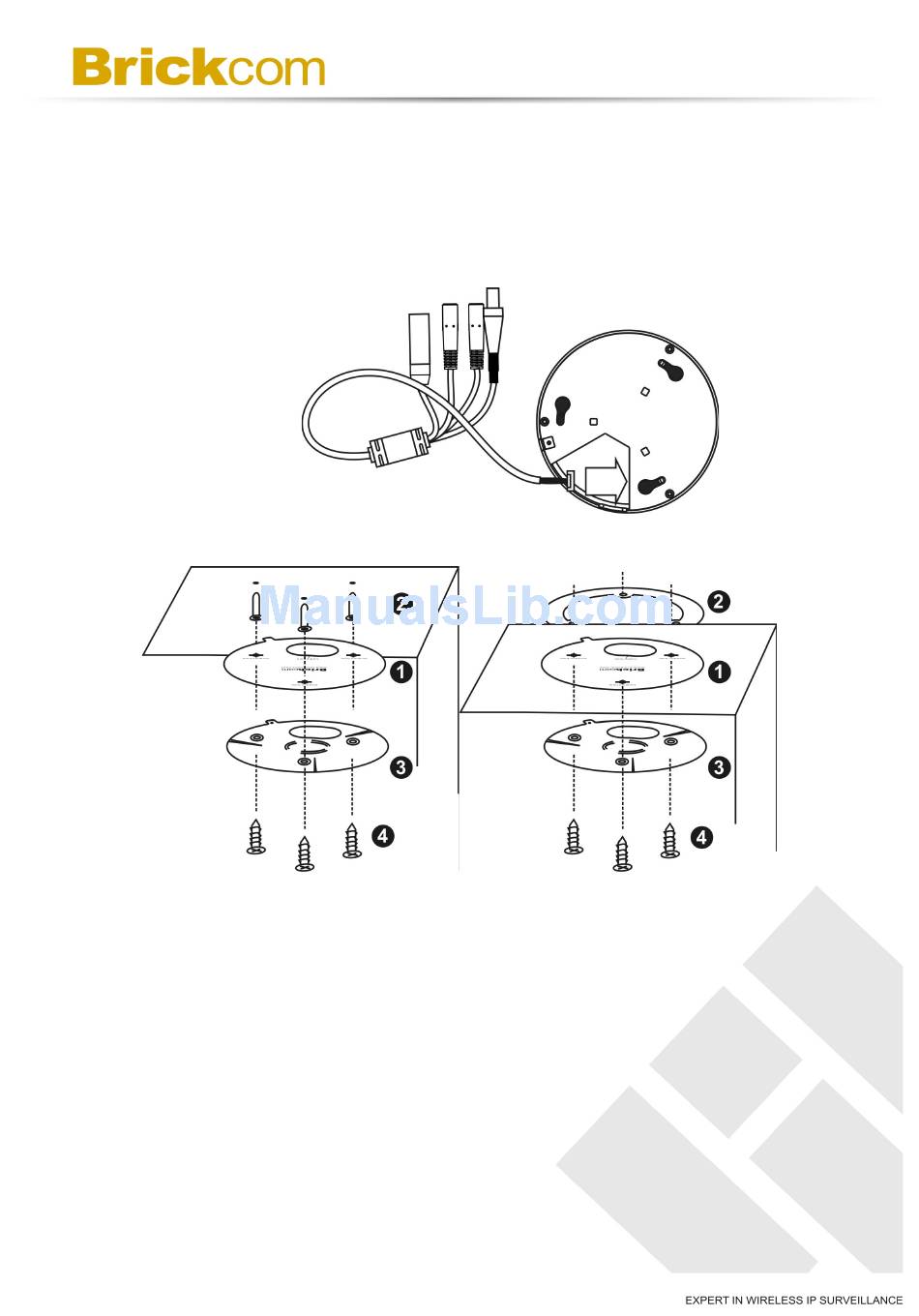

A. Connect the supplied I/O cable to the camera.
B. Install the Mounting Kit
Hard Ceiling Mount
1) Choose a location on the wall or ceiling to place the camera. Attach
the location sticker to the desired spot. Drill holes through the three
location holes and cable hole on the sticker.
2) For Hard Ceiling Mount, hammer the three plastic anchors that are
provided into the three location holes.
For Soft Ceiling Mount, place the hollow plate on the back side of
the ceiling and align the three holes on the plate with the screw
location holes.
Soft Ceiling Mount
7
